Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide 319
Replacement Parts
Assemblies and Cables

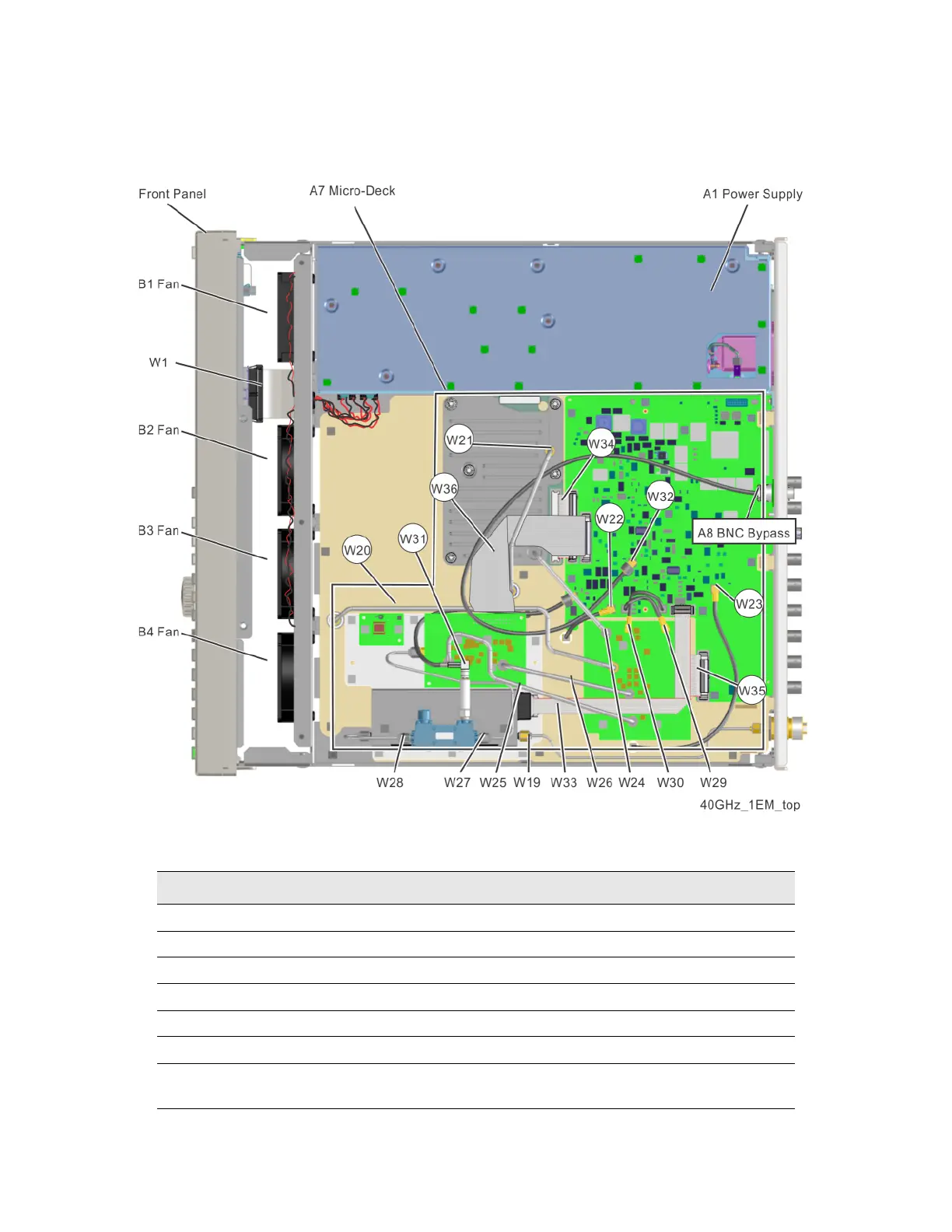

Figure 14-18 Assemblies Top View - N5173B/83B (Options 532/540, 1EM)
Description Part Number
Front Panel see Table 14-1
A1 Power Supply Assembly N5180-60414
A7 Micro-Deck Assembly (N5173B, N5183B) see Table 14-1
A8 BNC Bypass Board N5173B, N5183B E8251-63665
B1 thru B4 Fan Assembly (each) N5180-60433
W1, Ribbon Cable, A3 RF Assy P5 to A6A1 Front Panel Interface J10 N5180-60183
W19, Semi-Rigid Cable, A3 RF Assy J4000 to Rear Panel RF Output
(Option 1EM)
see Table 14-1
