Service and Utility Menus
Boot Service Menu
Boot Service Menu
The boot service menu is accessed when the instrument is first turned on and
allows the selection of several service related utilities. To enter the boot service
menu:
1. Turn the instrument off by using the front panel power button.
2. Once the instrument has turned off press and hold the front panel Preset
key.
3. While holding the Preset key, press and release the power button to turn
the instrument back on.
4. Continue to hold the Preset key for 10 seconds after pressing the power
button, then release it.
5. After approximately 30 seconds the boot Service Menu will appear, as
shown in Figure 5-1.
6. Use the front panel up and down arrow keys to navigate the menu and
press Select when the desired function is highlighted.

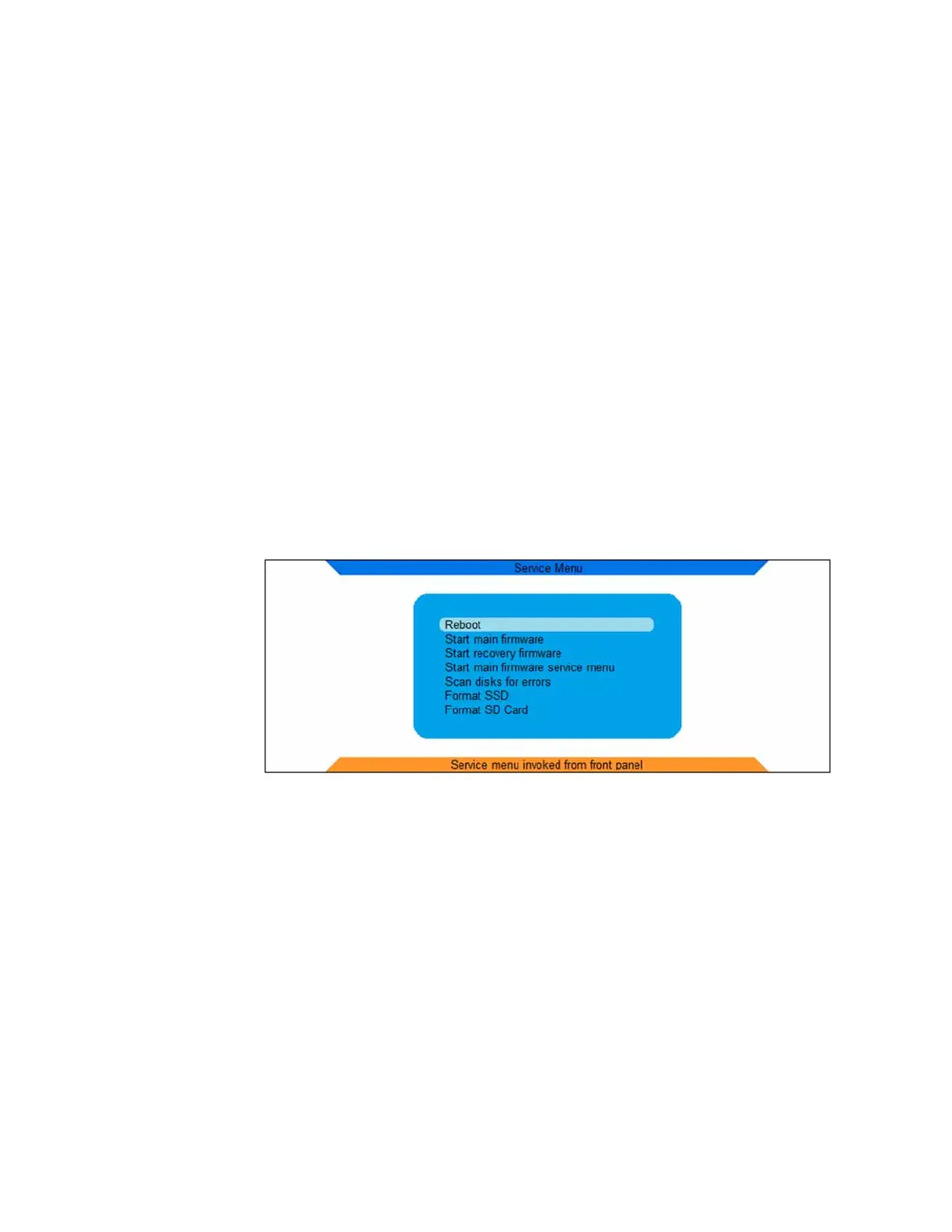

Figure 5-1 Service Boot Menu
Menu Options
Reboot
Starts the instrument boot process over from the beginning.
Start main firmware
Continues the instrument boot process from where it left off to enter the
Service Menu.
Start recovery firmware
The recovery firmware is used for recovery of corrupted firmware and/or FPGA
images. When selected, this will start the firmware with a minimal amount of
software and drivers loaded.
To Next Page
