Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide 107
Service and Utility Menus
Utility Service Menu
Utility Service Menu
The Utility menu provides access to many different functions, not all are service
related. In this section, only the service related functions will be covered.
Information on the rest can be found in the instrument User’s Guide.

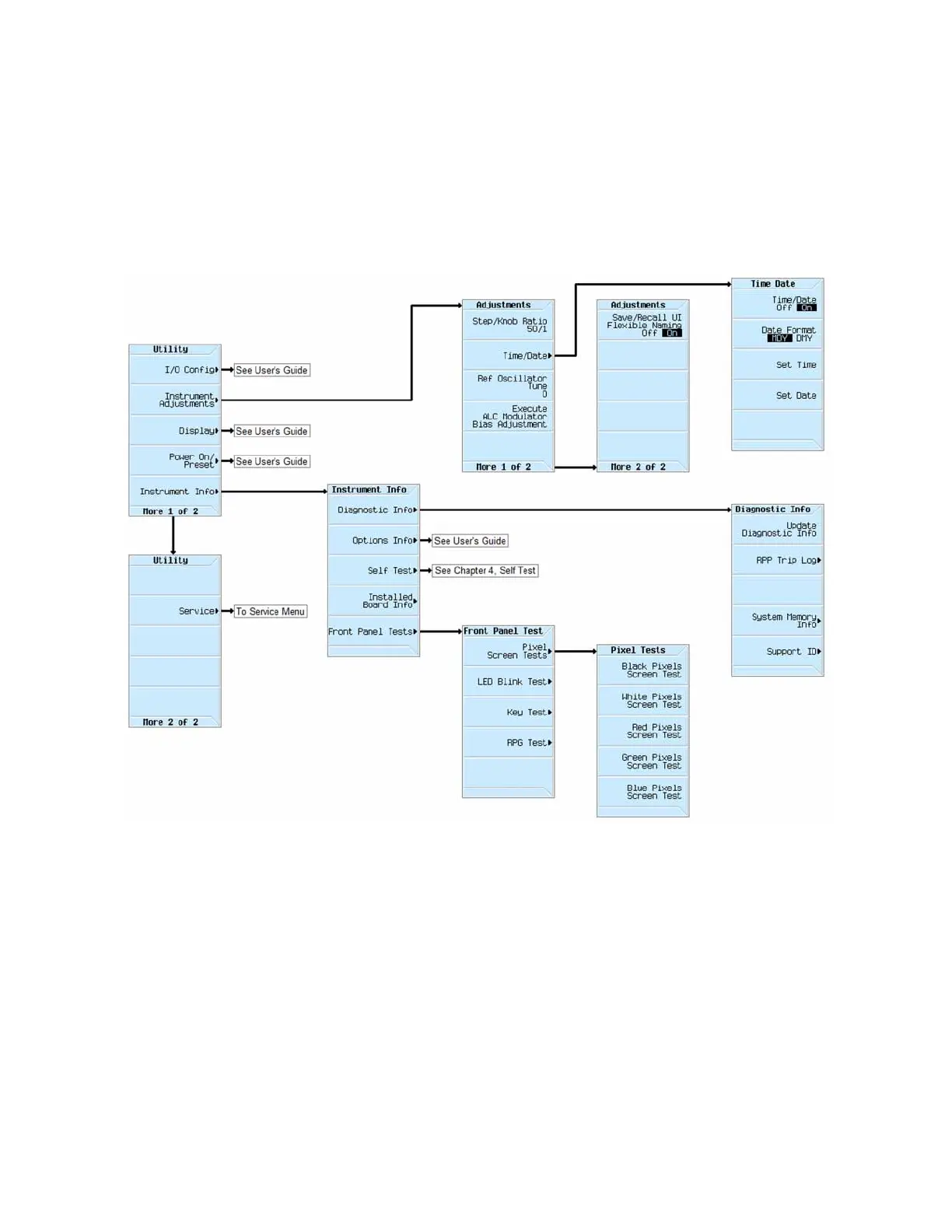

Figure 5-8 Utility Menu
I/O Config
Please see the instrument User’s Guide for detailed information on the use of
the menu.
Instrument Adjustments
The functions in the Instrument Adjustments menu are meant for the user to
have access to certain instrument settings. These include:
Step / Knob Ratio
This is for user preference. The setting is persistent.
To Next Page
