Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide 311
Replacement Parts
Assemblies and Cables

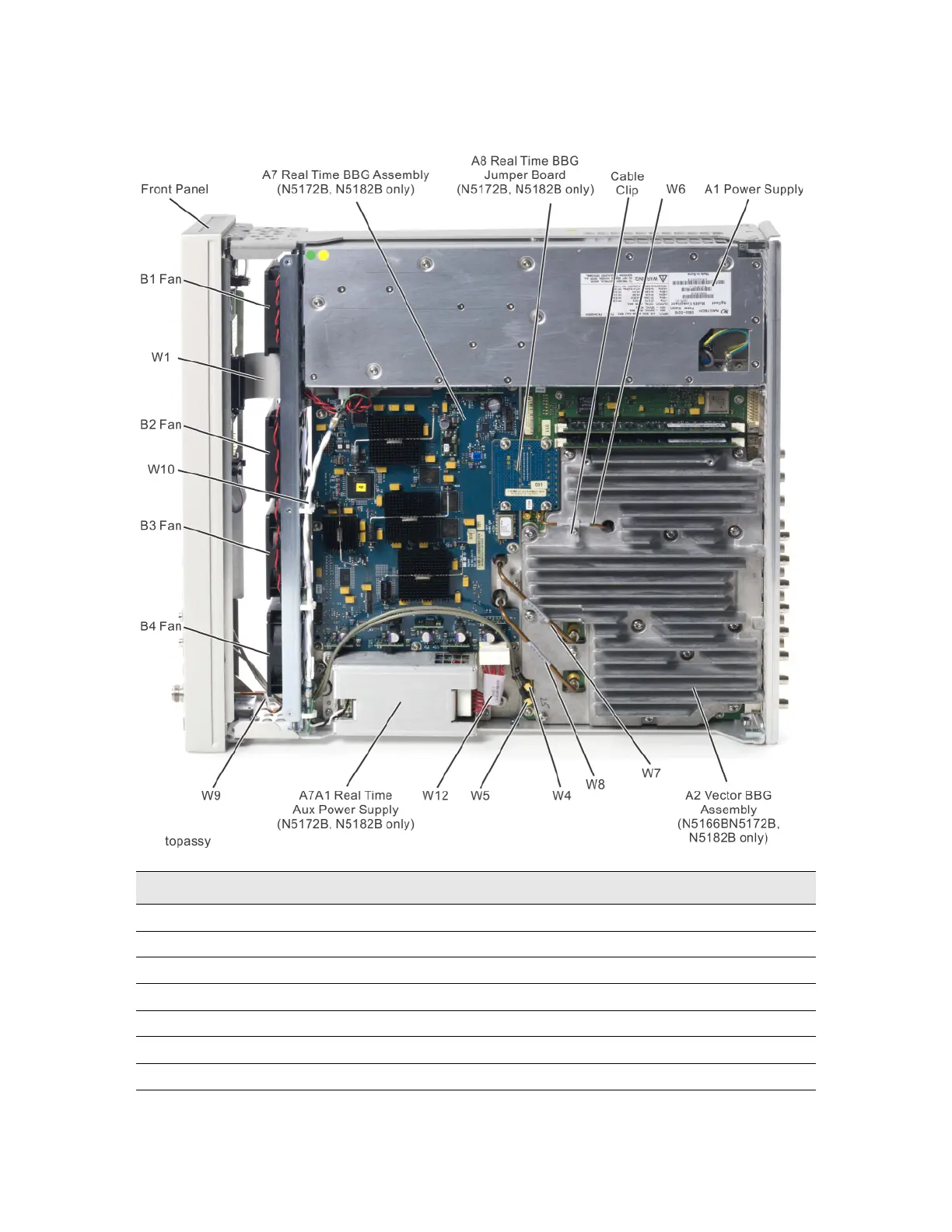

Figure 14-14 Assemblies Top View - N5166B, N5171B/72B/81B/82B
Description Part Number
Front Panel see Table 14-1
A1 Power Supply Assembly N5180-60414
A2 Vector BBG Assembly N5166B, N5172B, N5182B N5180-60415
A7 Real Time BBG Assembly N5172B, N5182B, Option 660 only N5180-60429
A7A1 Real Time Aux Power Supply N5172B, N5182B, Option 660 N5180-60430
A8 Real Time BBG Jumper Board N5172B, N5182B, Option 660 N5180-60432
B1 thru B4 Fan Assembly (each) N5180-60433
