298 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Replacement Parts
Hardware

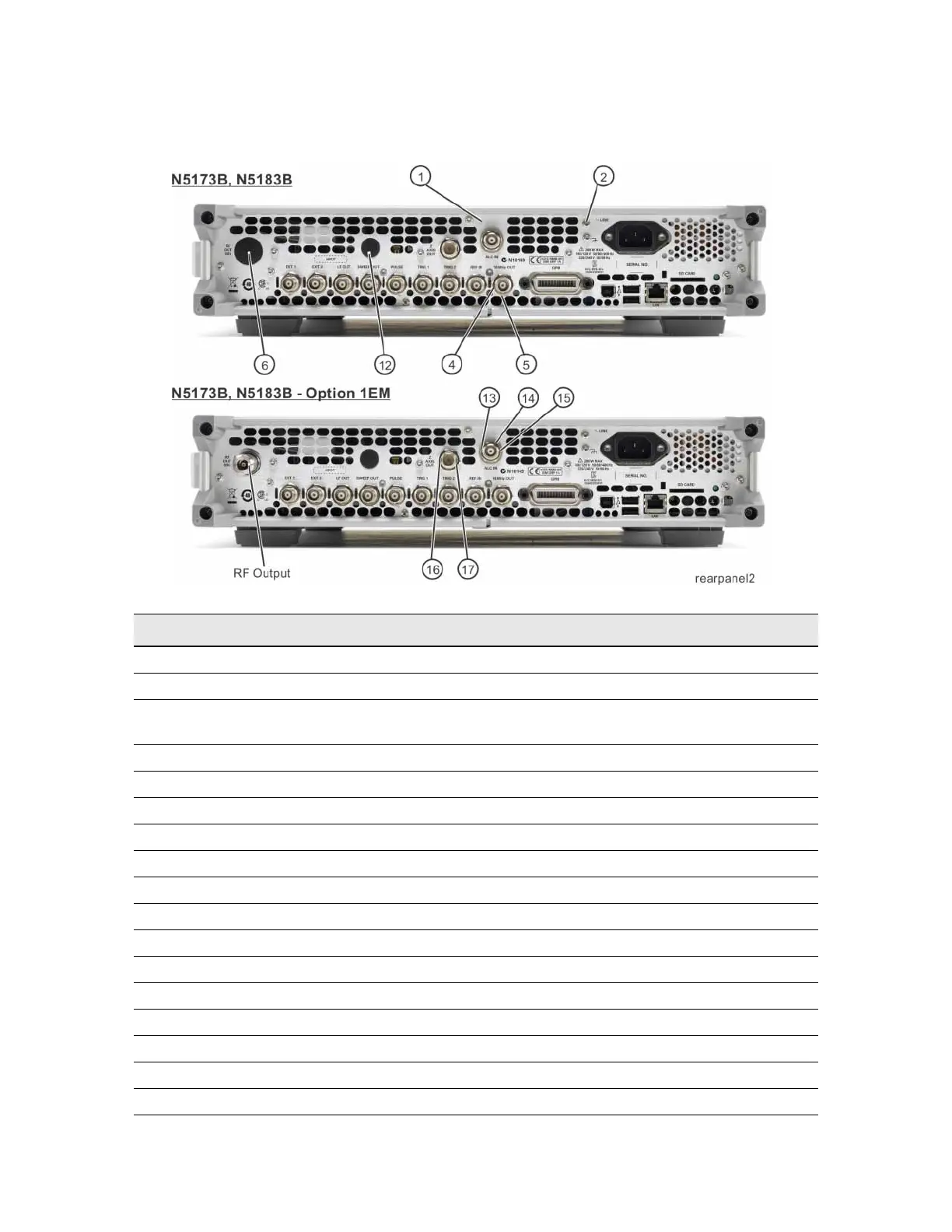

Figure 14-3 Rear Panel View - N5173B/83B
Item Description Part Number
1 Rear Panel see Table 14-1
2 Screw, machine M3.0 x 8 0515-0372
3 Screw-Machine Pan-HD Torx-T8 M2.5 x 0.45 6mm-LG
(N5166B/N5172B/N5182B only)
0515-0366
4 Lock washer 2190-0068
5 Hex nut 2950-0054
6 Rear Panel Hole Plug 6960-0517
7 LO IN Rear Panel Connector assembly (Option 012) 1250-1666
8 W16 LO OUT to LO IN Semi-Rigid Jumper Cable (Option 012) N5180-20178
9 LO OUT Rear Panel Connector assembly (Option 012) 1250-1666
10 DAC CLK IN Rear Panel Connector assembly (Option 012) 1250-1666
11 Screw, machine 90-DEG-FLT-HD Torx-T10 M3 x 0.5 6mm-LG 0515-1227
12 Rear Panel Hole Plug 6960-0095
13 Washer 00310-48801
14 Lock Washer 2190-0102
15 Hex Nut 2950-0035
16 Washer 2190-0068
17 Hex Nut 2950-0054
To Next Page
