406 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Assembly Replacement
Rear Panel (N5166B, N5172B, and N5182B)
3. Recommended torque for all other screws is 9 in–lbs.
4. Recommended torque for all BNC connectors is 21 in–lbs.

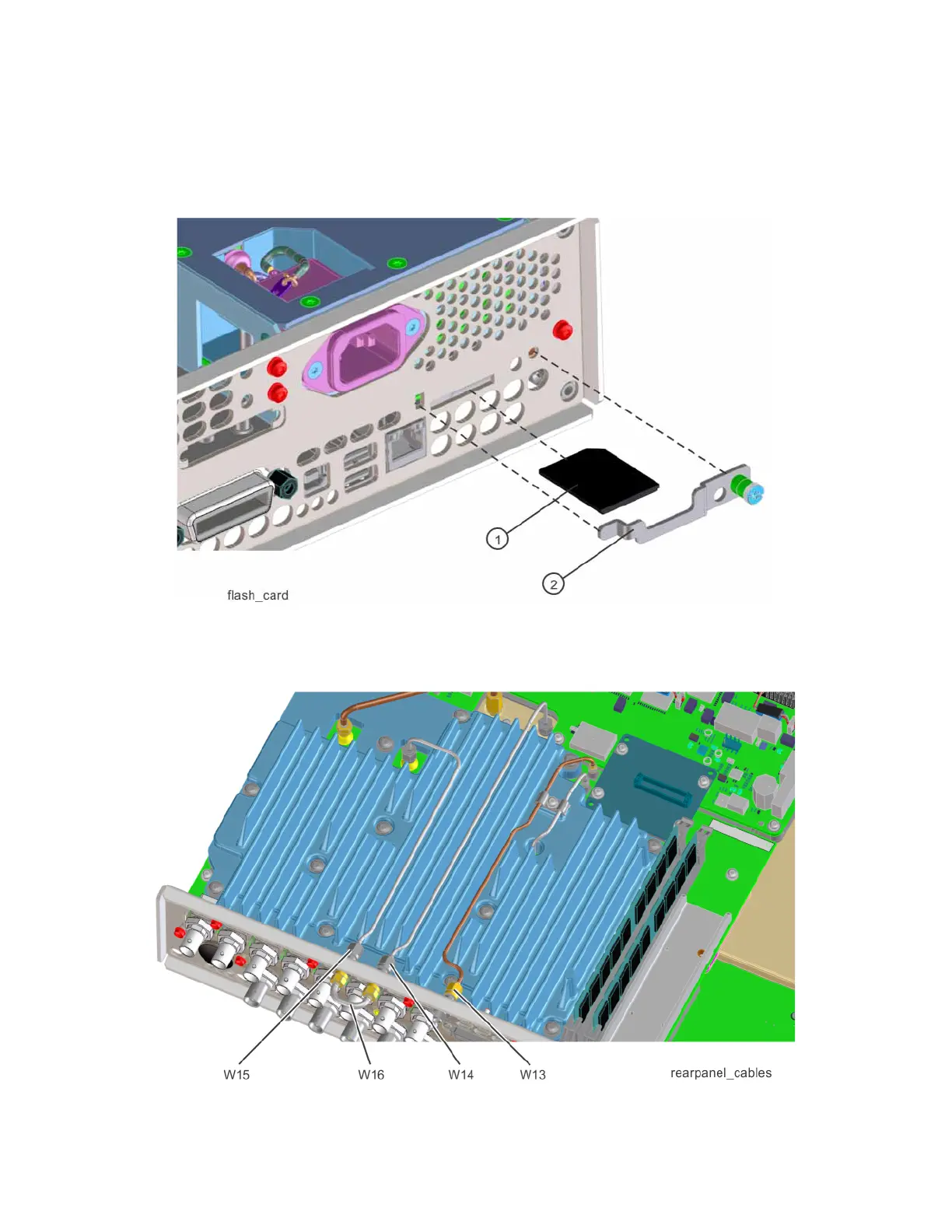

Figure 15-42 Flash Memory Card and Cover Removal
Figure 15-43 N5172B/82B Option 012 Rear Panel Cables
