104 Keysight Agile Signal Generator Service Guide
Assembly Replacement
6. Refer to Figure 3-7. Before removing the following cables, it is necessary
to identify them with a label of some kind in order to reinstall them in the
correct location. Unplug cables W1, W2, W3, W4, W5, and W6 from the
Microdeck.

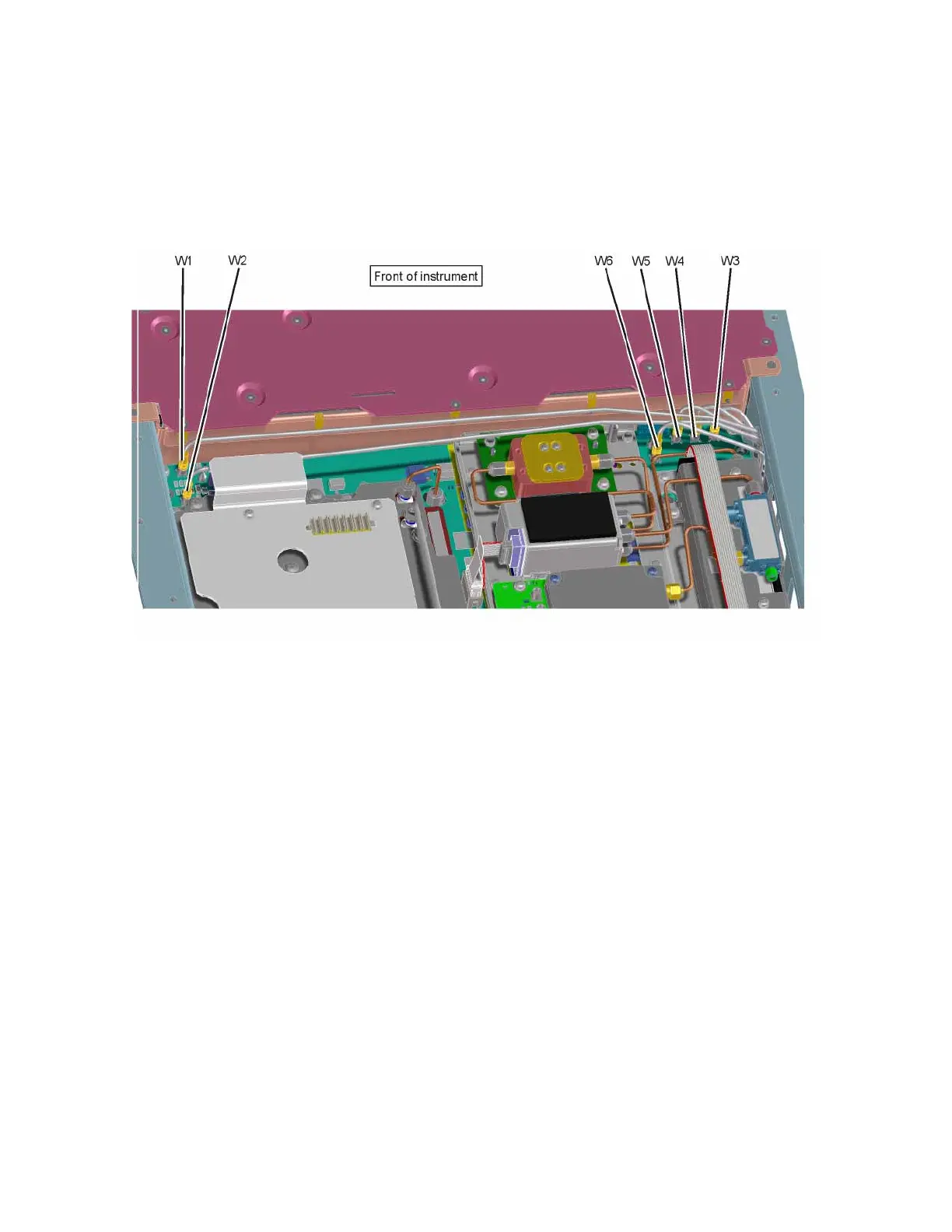

Figure 3-7 Microdeck Cables
