System Settings
System Configuration
Figure 29-9
How to make Voltage Source settings
—Press System 7
—Then System Configuration.
—Then Voltage Source
.
—Then Source ON OFF
to enable and disable the voltage source output.
— Then Voltage x.xx V Using arrows, the rotary knob, or numeric
keypad, enter a value between 0.001 and 32 volts.
— Clear Overload
If the voltage source becomes ‘TRIPPED’ press to re-enable
the voltage source output. Then set Source ON
.
— Status Line ON OFF
Turn ON and OFF the voltage source status line that
appears near the top of the screen. The status line is always ON while
making Voltage Source settings.
— Hi Impd. Load ON OFF
Enables/Disables low current use (Step) and high
current use (Ramp). Default = OFF (Low current (Step)).
Security Level
For security reasons, you can prevent frequency information from appearing on
the FieldFox while in SA, NA, or CAT modes.
How to set Security Level
—Press System 7
—Then System Configuration
—Then Security Level
— Then choose from the following:
— None
All frequency settings are visible.

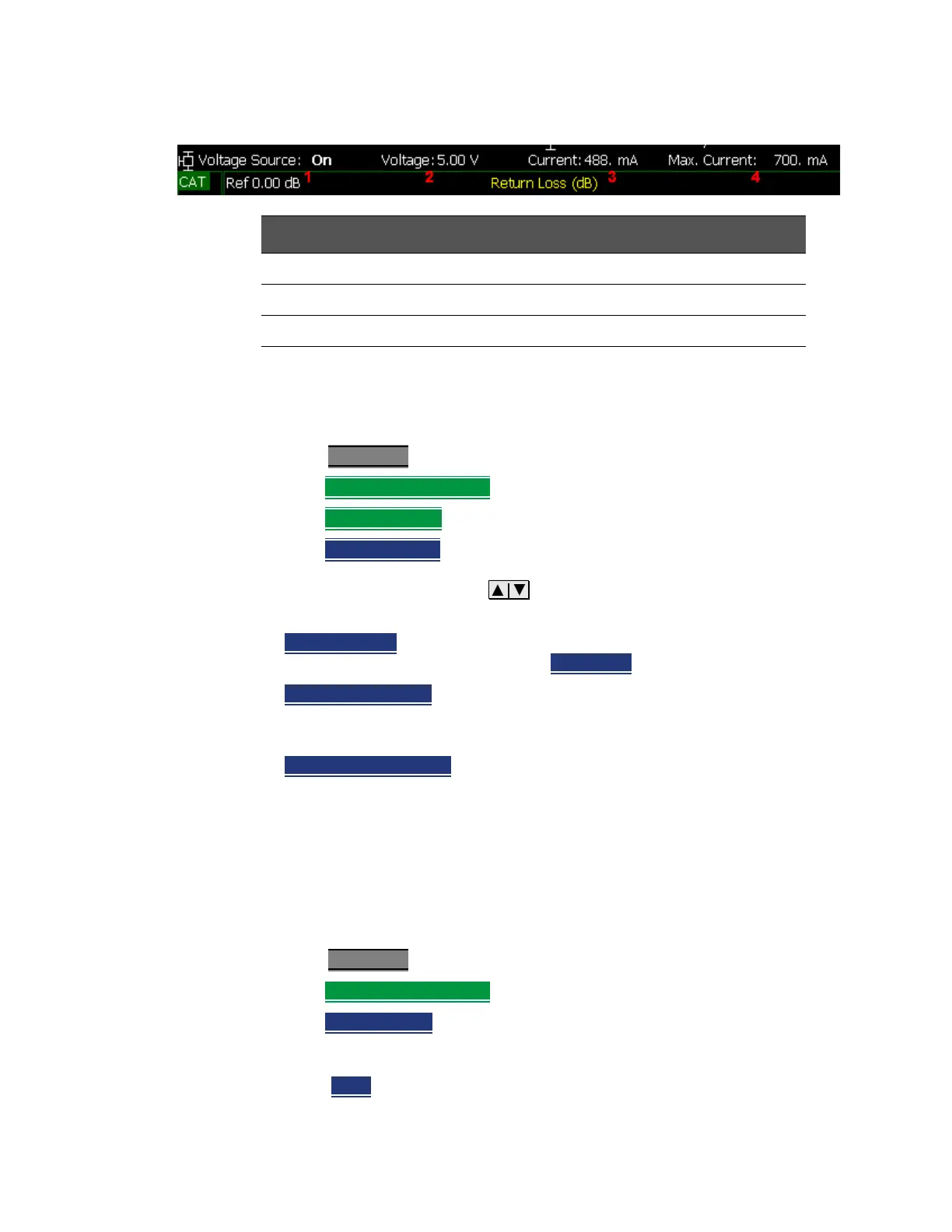

Voltage Source Status Line
1. Voltage source state: ON, OFF, TRIPPED.
2. Voltage setting from 1.00 V to 32.00 V with.01 V resolution.
3. Current: The amount of current (in Amperes) being drawn from the source.
4. Max Current: A conservative estimate of maximum current possible given
the present voltage setting. The actual ‘trip’ level may be slightly different.
