Setting Up the Oscilloscope 1
Keysight Infiniium 90000A Series Oscilloscopes User’s Guide 15
Positioning for Proper Airflow
Position the oscilloscope where it will have sufficient clearance for airflow around
the back and sides. If you install the oscilloscope into an N5470A rack, refer to the
Keysight N5470A 90000, 90000 X, and V-Series Oscilloscope Rack Mount Kit
Installation Guide at www.keysight.com/find/90000a-manual.

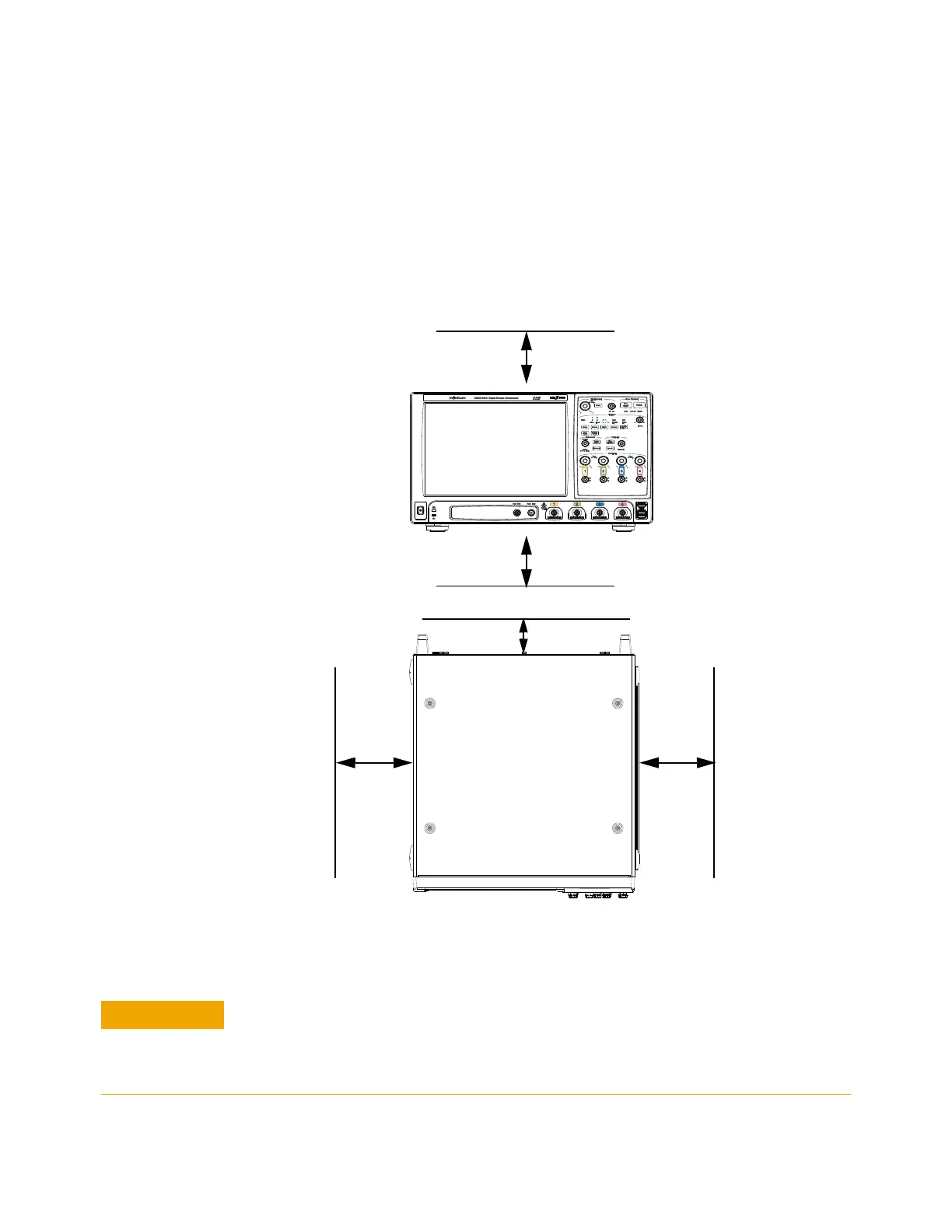

Figure 1 Positioning the 90000A Series oscilloscope with sufficient clearance
No clearance is required
underneath the oscilloscope
The airflow requirement is 300 cfm
Minimum 85 mm Minimum 85 mm
Minimum 39 mm
Top View
Rear Panel
No clearance is required
on top of the oscilloscope
VENTILATION REQUIREMENTS: When installing the instrument(s) into a cabinet,
consider the convection flow into and out of the cabinet. Also consider the individual
instruments, to avoid having the heated discharge of one instrument become the
cooling intake air for another instrument.
