250 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
15 Measurements

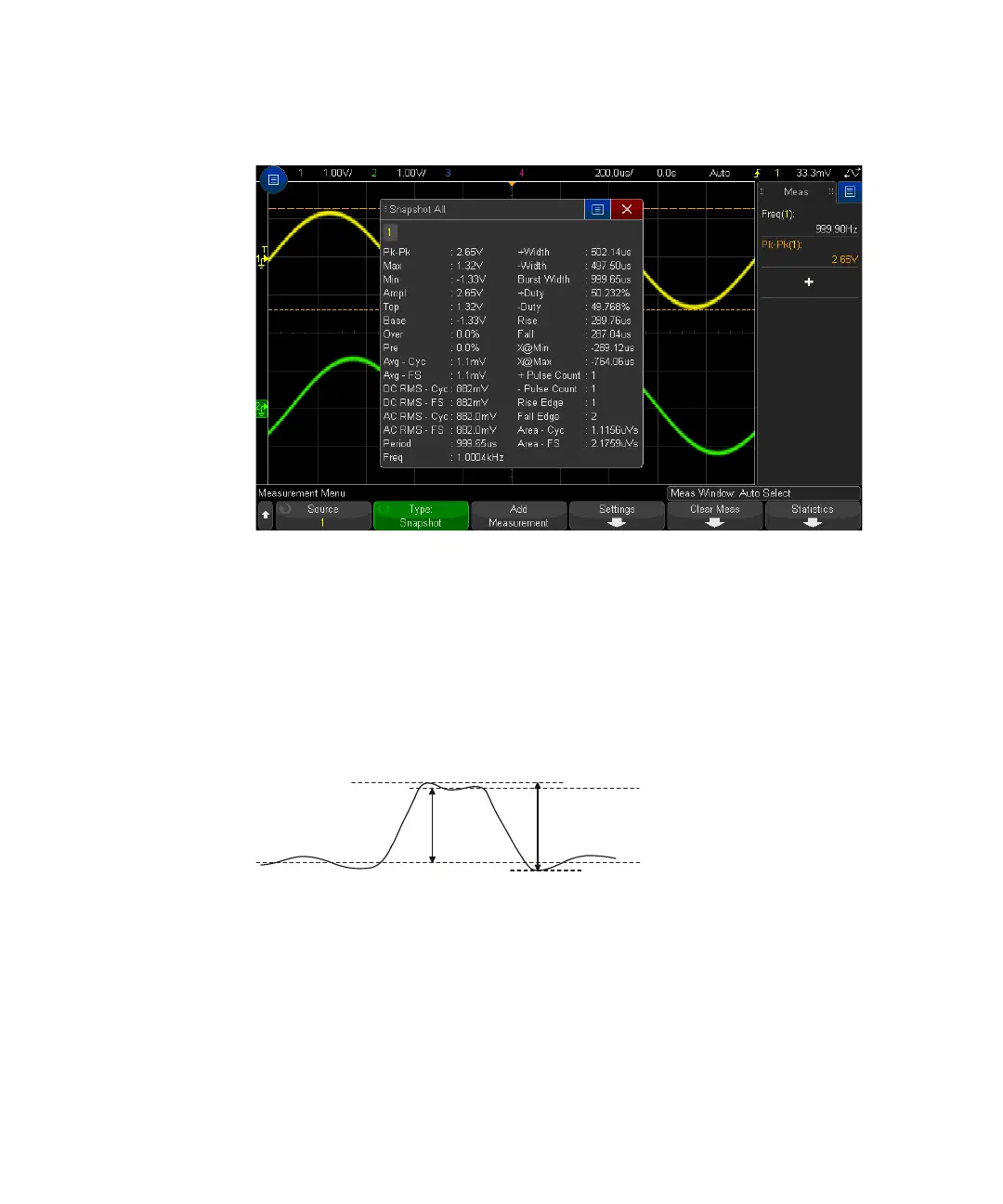

You can also configure the [Quick Action] key to display the Snapshot All popup.
See “Configuring the [Quick Action] Key" on page 357.
Voltage Measurements
The following figure shows the voltage measurement points.
Measurement units for each input channel can be set to Volts or Amps using the
channel Probe Units softkey. See “To specify the channel units" on page 85.
The units of math waveforms are described in “Units for Math Waveforms" on
page 101.
• “Peak-Peak" on page 251
• “Maximum" on page 251
Amplitude
Maximum
Minimum
Base
Top
Peak-Peak
