486 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
31 MIL-STD-1553/ARINC 429 Triggering and Serial Decode

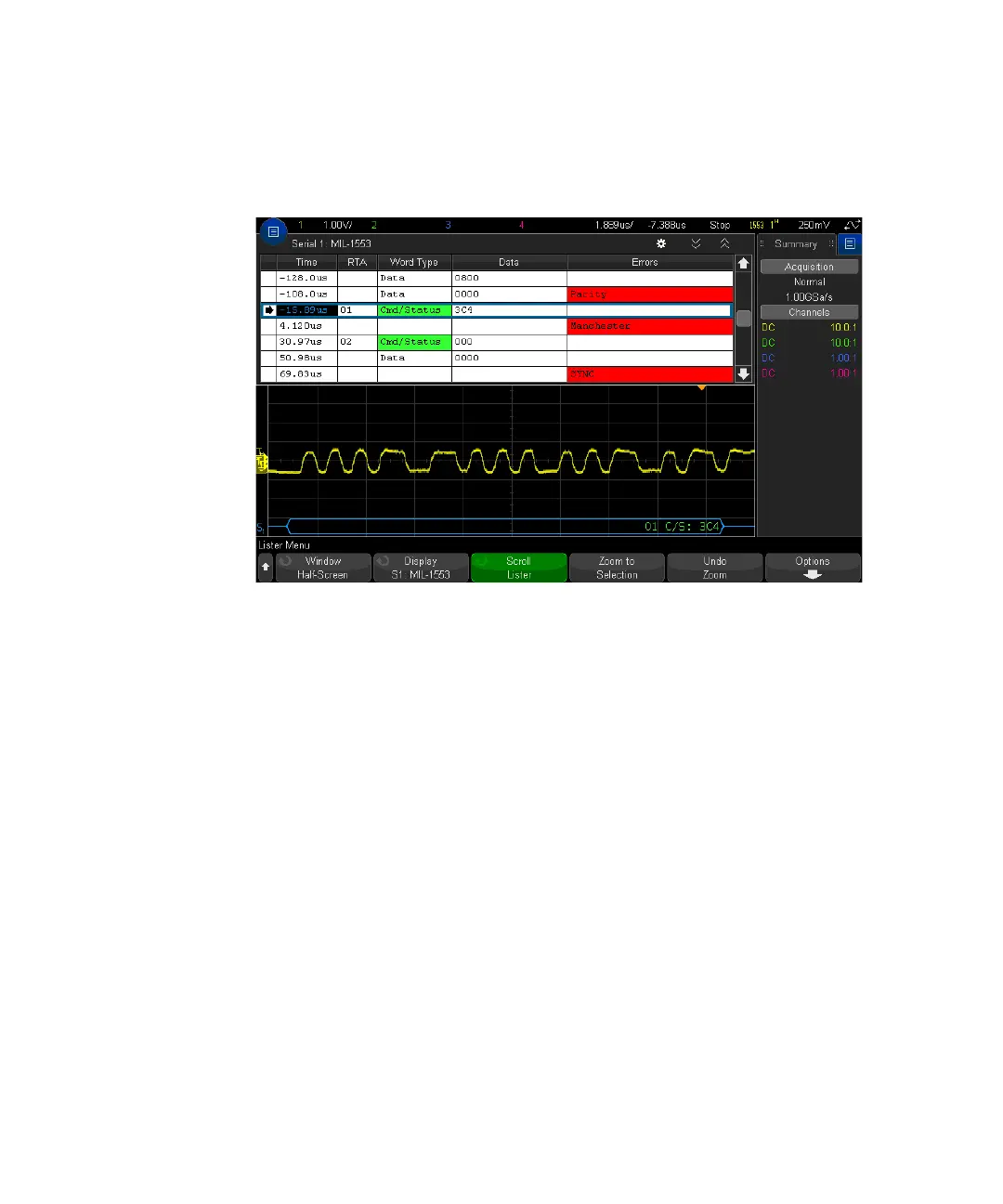

Interpreting MIL-STD-1553 Lister Data
In addition to the standard Time column, the MIL-STD-1553 Lister contains these
columns:
• RTA — displays the Remote Terminal Address for Command/Status words,
nothing for Data words.
• Word Type — "Cmd/Status" for Command/Status words, "Data" for Data words.
For Command/Status words the background color is green to match the
decode text color.
• Data — the 11 bits after the RTA for Command/Status words, or the 16 bits of a
Data word.
• Errors — "Sync", "Parity", or "Manchester" errors as appropriate. The
background color is red to indicate an error.
Aliased data is highlighted in pink. When this happens, decrease the horizontal
time/div setting and run again.
