472 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
30 Manchester/NRZ Triggering and Serial Decode
The only type of error that will be reported in the Manchester decode is
Manchester Error. When this occurs, a red error frame is drawn with the text
"MANCH" in red inside the error frame. Any previously valid frame before the error
is terminated with a blue closing > angle bracket. Because all data is assumed
invalid following a Manchester Error, the red error frame is drawn until a valid idle
signal is detected. In the sync field, any bit value errors are ignored. Manchester
errors are reported anywhere in the frame.

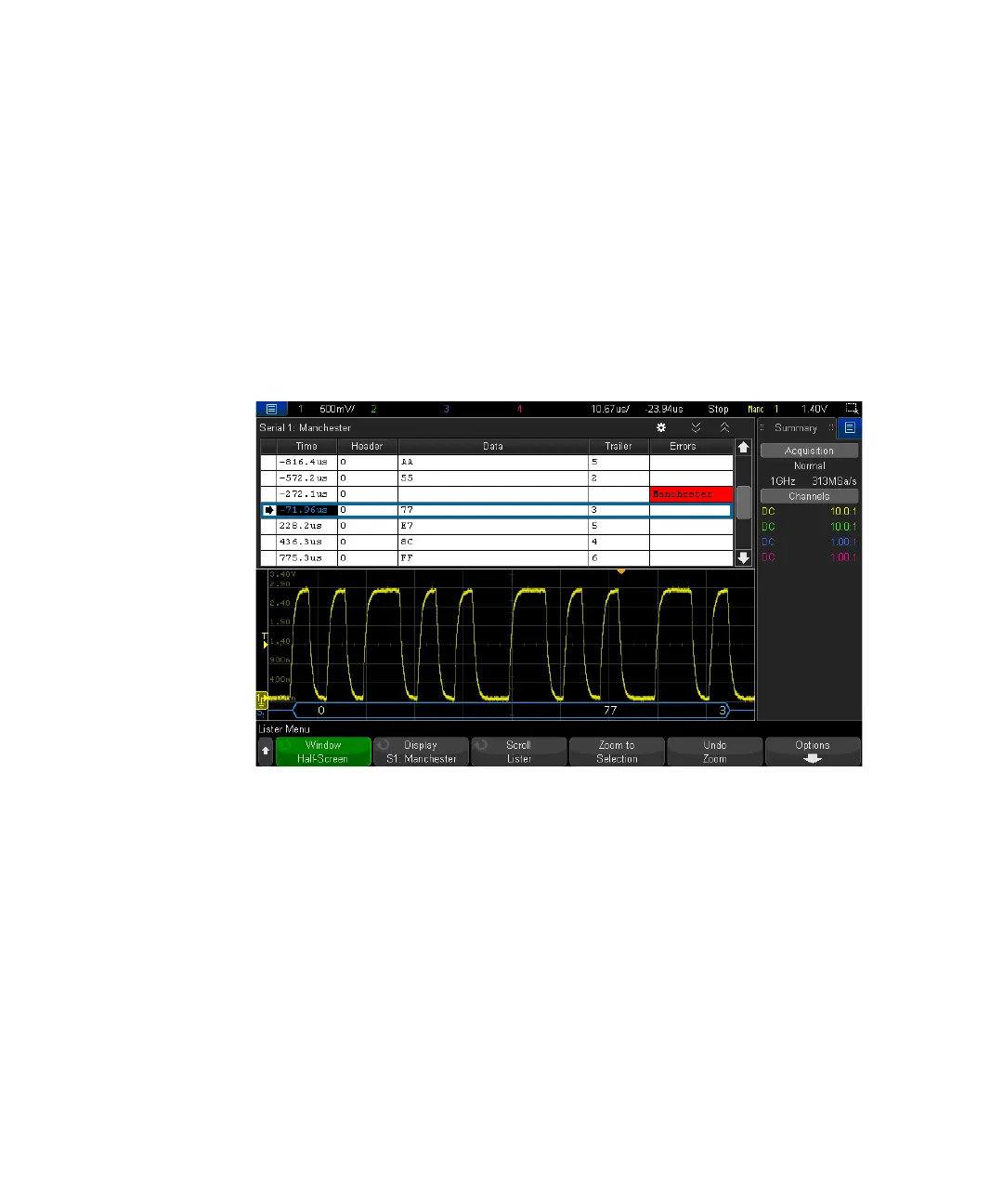

Interpreting Manchester Lister Data
In addition to the standard Time column, the Manchester Lister contains these
columns:
•In Word format:
• Header (hex)
• Data (hex, unsigned decimal, or ASCII)
• Trailer (hex)
• Errors
•In Bit format:
• Value (binary)
