32 SENT Triggering and Serial Decode
SENT Triggering
To set up the oscilloscope to capture SENT signals, see “Setup for SENT
Signals" on page 497.

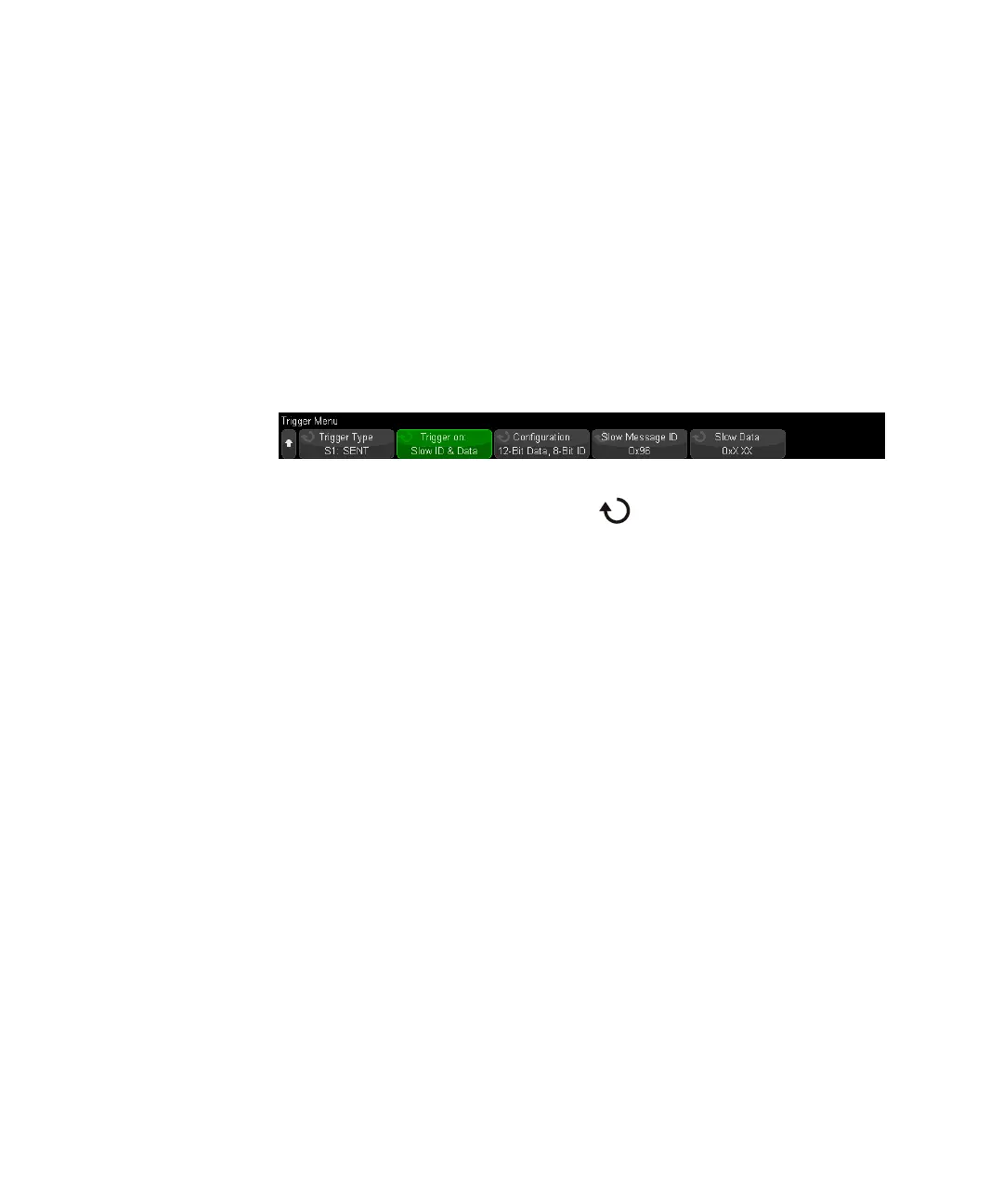

To set up a SENT trigger condition:
1 Press [Trigger].
2 In the Trigger Menu, press the Trigger Type softkey; then, turn the Entry knob to
select the serial decode (Serial 1 or Serial 2) of the SENT signal.
3 Press the Trigger on: softkey and use the Entry knob to select the SENT
trigger condition:
• Start of Fast Channel Message — triggers on the start of any Fast Channel
Message (after 56 Synchronization/Calibration ticks).
• Start of Slow Channel Message — trigger on the start of any Slow Channel
Message.
• Fast Channel SC & Data — triggers on a Fast Channel Message when the Status
& Communication nibble and the data nibbles match the values entered
using additional softkeys.
• Slow Channel Message ID — triggers when a Slow Channel Message ID
matches the value entered using additional softkeys.
• Slow Channel Message ID & Data — triggers when a Slow Channel Message ID
and Data field both match the values entered using additional softkeys.
• Tolerance Violation — triggers when the sync pulse width varies from the
nominal value by greater than the entered percentage.
• Fast Channel CRC Error — triggers on any Fast Channel Message CRC error.
• Slow Chanel CRC Error — triggers on any Slow Channel Message CRC error.
• All CRC Errors — triggers on any CRC error, Fast or Slow.
• Pulse Period Error — triggers if a nibble is either too wide or too narrow (for
example, data nibble < 12 (11.5) or > 27 (27.5) ticks wide). Sync, S&C, data,
or checksum pulse periods are checked.
