Keysight InfiniiVision 3000T X-Series Oscilloscopes
User's Guide
33 UART/RS232 Triggering
and Serial Decode
Setup for UART/RS232 Signals / 511
UART/RS232 Triggering / 513
UART/RS232 Serial Decode / 515
UART/RS232 triggering and serial decode requires the COMP license that you can
get by purchasing the DSOX3COMP upgrade.
Setup for UART/RS232 Signals
To set up the oscilloscope to capture UART/RS232 signals:
1 Press [Serial].
2 Press the Serial softkey, turn the Entry knob to select the desired slot (Serial 1 or
Serial 2), and press the softkey again to enable decode.
3 Press the Mode softkey; then, select UART/RS232 trigger type.

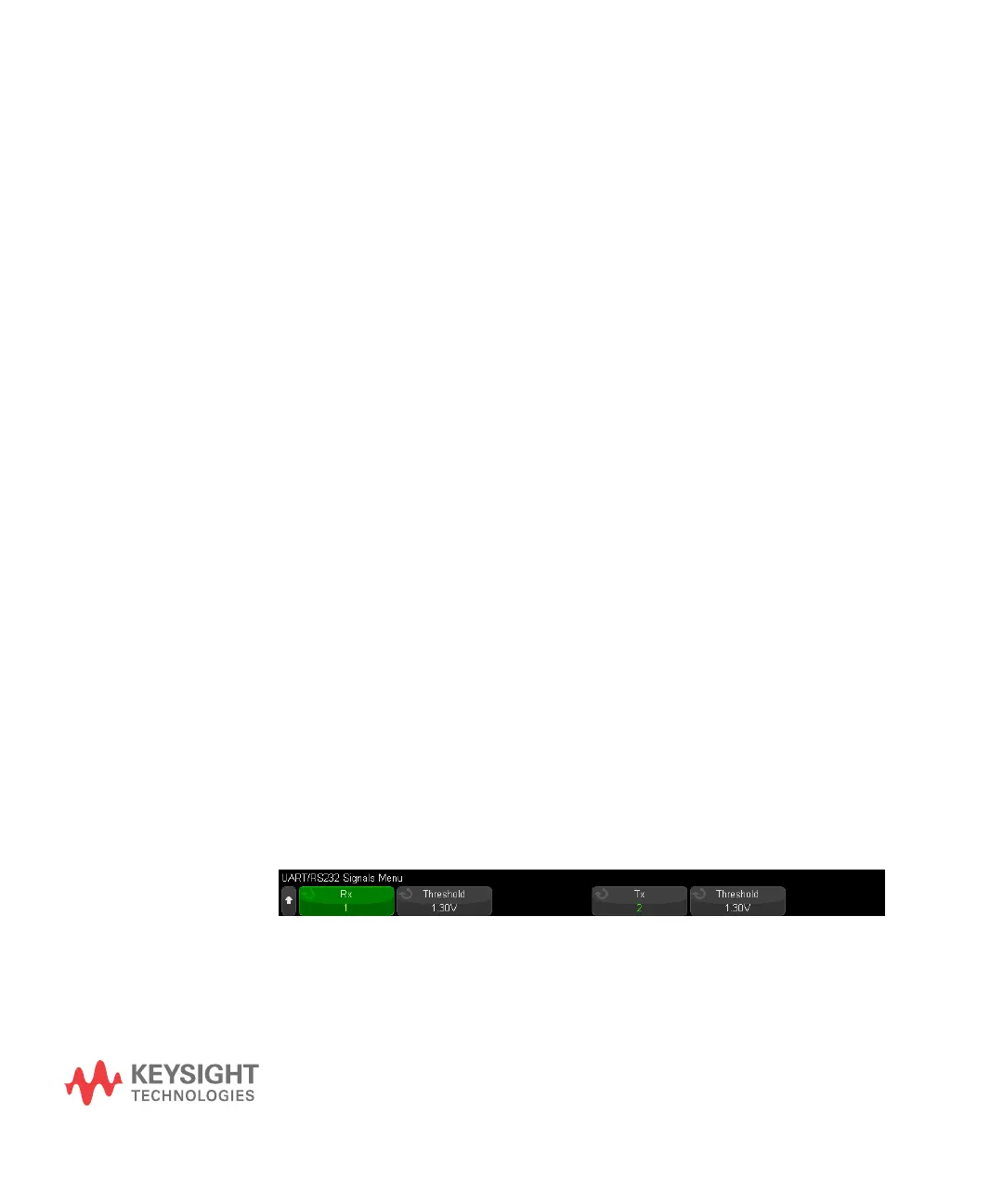

4 Press the Signals softkey to open the UART/RS232 Signals Menu.
