310 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
19 Waveform Generator

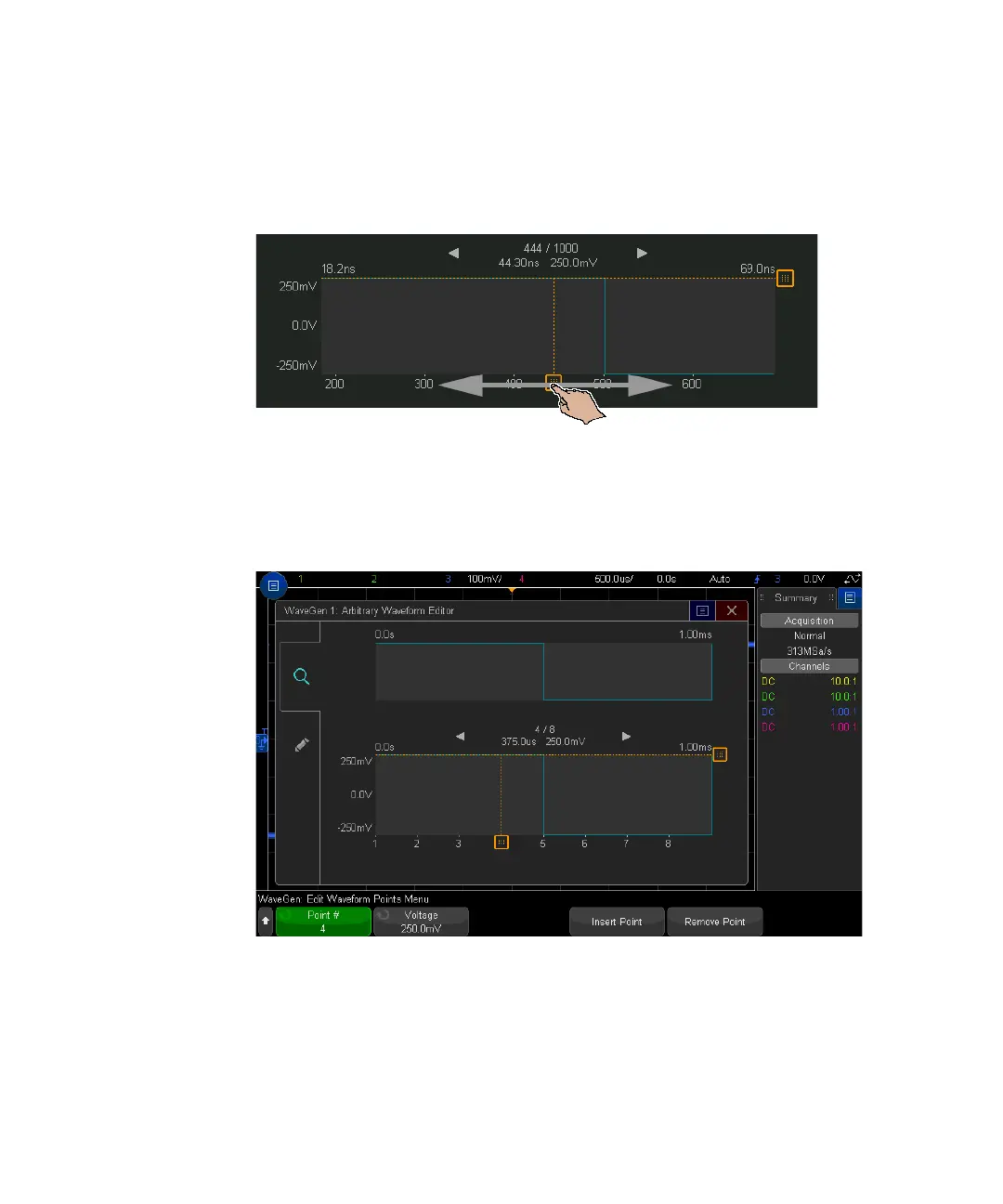

To navigate the arbitrary waveform (and select points), drag the point selection
handle left or right across the display area:
Using Softkeys to
Edit Existing
Waveforms
The Edit Waveform Points Menu is opened by pressing Edit Existing in the Edit
Waveform Menu or by pressing Apply & Edit when creating a new arbitrary
waveform.
To specify the voltage values of points:
1 Press Point #; then, use the Entry knob to select the point whose voltage value
you wish to set.
2 Press Voltage; then, use the Entry knob to set the point's voltage value.
