Keysight N774-C & 8162-C Series User’s Guide 41
Getting Started 2

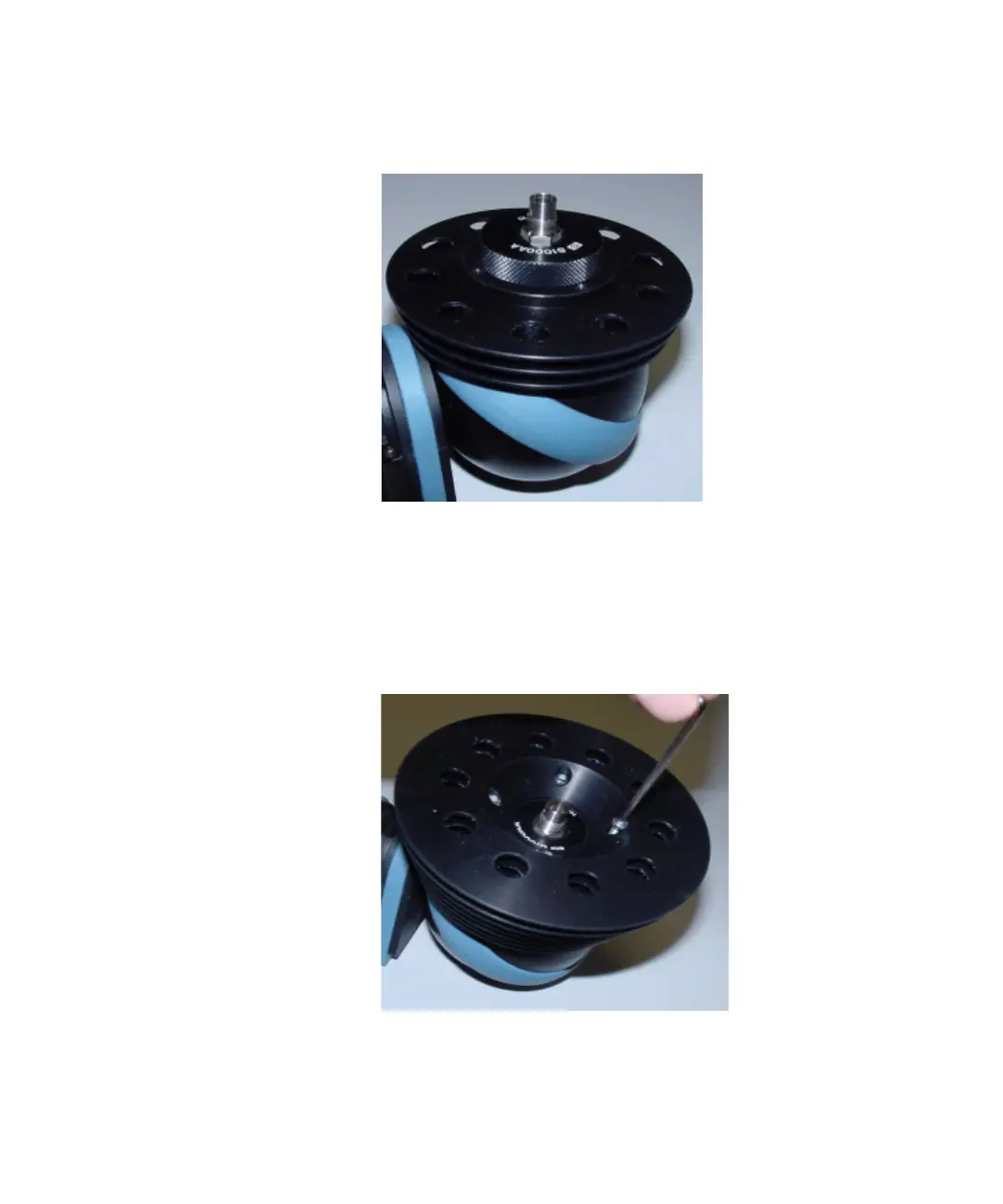

Figure 19 Attaching the Bottom Part of the Heat Sink
3 Attach the upper part of the heat sink to the integrating sphere. Slide
the upper part over the connector adapter with the largest diameter
facing opposite to the sphere. Tighten the screws with the Allen key
enclosed in the Heat Sink Kit (see Figure 20 ).
Figure 20 Attaching the Upper Part of the Heat Sink
