N777-C Front and Rear Panel
This section provides information on the front and rear panels of the
N777-C Series Tunable Laser Source.

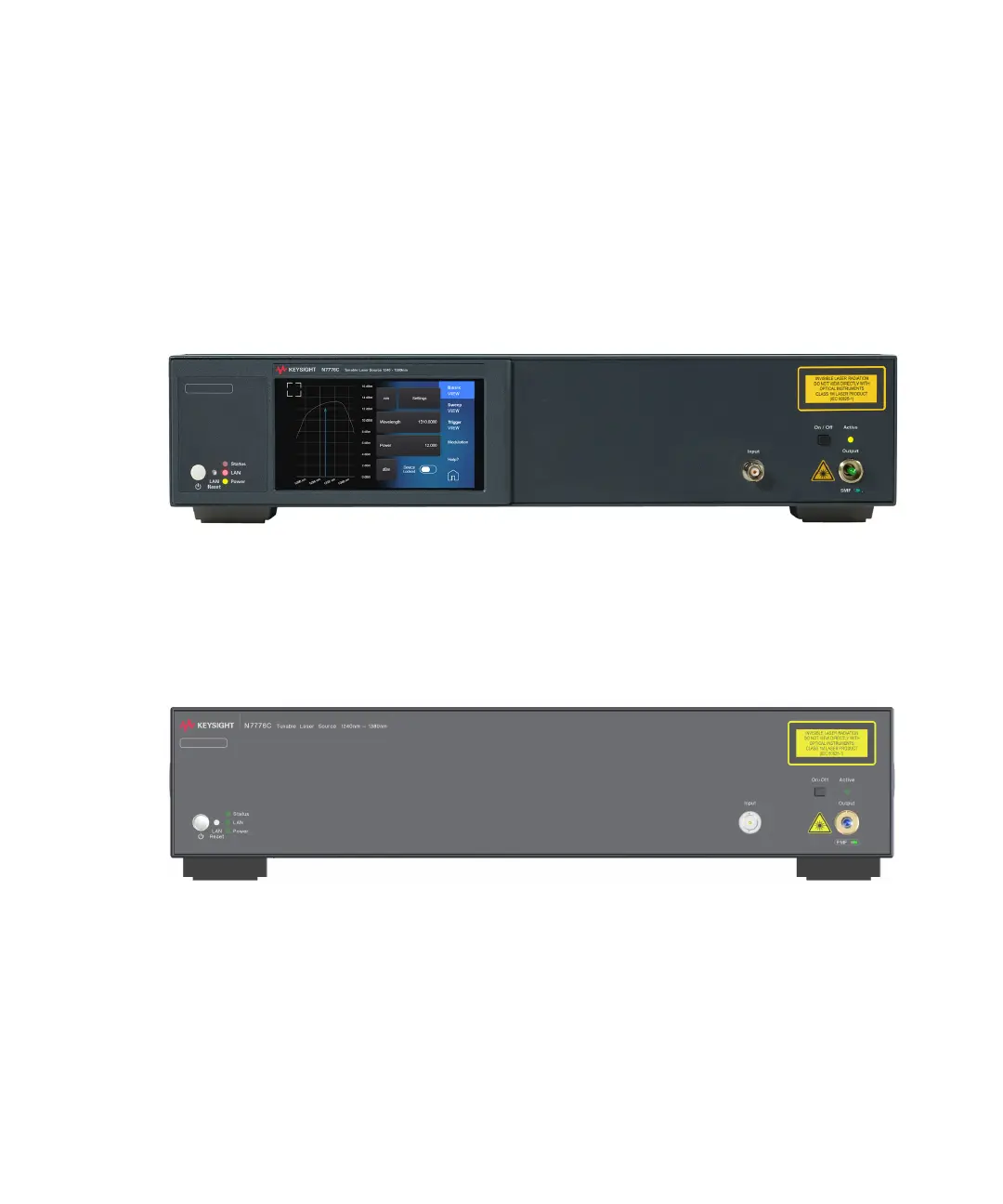

Figure 7 shows the front panel of the N777-C Series Tunable Laser Source
with the optional display unit (Option D01):
Figure 7 Front Panel of the N777-C Instrument with Display
Figure 8 shows the front panel of the N777-C Series Tunable Laser Source
without the display (Option D00):
Figure 8 Front Panel of the N777-C Instrument without Display
