Keysight N777-C Series Tunable Laser Family User’s Guide 97
N777-C Instrument’s Front Panel Display 5
How to Use Triggers?
The N777-C Tunable Laser instruments allow you to trigger the instrument
to perform tasks and to output trigger signals to external measurement
instruments.

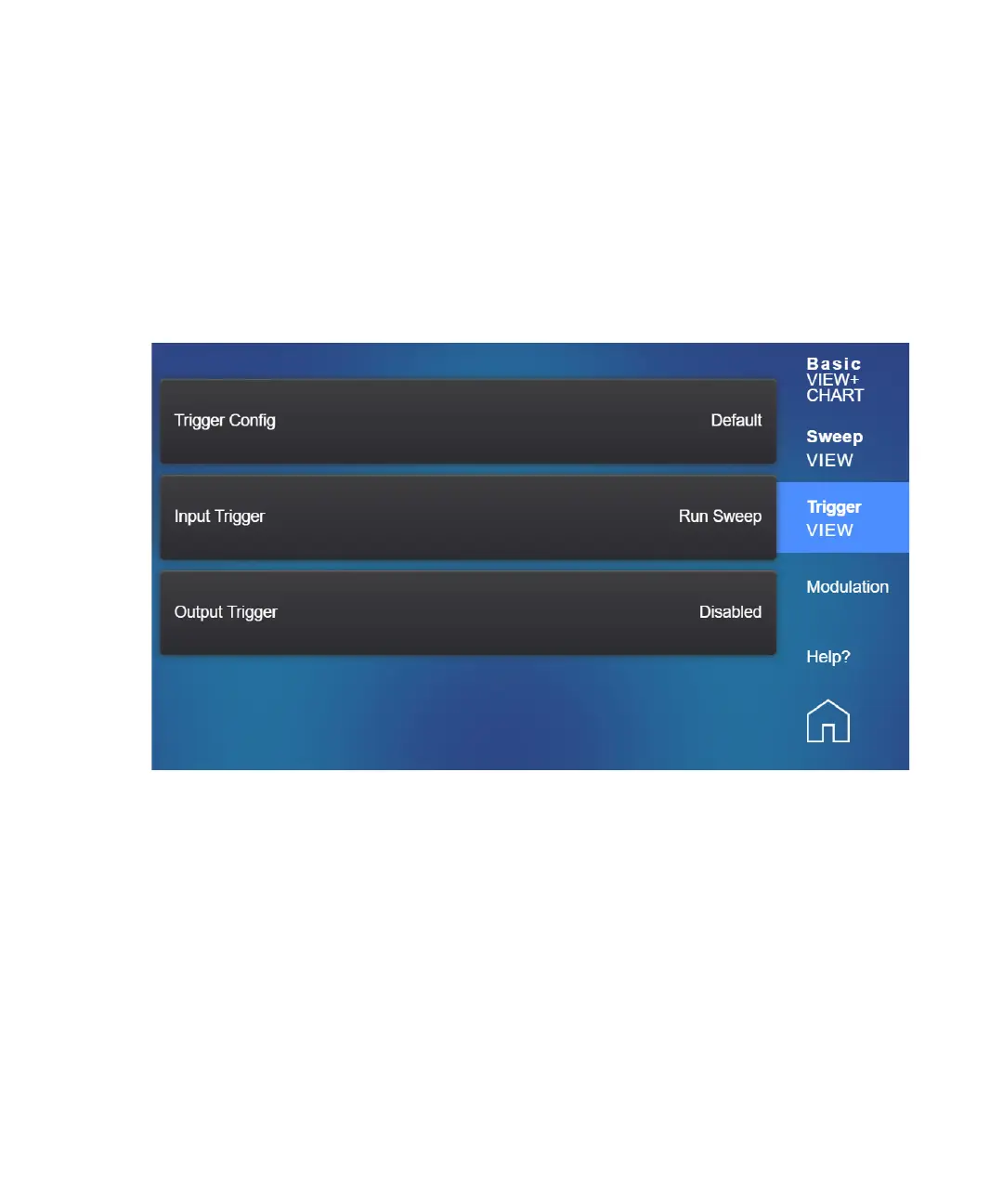

To view the Trigger window, click on the Trigger VIEW tab. The following
window appears:
How to Set the Trigger Configuration
The trigger level at the external trigger connectors is by default active
high, this means when a trigger rises above the high TTL level (rising
edge), a trigger is accepted.
You can use the Trigger Config drop-down menu to select the triggering
mode.
