Keysight N777-C Series Tunable Laser Family User’s Guide 41

Getting Started 2

N777-C User Interface

Keysight offers the N777-C Tunable Laser Source instruments with an

optional display. Figure 12 shows the user interface accessed in the

instrument’s display:

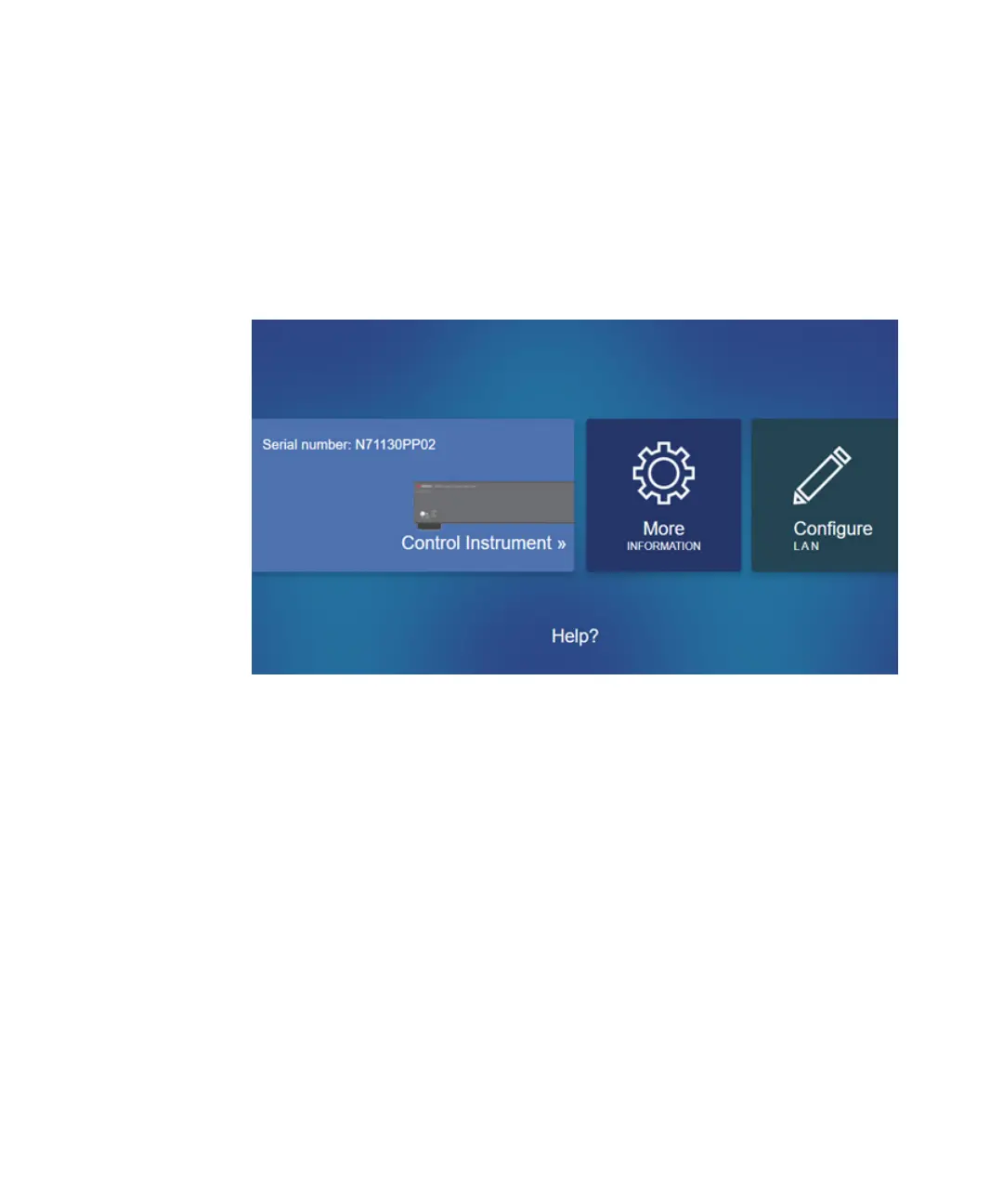

Figure 12 N777-C Instrument User Interface

For details on the interface and how to access and use it, see Chapter ,

“N777-C Instrument’s Front Panel Display,” on page 85.
