Error Terms
6-

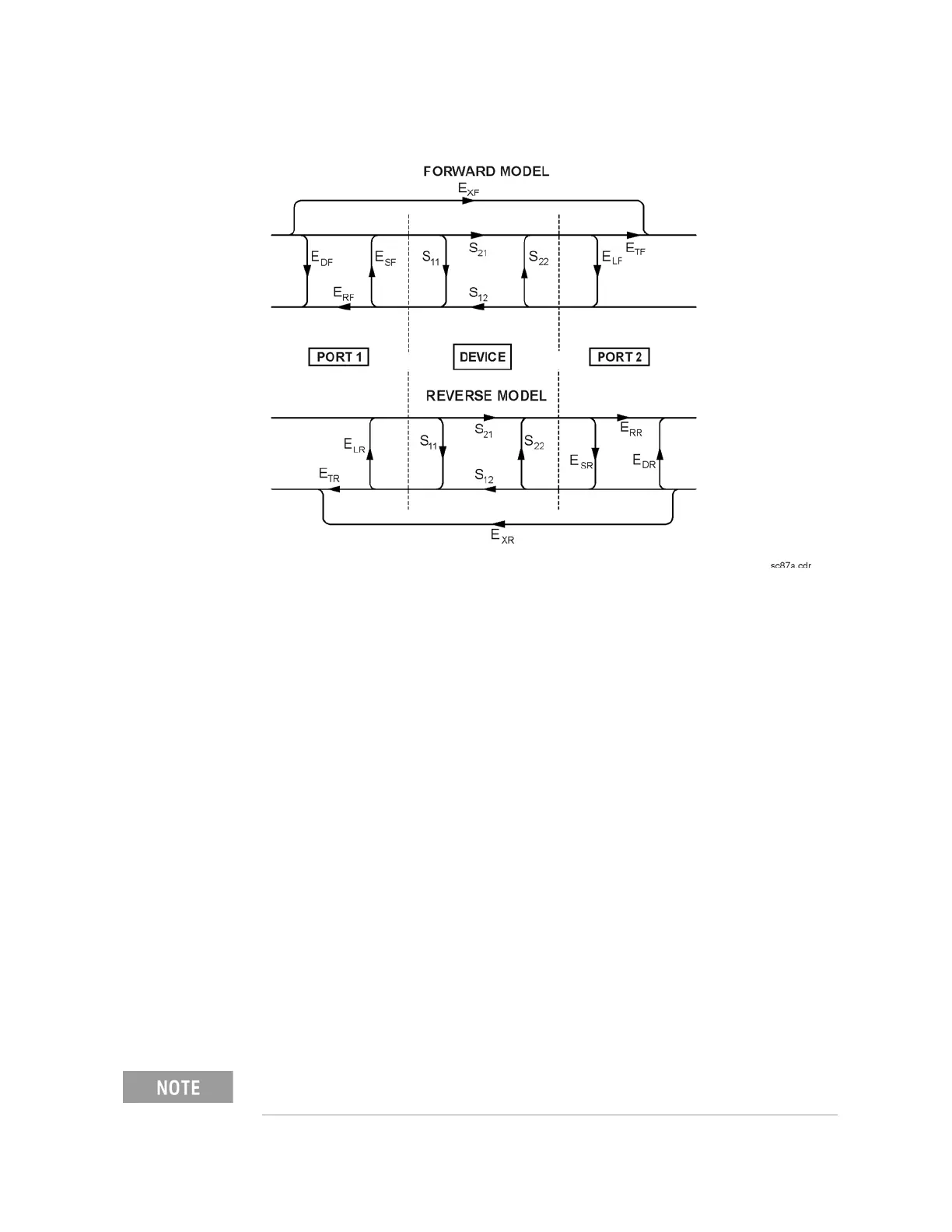

Figure 6-2 Flowgraph of 2-Port Error Terms
Where:
E = Error term
1st Subscript:
D = Directivity
S = Source Match
R = Reflection Tracking
X = Crosstalk (Isolation)
L = Load Match
T = Transmission Tracking
2nd Subscript:
F = Forward measurement (Port 1 to Port 2)
R = Reverse measurement (Port 2 to Port 1)
Manual Access to Error Terms
Soft Front Panel Access to Error Terms
Ensure the calibration correction is active by making sure that the check
box for Correction on/OFF has been selected.
