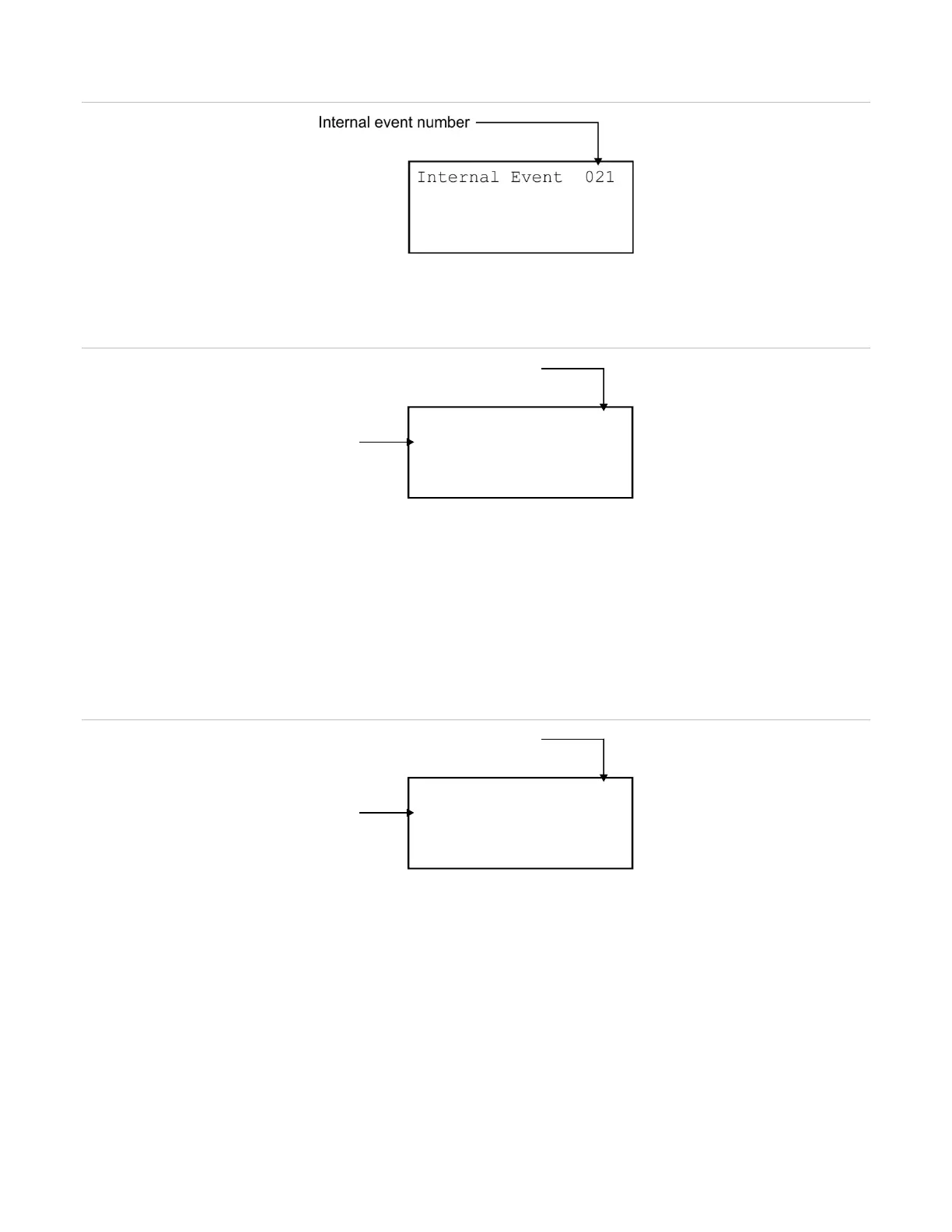

Figure 51: Internal event (panel and loop events) details display screen
Note: See “Event ID numbers and descriptions” on page 142 for a list of event numbers.
Figure 52: Zone event details display screen
Note: You can scroll through the list of all devices in the zone reporting an event:
• Navigate to the desired active zone using the up arrow or down arrow buttons.
• When at the desired active zone, press the enter button to view active devices inside the
zone.
• Once inside the zone, press the down arrow button to see each active device within that
zone.
Figure 53: Annunciator event details display screen
To view event details:
1. When an event takes place, press Enter on the front panel.
2. View the event details.
The event details screen is displayed for 15 seconds and then returns to the previous
screen if there is no activity.
Zone 01
Lobby pull station
Zone number
Label
Annunciator 007
Annunciator 007
Annunciator number
Label
