Kidde VS1 - SA-DACT wiring

Chapter 1: Installation and wiring
P/N 3102351-EN • REV 005 • ISS 28DEC18 21
SA-DACT wiring
The optional SA-DACT provides communications between the control panel and the central
station over a telephone line system. The SA-DACT is listed for use with the following DACRs.
Table 5: DACRs used with the SA-DACT
Receiver
Models Formats
Ademco
685 Contact ID
FBII
CP220 Contact ID
Osborne
-Hoffman OH2000 and OH2000E with an OH2000E-LC line card installed
(see note below)
Contact ID
Bosch
D6600 Contact ID
Silent Knight
9500, 9800 Contact ID
Sur
-Gard MLR1, MLR2, MCDI TLR, TLR+, SG-SLR, MLR2000 Contact ID
Note: Install a listed secondary telephone protector between the telco network and the
SA-DACT card. The SA-DACT card must be the next piece of equipment that connects to the
telephone company (TELCO) telephone lines.
Phone lines connect to the dialer using connectors on the dialer’s main circuit board. Phone
line 1 connects to connector J1 and phone line 2 connects to connector J4.
The SA-DACT comes with two, eight position, four conductor modular cords. Connect one end
of each cord to connector J1 and J2. Connect the other end of each modular cord to either an
RJ-31X or RJ-38X. Wire the RJ-31X block as shown in Figure 28.
Circuit specifications
• Operating current (standby or alarm): 41 mA nominal, 100 mA max.
• Phone line type: One or two loop-start lines on a public, switched network
• Phone line connector: RJ-31/38X (C31/38X)
• Communication format: Contact ID (SIA DC-05)

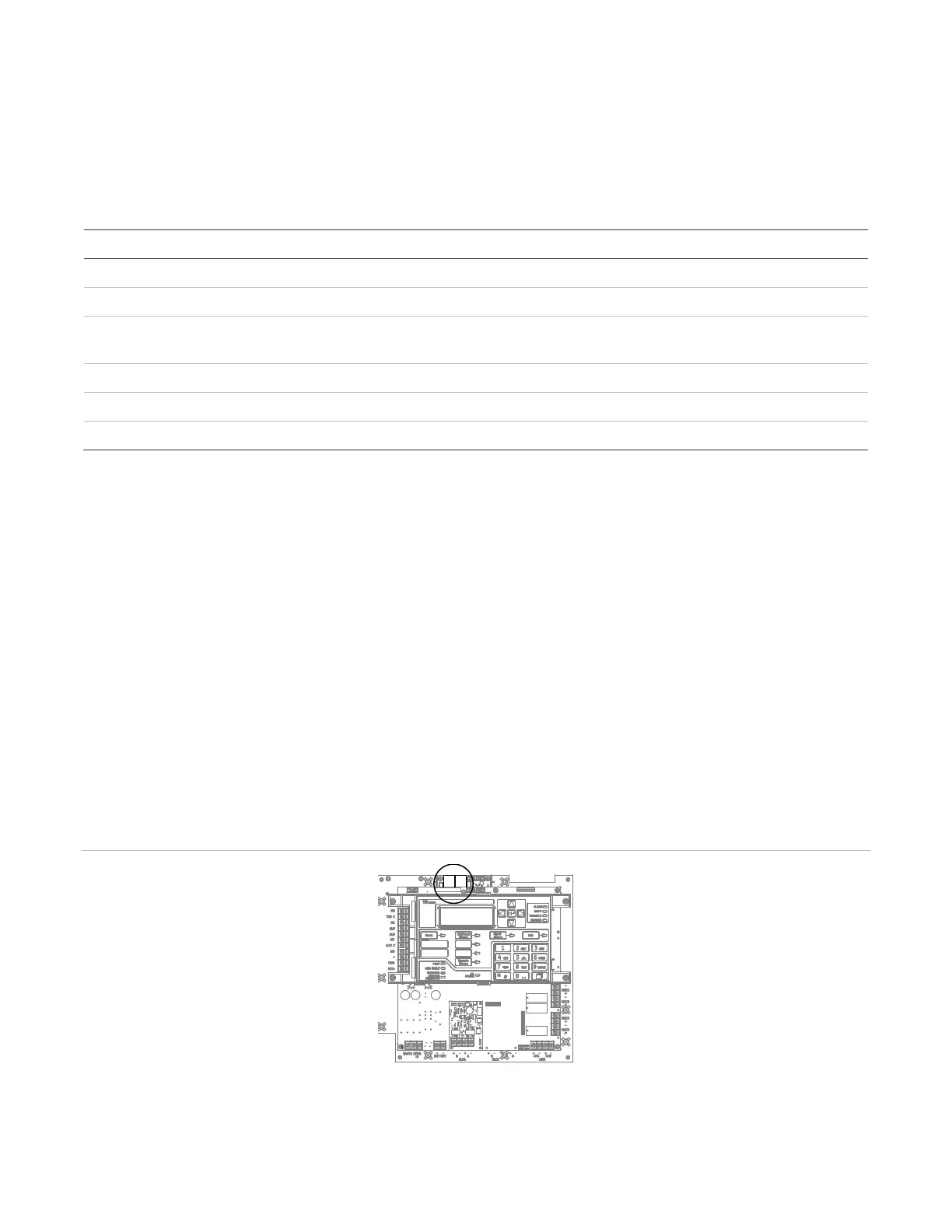

Figure 28: SA-DACT wiring location
