King-Meter E5227-U LCD - Page 7


3


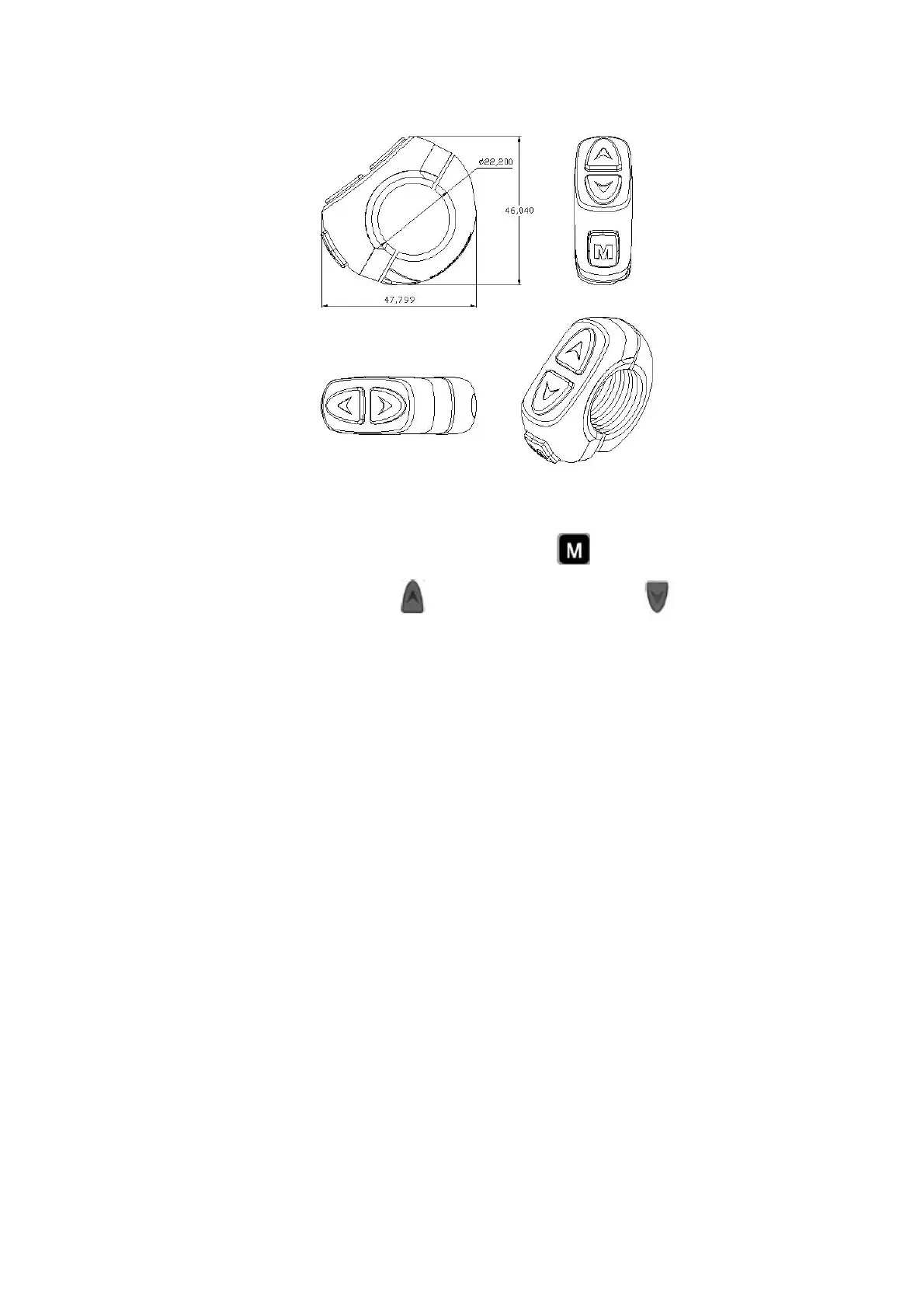

E5227LCDisequippedwithspecialN3‐buttonunit. 
,N3buttonshapeisasfollows：

TheN3buttonisconnectedtothebottomleadoftheE5227LCD
display.
In the follow‐up instructions, the button  is named as
【MODE】.Thebutton  isnamedas【UP】,thebutton  is
namedas 【DOWN】.

Inaddition,30buttonasbelowisalsooptional,tobemountedon
theleftsideofthehandlebarorontherightsideofthehandlebar.
