Product information
10
TR07-TR11-TR14-TR19-TR25
30.03.2020
2. Product information
2.1. Product overview
These operating instructions apply to NOX Tiltrotator TR07, TR11, TR14, TR19
and TR25.

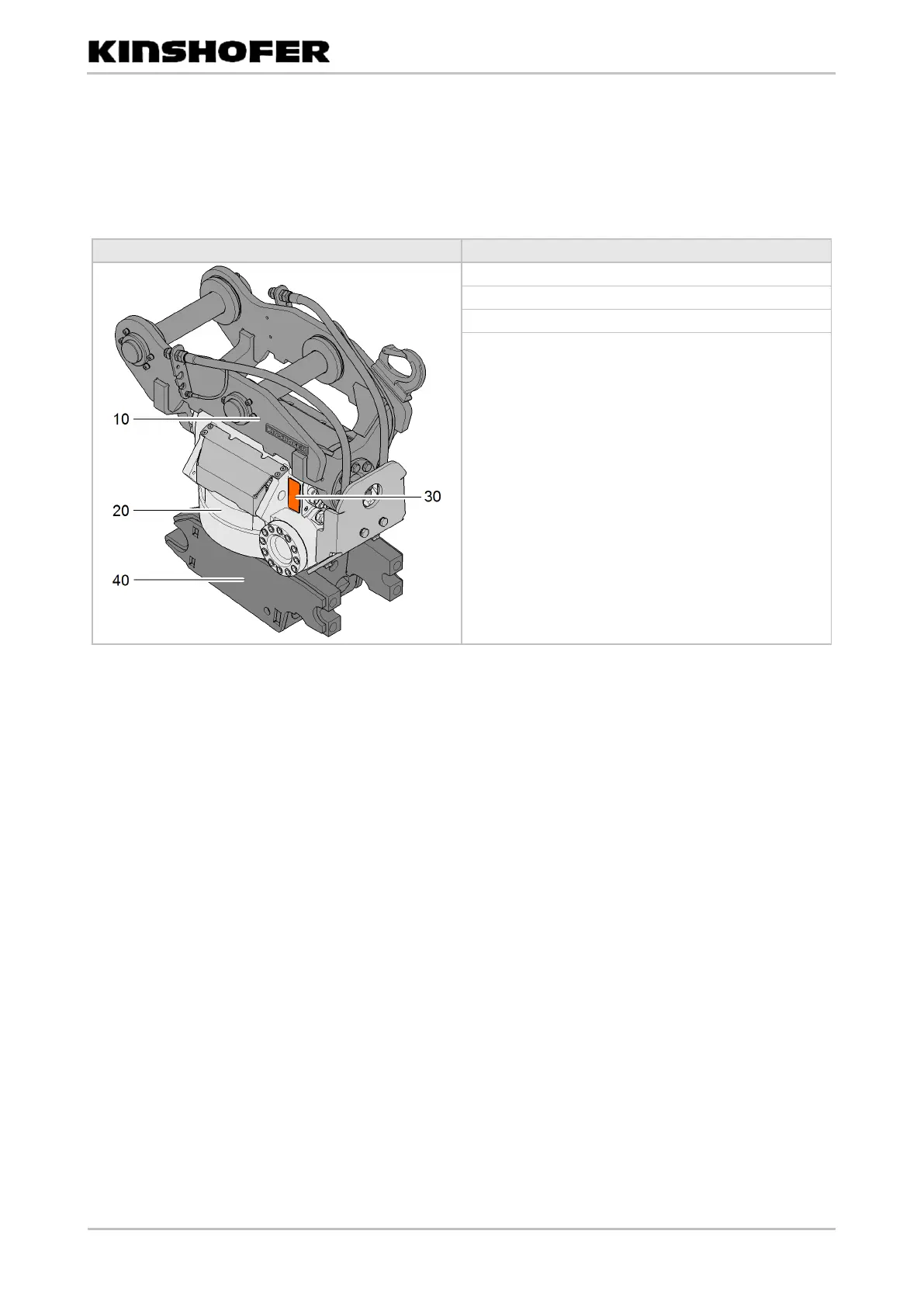

Product overview
Explanation
10: Upper bracket (UB)
20: Tiltrotator (NOX)
30: Type plate (TP)
40: Lower quick coupler (LQC)
2.2. Controllers
The following Kinshofer controllers are available:
• Proportional controller via integrated valves.
• All hydraulic functions are powered by a simple effective hydraulic circuit.
• All functions can be executed simultaneously.
• Tool and profiles are selected via the display.
• The High Flow variant offers an extra function for a higher oil flow.
• Swivel:
• Quick coupler (safety circuit integrated for hydraulic quick coupler).
• Extra function 1
• Extra function 2
• Separate overflow oil line (for attachments).
• Electrical swivel (12x 0.5 A) optional.
• All functions are controlled directly from the carrier:
• Tilt.
• Rotate.
• Quick coupler (safety circuit must be integrated in the carrier).
• Extra function 1.
• Extra function 2.
• Separate overflow oil line (for attachments).
• Electrical swivel (12x 0.5 A) optional.
CSP Standard /
CSP High Flow
DF10 Standard /
DF10 High Flow
