Installation and initial operation
• Set down attachment on a level, firm surface.
• Position jib of carrier so that carrier can be connected to its support.

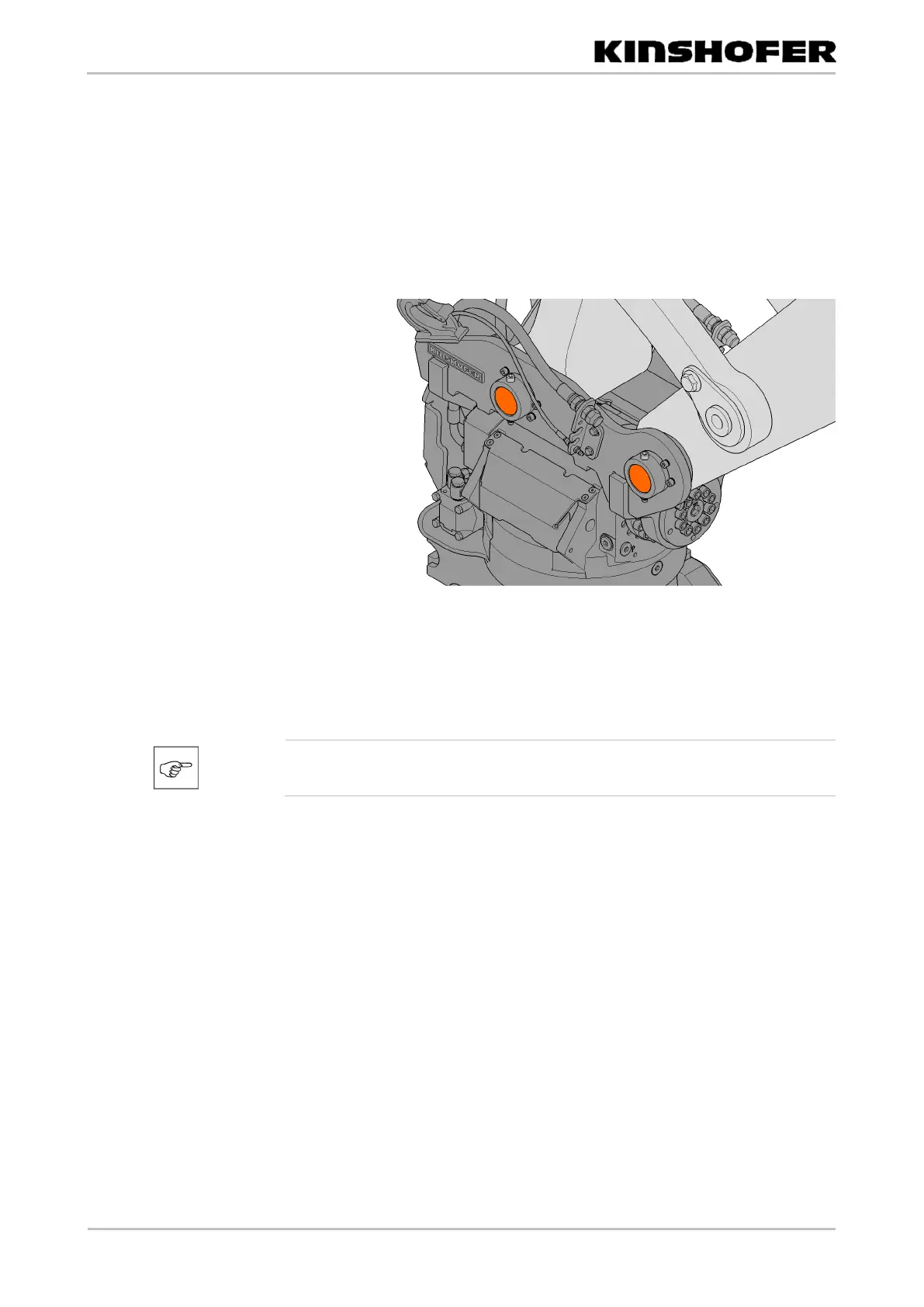

• Connect the carrier boom (1) and attachment (5) with a pin (3) and secure the
pin with a socket head cap screw (2) and nut (4).
• Raise and align the attachment so that the carrier dipper can be connected to
the attachment.
• Connect the carrier dipper (6) and attachment (5) with a pin (3) and secure
the pin with a socket head cap screw and nut (3).
• Verify the correct and secure seating of the socket head cap screws.
4.2. Quick coupler
As the quick coupler is supplied in a variety of versions, no explicit description is
possible.
NOTICE
Observe the accompanying operating instructions for the quick coupler.
