KINSHOFER TR07 - Checking the Quick Coupler

Handling
30.03.2020
TR07-TR11-TR14-TR19-TR25
49

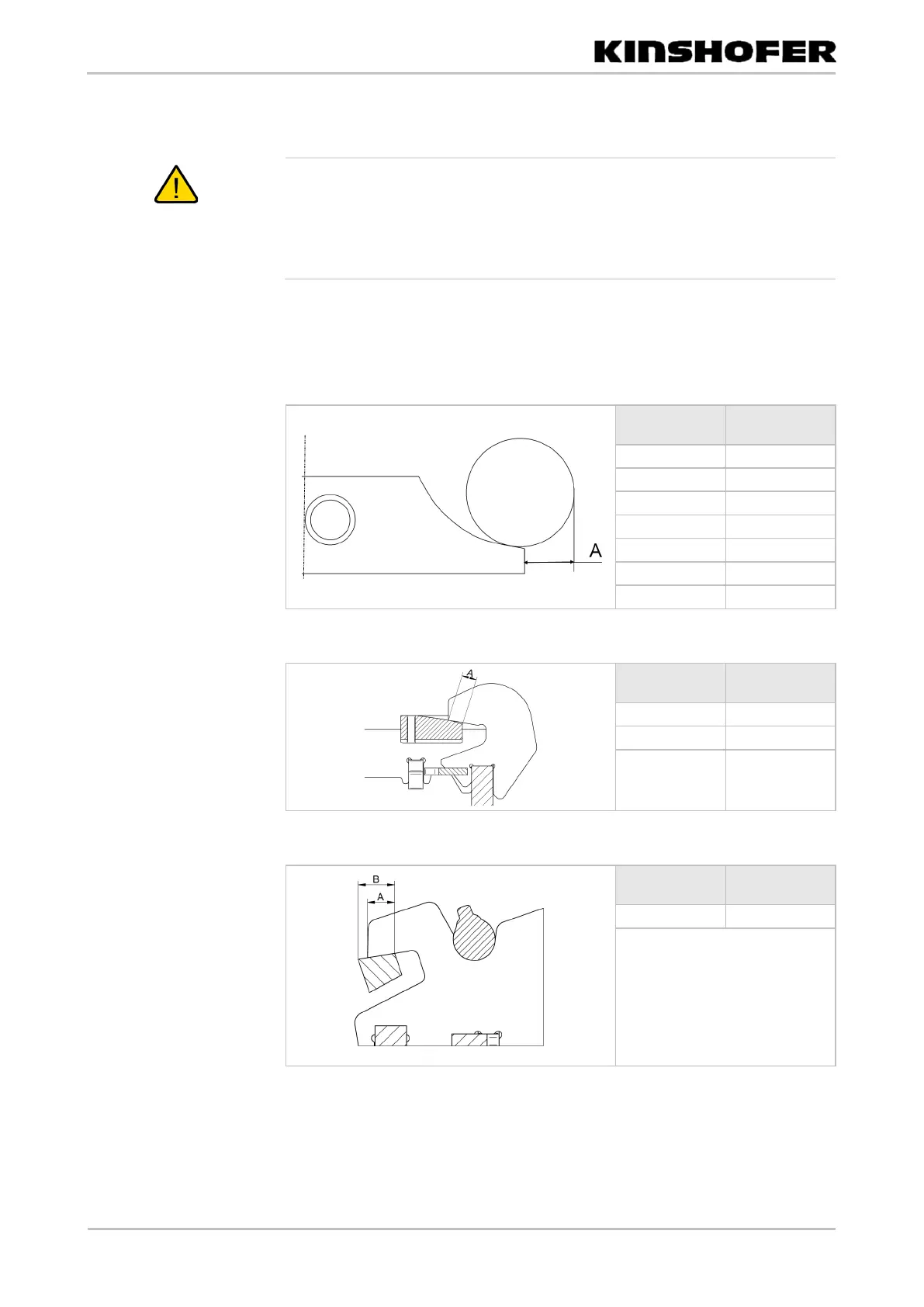

5.3. Checking the quick coupler
WARNING
If A (max) is exceeded or the value falls below A (min), cease working
immediately.
• If any anomalies occur, cease working immediately.
• Report and/or rectify faults.
• Switch off the carrier, depressurise and secure to prevent reactivation.
The used quick coupler must be checked regularly (at least every 4 weeks) for
wear and cracks. For detailed instructions, see the operating instructions for the
quick coupler.
Symmetrical quick coupler
Bottom
connection
A (max)
mm
S30
5
S40
10
S45
15
S50
10
S60
20
S70
22
S80
25
Volvo/NTP/Bofors quick coupler
Bottom
connection
A (min)
mm
S1/NTP10/B20
30
S2/NTP20/B27
30
S3/B30
30
Verachtert quick coupler
Bottom
connection
A (min)
mm
CW10 - CW55
A>=B *0.7
At least 70% must be covered.
