KINSHOFER TR07 - Controller DF10 Standard; DF10 High Flow

Installation and initial operation
40
TR07-TR11-TR14-TR19-TR25
30.03.2020
4.3.3. Controller DF10 Standard / DF10 High Flow
All functions are controlled directly from the carrier:
• Tilt.
• Rotate.
• Quick coupler (safety circuit must be integrated in the carrier).
• Extra function 1.
• Extra function 2.
• Separate overflow oil line (for attachments).
• Electrical swivel (12x 0.5 A) optional.
• Check the hydraulic connections on the NOX Tiltrotator for cleanliness.
• Install the hydraulic lines. Observe the following explanations. The function is
marked on hose with a label.
Set the maximum permissible operating pressure and the recommended oil flow
in the table in the chapter Technical data.

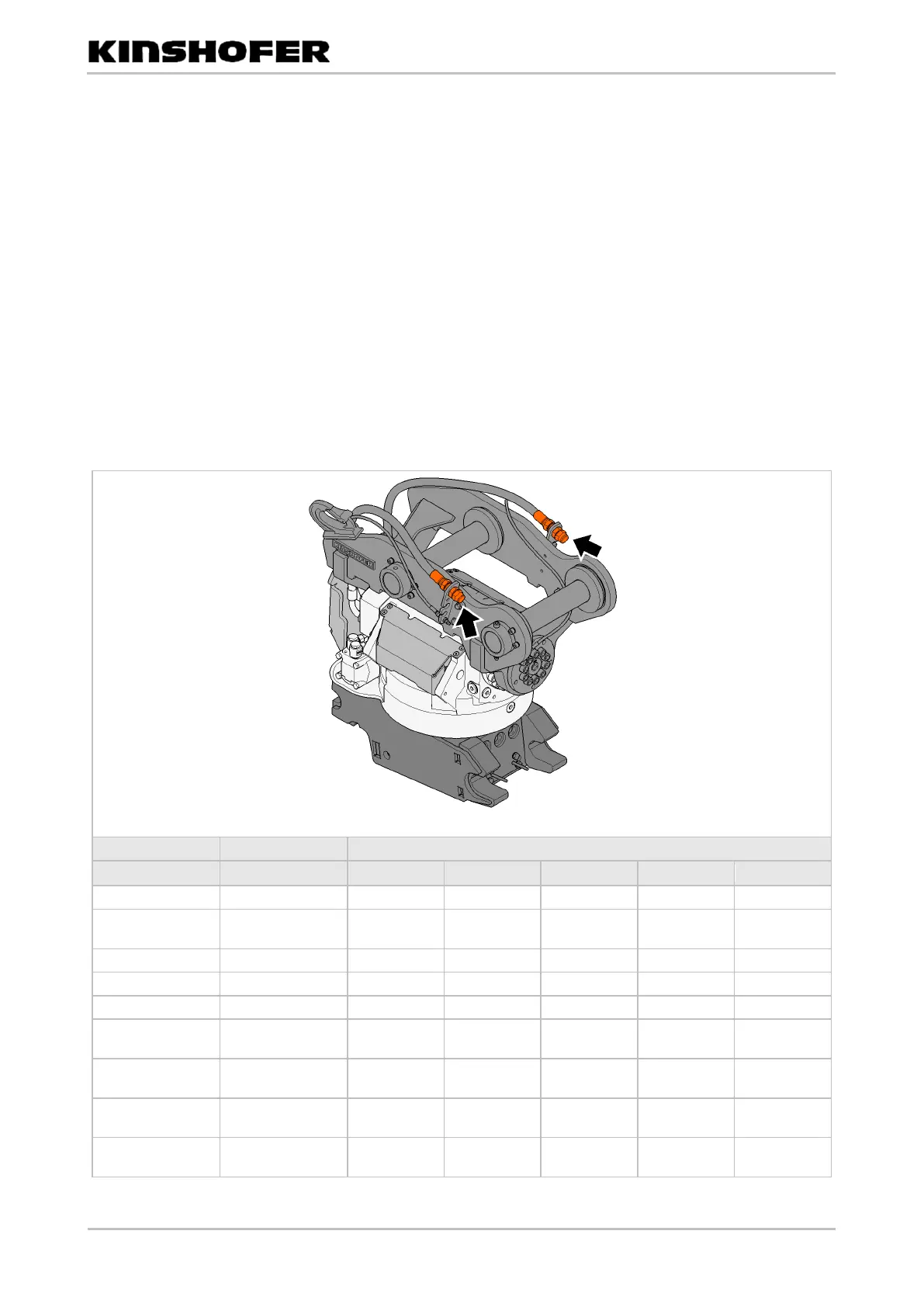

Hydraulic connections on Tiltrotator
Label
Function
Connecting thread
TR07
TR11
TR14
TR19
TR25
Rotation CW
Rotate clockwise
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
Rotation CCW
Rotate
anti-clockwise
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
tilt LEFT
Tilt left
G 1/4" BSP
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
tilt RIGHT
Tilt right
G 1/4" BSP
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
EXTRA 1 (A/B)
Extra function A/B
G 3/8" BSP
G 1/2" BSP
G 3/8" BSP
G 3/8" BSP
G 3/8" BSP
EXTRA 2 (C/D)
Extra function C/D
G 1/4" BSP
G 1/4"
(SD/HF)
G 1/4" (SD)
G 3/4" (HF)
G 1/4" (SD)
G 3/4" (HF)
G 1/4" (SD)
G 1" (HF)
coupler LOCK
Locking the quick
coupler
G 1/8" BSP
G 1/4" BSP
G 1/8" BSP
G 1/4" BSP
G 1/4" BSP
coupler UNLOCK
Unlocking the
quick coupler
G 1/8" BSP
G 1/4" BSP
G 1/8" BSP
G 1/4" BSP
G 1/4" BSP
DRAIN LINE
Drain line
(optional)
G 1/4" BSP
G 1/4" BSP
G 3/8" BSP
G 1/2" BSP
G 3/4" BSP
Usage
Procedure
Checking functions
