5.6. Connection of hydraulic attachments
Ensure absolute cleanliness when connecting the hydraulic connections, in
particular with the sandwich version.
WARNING
Switch off the carrier, depressurise and secure to prevent reactivation.
Depending on the equipment and control system, max. two double-acting
hydraulic functions (A/B, C/D) are available under the Tiltrotator, as well as an
overflow oil line (tank/drain).

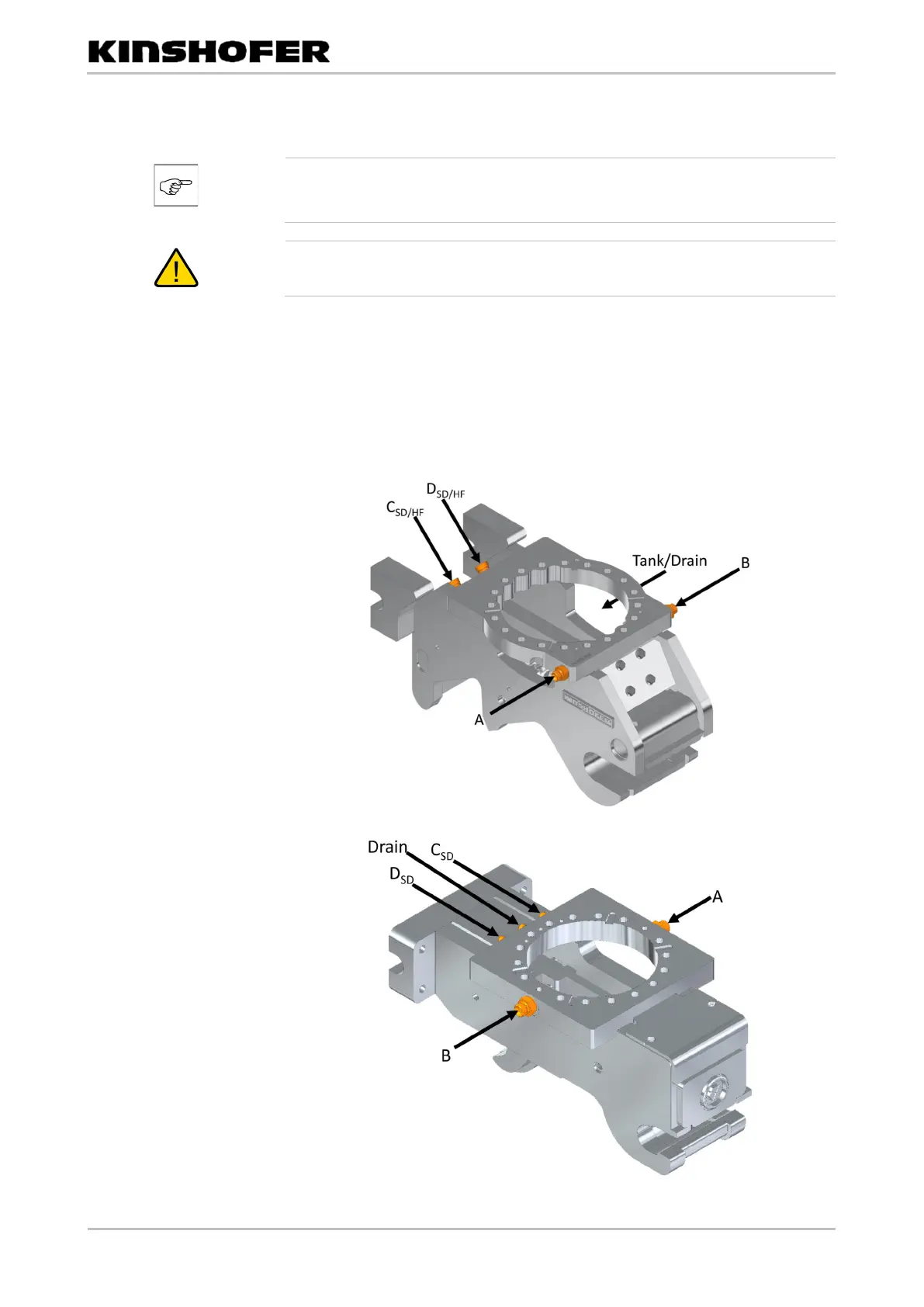

The respective position can be taken from the following figures.
You can find information on the oil flows for the functions in the chapter
Technical data.
