5. Handling
In addition to the Kinshofer operating instructions for the NOX Tiltrotator,
the operating instructions for the carrier (excavator), quick coupler and
attachment also apply. All operating instructions must be freely
accessible at all times.
If necessary, reorder any missing operating instructions from the manufacturer.
The attachments are connected to a mechanical or hydraulic quick coupler.
The quick coupler is a safety component and requires regular thorough
maintenance and must be checked for cracks and damage.
The following steps are intended as a general guide only.
For details, see the operating instructions for the quick coupler.
Improper installation can lead to hazardous situations.
In the event of a doubt relating to knowledge or safety, always contact the
supplier or manufacturer.
The installed control system also controls the locking and unlocking of the quick
coupler.
The correct installation of the control system ensures that the operating
pressure is applied for the "Lock coupler" function for a hydraulic quick coupler

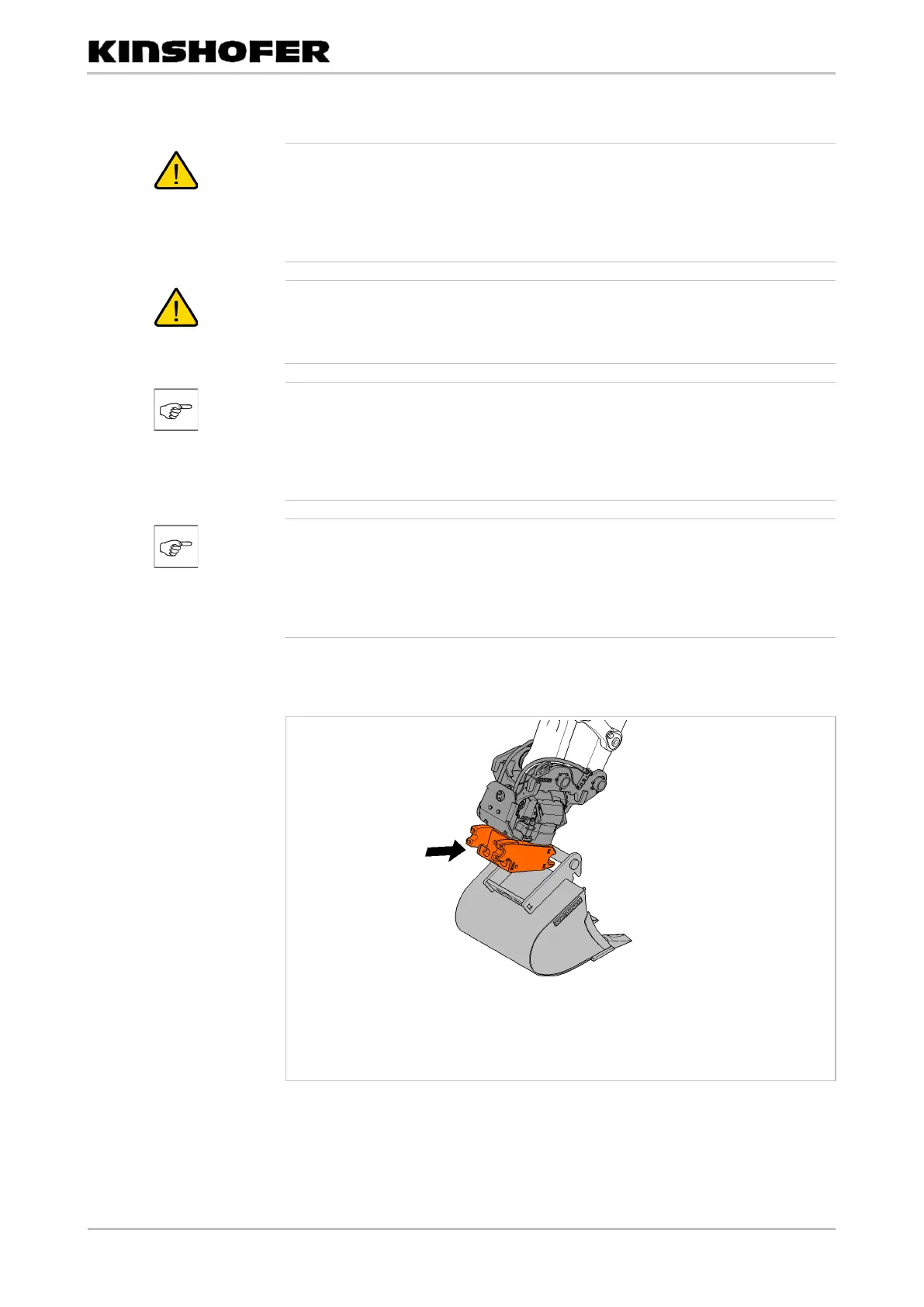

5.1. Assembling the attachment
• Engage the coupling claws of the quick coupler in the coupling shaft of the
attachment.
• Pivot the quick coupler into the adapter of the attachment.
• Unlock the quick coupler.
