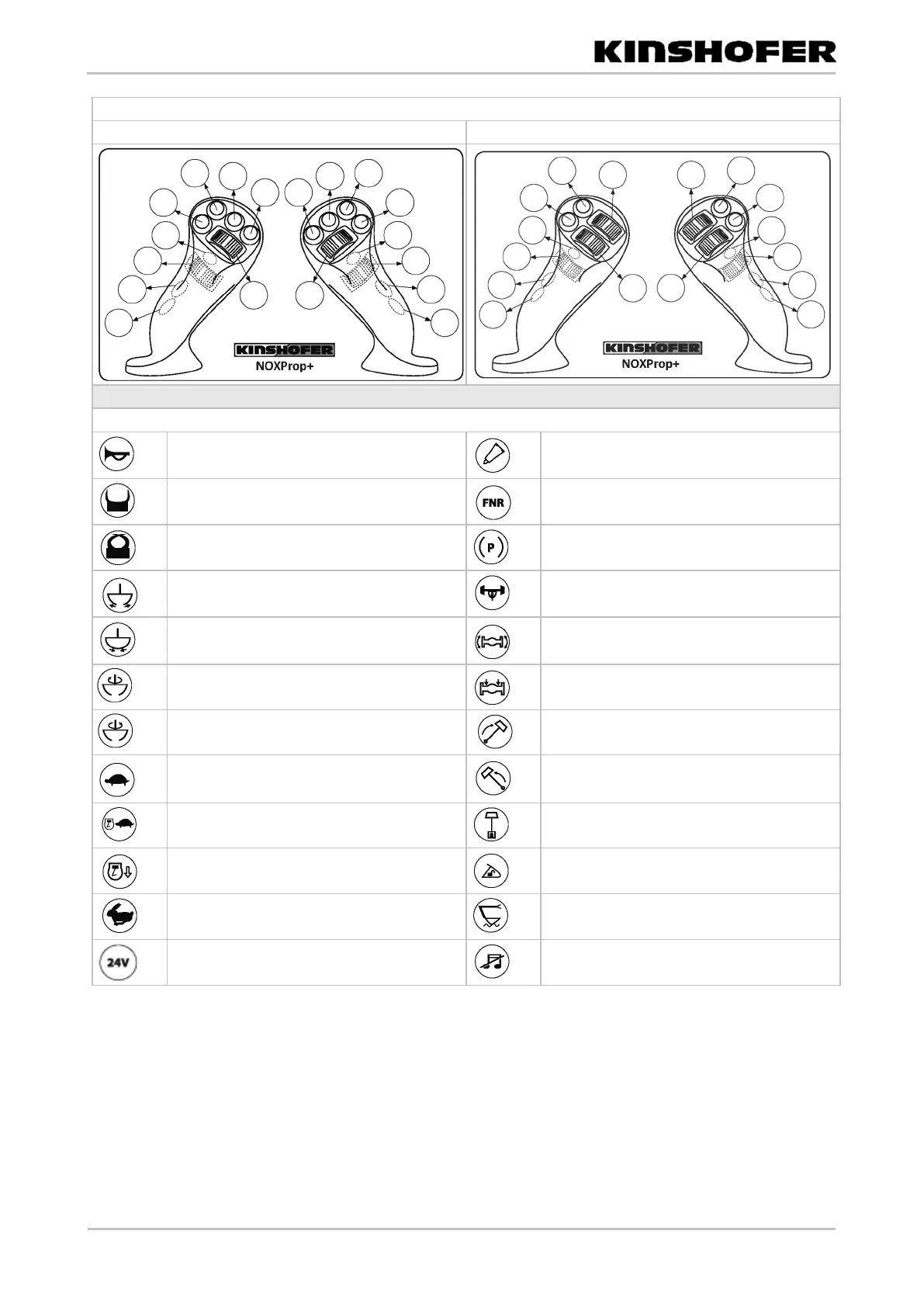

Excavator cabin stickers and symbols for the pushbuttons used
NOXProp+ joystick 1 roller
NOXProp+ joystick 2 roller
Explanation of symbols
Functions of the excavator control
Horn
Breaker
Open grab
Travel selector switch
Close grab
Parking brake
Open shell-grab
Differential lock
Close shell-grab
Unlock swing axle
Rotate shell-grab clockwise
Swing axle locked
Rotate shell-grab counter-clockwise
Tilt main arm to the right
Slow traverse
Low rotation speed
Tilt main arm to the left
Reduce rotation speed
Lock swivel linkage
Idling
Unlock/lock tool
Rapid traverse
High rotation speed
Vibration damping
Electric potential
Mute radio
