TM
Model 3000M0188-01
Rev. 6/11 7-5
Lubrication and Maintenance
INTERPLANT PUSH ROW UNIT LOCKUPS
2 Per Row
WHEEL BEARINGS
Inspect all drive, transport, and marker hub wheel bearings annually and repack/replace as needed.
1. Raise wheel off ground.
2. Check bearing endplay by moving wheel side to side.
3. Rotate wheel to check bearing roughness. If bearings sound rough, hub should be removed and bearings
inspected and replaced as needed.
To repack wheel hubs, follow procedure outlined for wheel bearing replacement except bearings and bearing cups are
reused.
LIQUID FERTILIZER PISTON PUMP
CRANKCASE OIL LEVEL
Check crankcase oil daily and maintain at plug level. Fill as
needed with EP 90 weight gear oil. Total oil capacity is
approximately ¾ pint.
Refer to operator and instruction manual supplied with pump
and flow divider for additional information.

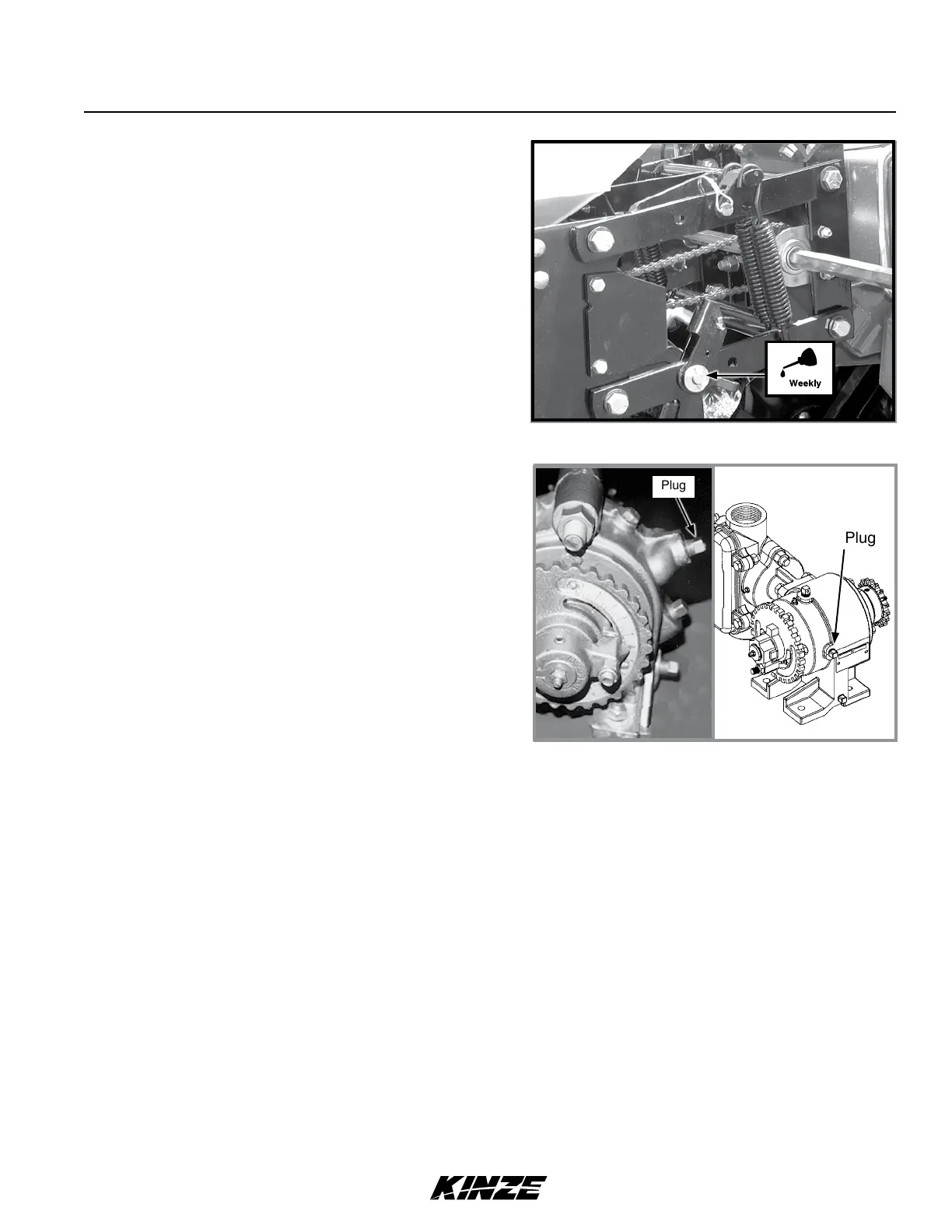

Plug
Plug
Piston pump oil fill plug location
