M0188-01Model 3000
TM
Machine Operation
2-12 Rev. 6/11

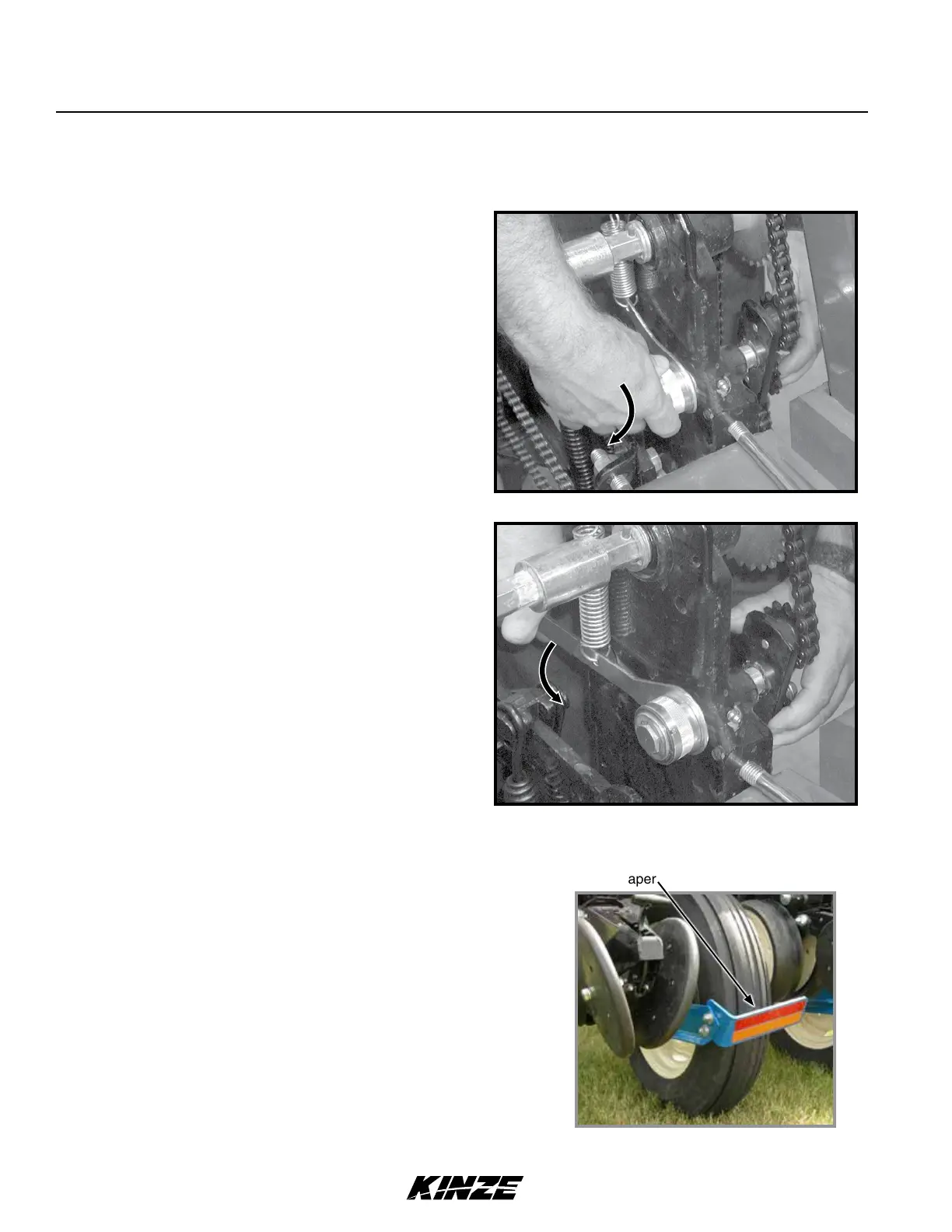

A tire scraper prevents buildup of dirt and mud between wheel
arm assembly and tire.
Adjust scraper so it does not contact tire.
TIRE SCRAPER
WRAP SPRING WRENCH
Chain idlers use wrap spring wrenches to release and adjust transmission chain tension.
Rotate wrap spring wrench knurled collar while rotating
chain idler away from chain to release chain tension.
Rotate chain idler into chain while rotating handle to
tension idler spring.
Release chain tension
Increase chain tension
Tire scraper
Scraper
