Kinze 3000 - Interplant Push Row Unit Clutch Sprocket

TM
Model 3000M0188-01
Rev. 6/11 3-19
Row Unit Operation
INTERPLANT PUSH ROW UNIT CLUTCH SPROCKET
Push row unit clutch sprocket disengages interplant drive from
push row unit drill shaft when only pull row units are used.
DISENGAGE
Rotate knurled collar ¼ turn. Rock drill shaft slightly using a "
wrench to take pressure off of spring loaded pins in clutch to
allow pins to “pop” out, disengaging drive.
ENGAGE
Rotate knurled collar ¼ turn and turn drill shaft with a " wrench
until drive pins engage drive sprocket.

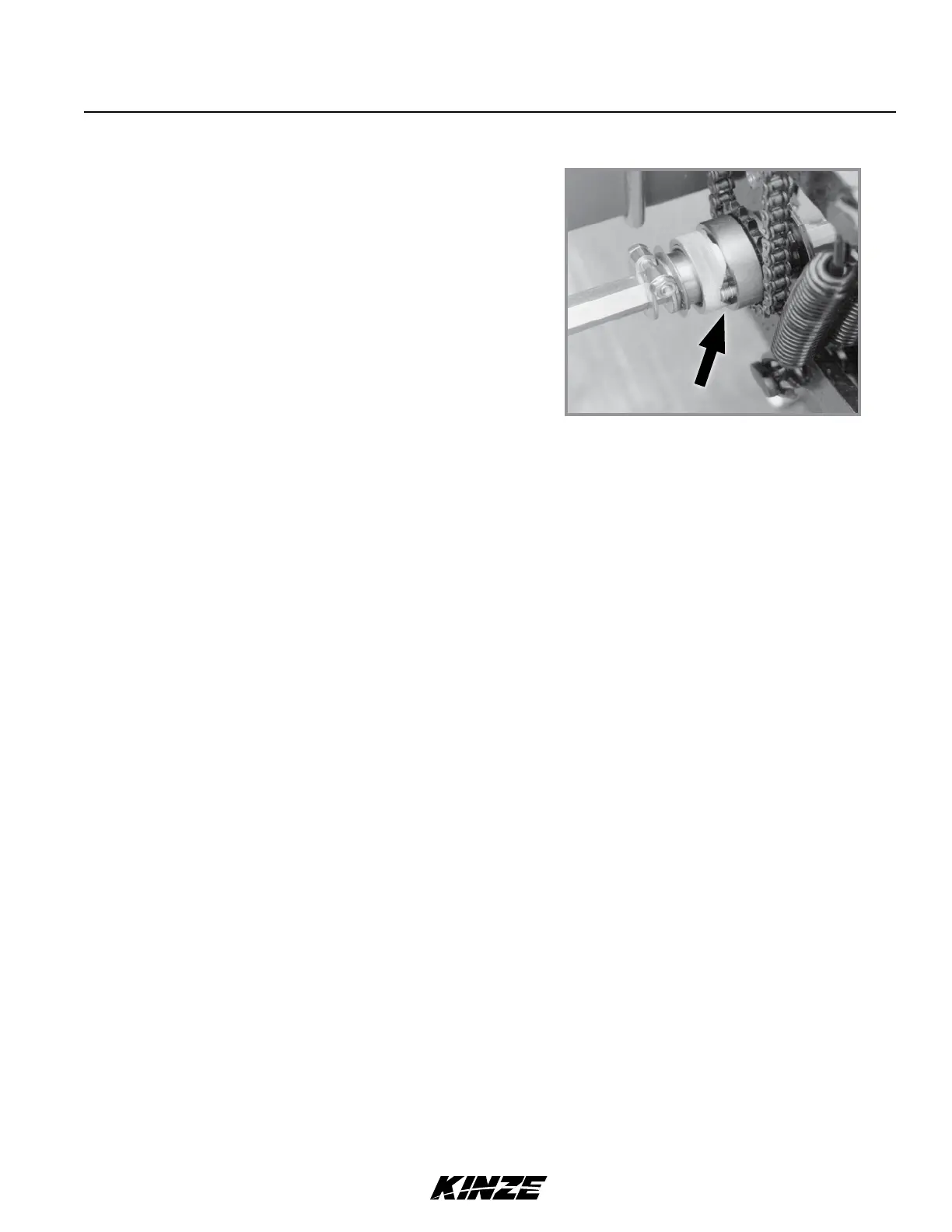

Interplant clutch sprocket
