Kinze 3000 - Hydraulic System Schematic

M0188-01Model 3000
7-34 Rev. 6/11
TM
Lubrication and Maintenance

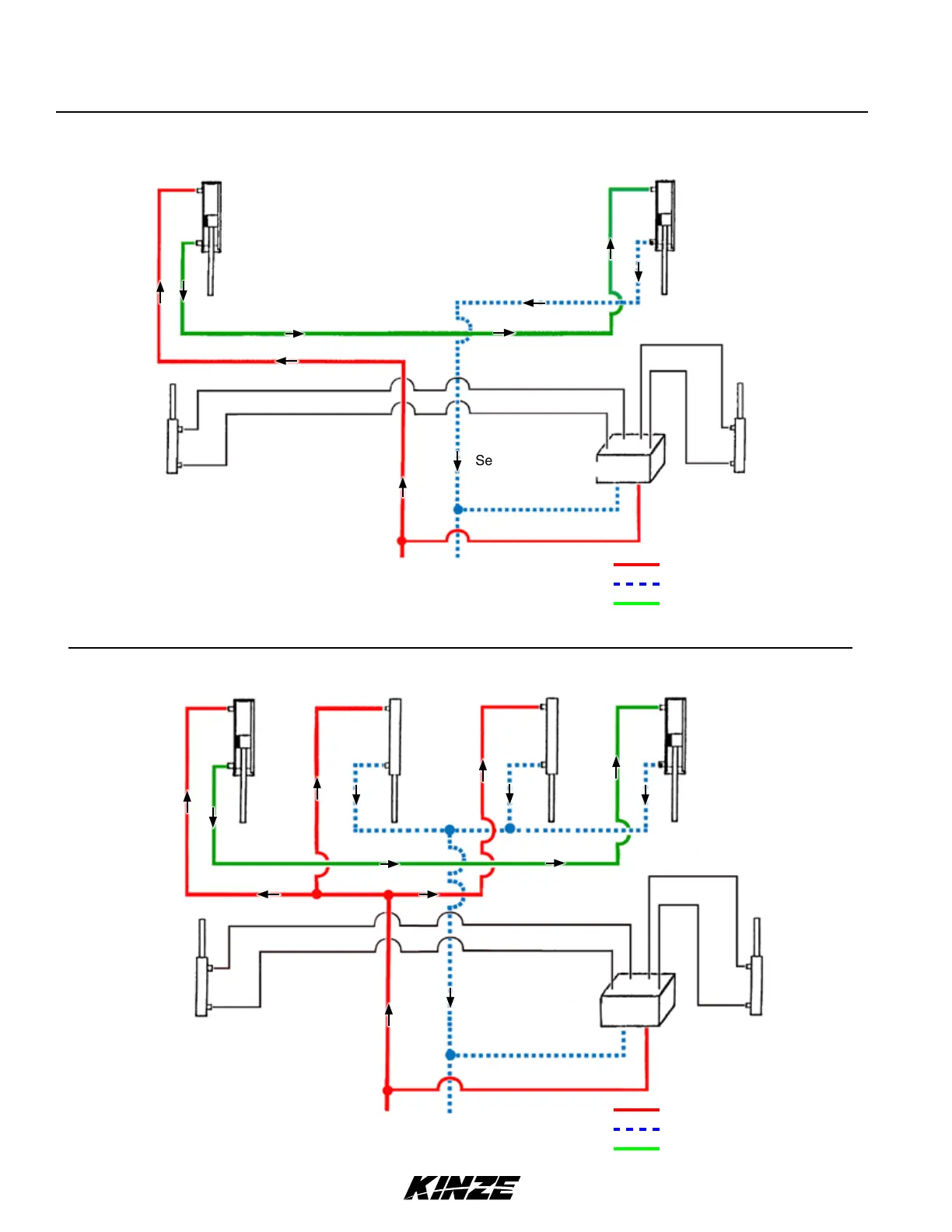

HYDRAULIC SYSTEM SCHEMATIC
Master Cylinder
Assist Cylinder
Assist Cylinder
Slave Cylinder
Sequence Valve
R.H. Marker Cylinder
L.H. Marker Cylinder
6/8 Row - Planter Raising
Master Cylinder
Slave Cylinder
R.H. Marker Cylinder
Sequence Valve
L.H. Marker Cylinder
4 Row - Planter Raising
Red - Pressure
Blue - Return
Green - Master to Slave Pressure
Red - Pressure
Blue - Return
Green - Master to Slave Pressure
