M0188-01Model 3000
7-32 Rev. 6/11
TM
Lubrication and Maintenance

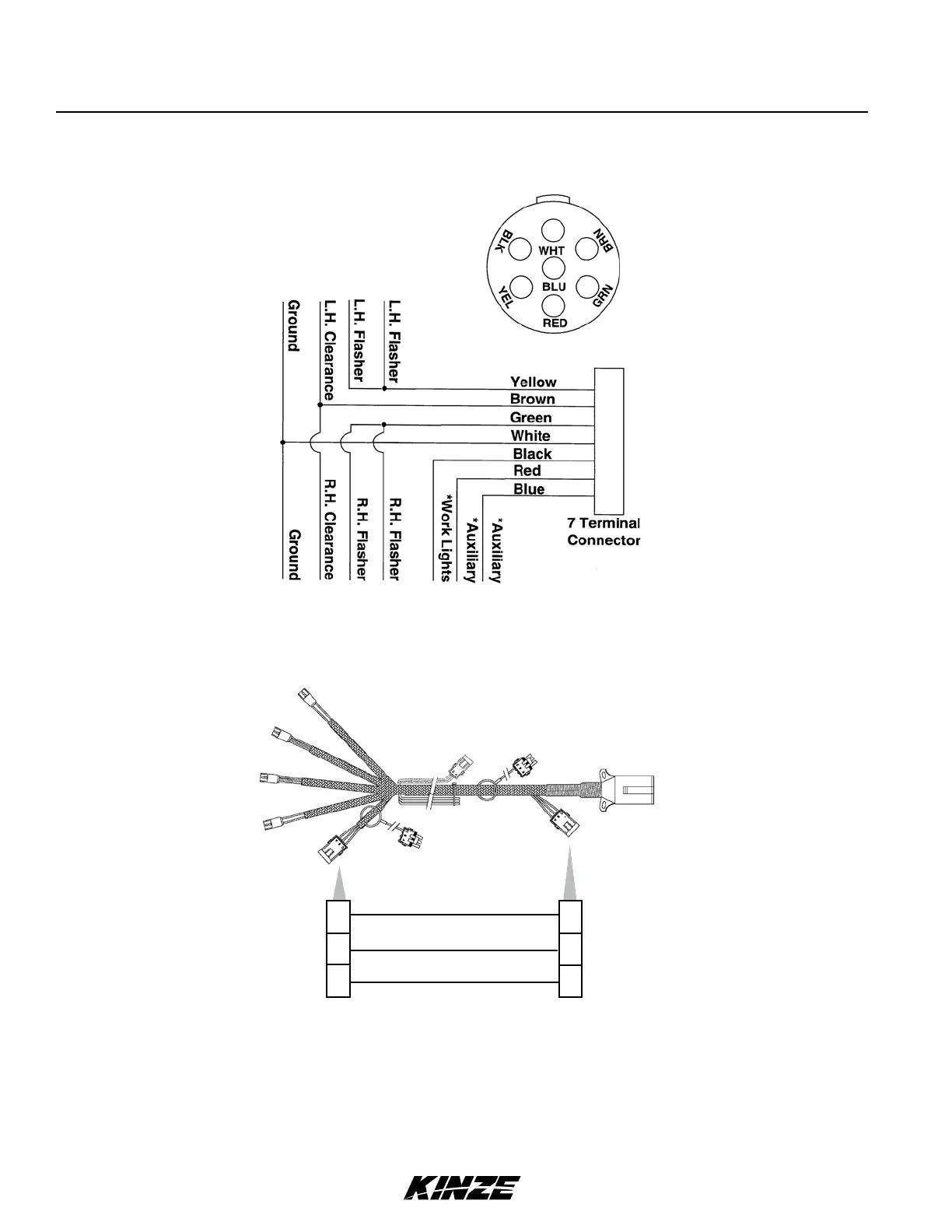

ELECTRICAL WIRING DIAGRAM FOR LIGHT PACKAGE
Light package supplied on Model 3000 planter meets ASABE Standards. For correct wiring harness to be wired into
lights on your tractor, check with tractor manufacturer.
3-Pin Connector 3-Pin Connector
A
C
B
A
C
B
White MONITOR +12V
Green MONITOR DATA
Black
MONITOR GROUND
* Optional customer-supplied auxiliary lights and wires may be wired into existing plug terminals.
To Next Page
