Kinze 3000 - Frame Mounted Coulter

TM
Model 3000M0188-01
Rev. 1/14 7-23
Lubrication and Maintenance

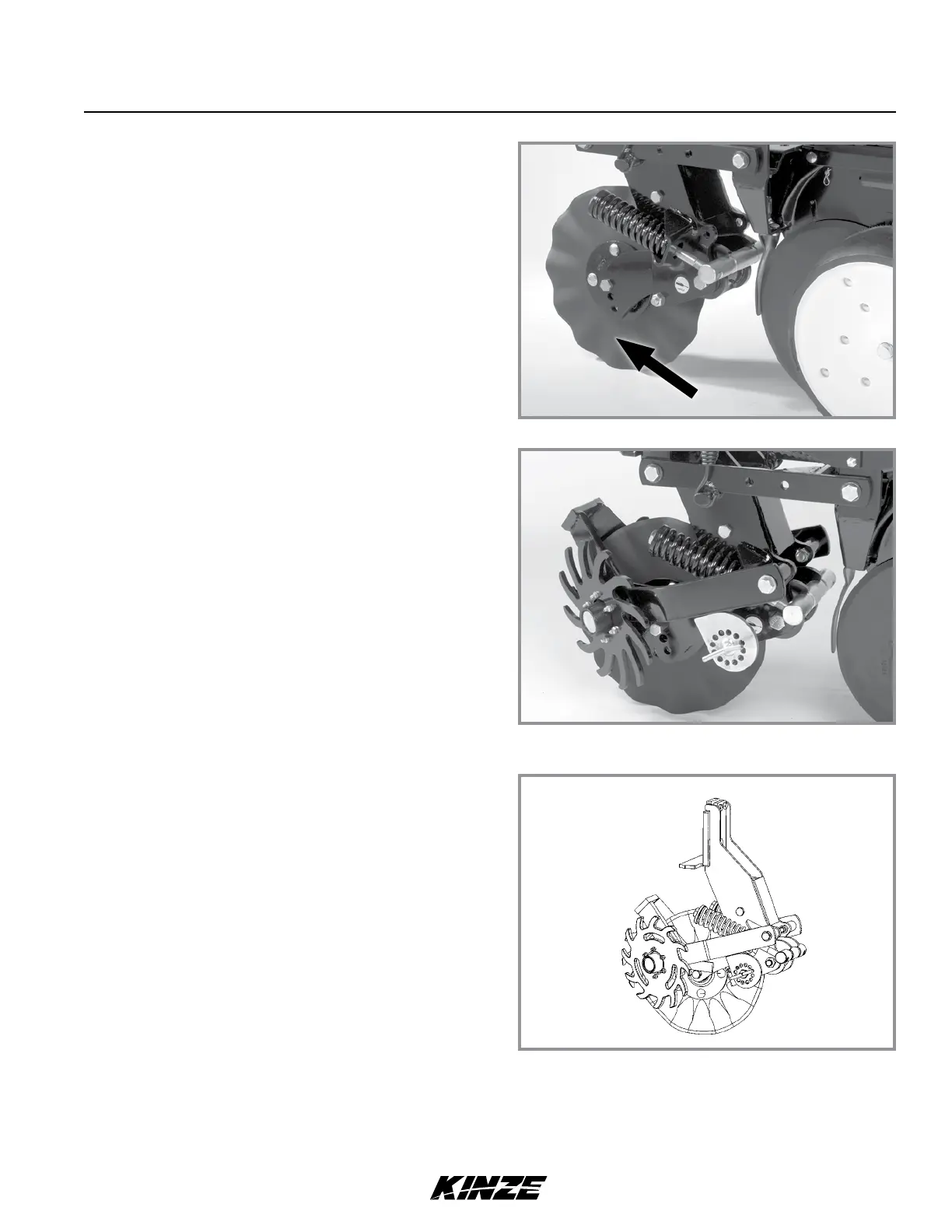

FRAME MOUNTED COULTER
NOTE: Torque " spindle hardware to 120 ft. lbs. (162.7 N-m)
See “Frame Mounted Coulter” in Row Unit Operation
section of this manual for depth and spring adjustment.
Replace 16" diameter coulter blade (1" fluted, 1" bubbled
or ¾" fluted) when worn to 14½" (37 cm) (maximum
allowable wear).
RESIDUE WHEELS (FOR USE WITH
FRAME MOUNTED COULTER)
Wheel hub is equipped with sealed bearings. Replace
bearings if a bearing sounds or feels rough when
wheel is rotated.
STYLE A
STYLE B
