Model 3000M0188-01
Rev. 9/17 2-9
Machine Operation
There are two down pressure springs on each contact drive wheel. Spring tension is factory preset and normally
requires no adjustment.
Basic setting for spring tension is approximately 200 lb (90.72 kg) of down force at tire contact point.
NOTE: Measurement must be taken in planting position with proper tire pressure.
TRANSPORTING PLANTER
• Tow only with farm tractor rated and configured for equipment.
• Know your route and be aware of any obstructions.
• Follow all road and bridge load limit restrictions.
• Never exceed maximum transport towing speed of 20 mph (32 kph).
1. Raise planter to full turn around height.
2. Install safety lockups. See “Safety Lockups” in Machine Operation.
3. Turn on hazard lights.

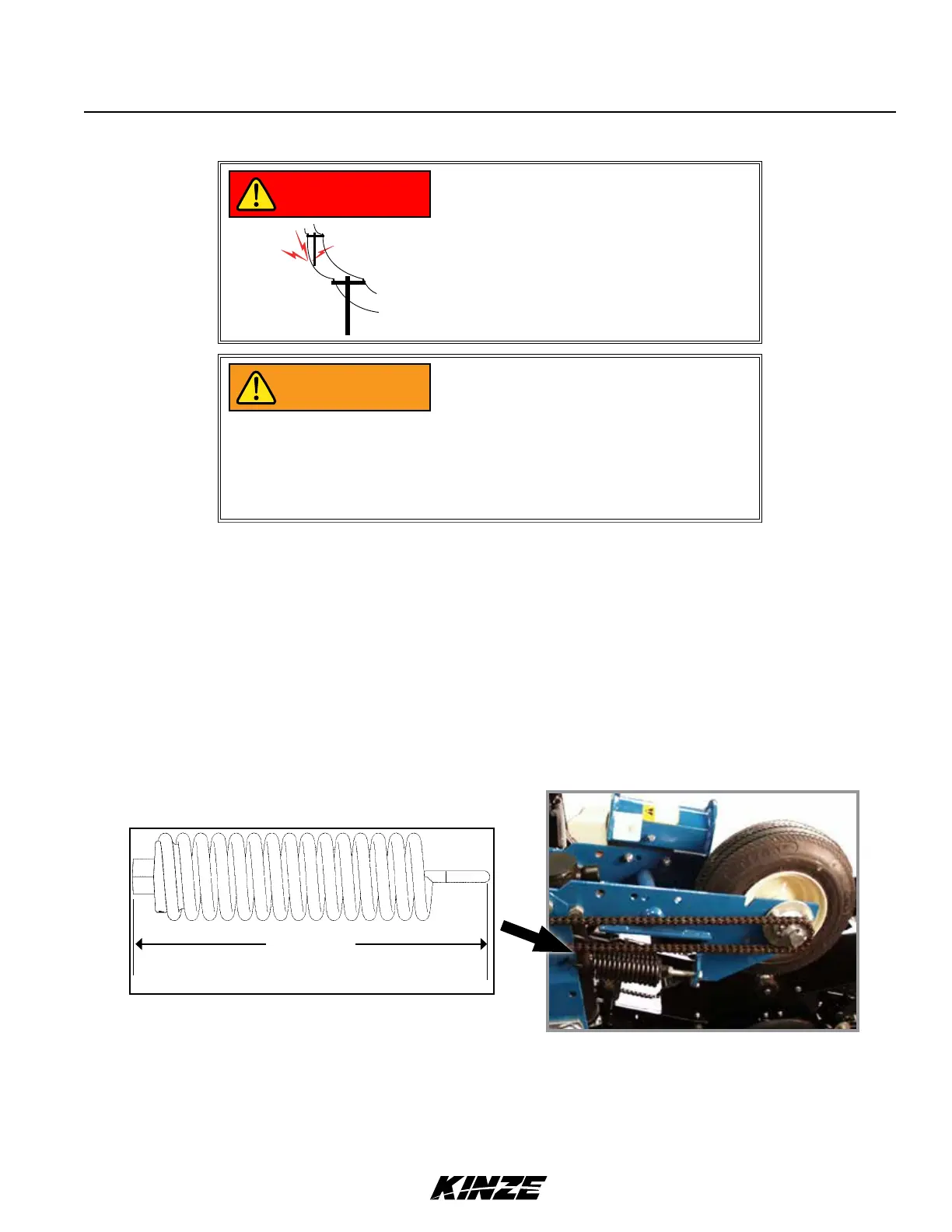

CONTACT DRIVE SPRING ADJUSTMENT
Down pressure spring location
8" (20.3 cm)
Spring length measurement (Factory setting)
Contacting or coming close to power
lines or other high energy sources will
cause death or serious injury.
Keep away from power lines or high
energy sources at all times.
DANGER
All safety/warning lights, reflective
decals, and SMV sign must be in place
and visible before transporting machine
on public roads or death, serious injury,
and damage to property and equipment
may result. Check federal, state/
provincial, and local regulations before
transporting equipment on public roads.
WARNING
