TRACTOR REQUIREMENTS
Consult your dealer for information on horsepower requirements and tractor compatibility. Requirements vary with
planter options, tillage, and terrain.
A 12 volt DC electrical system is required for all 3000 series planters.
One dual remote hydraulic outlet (SCV) is required for machines equipped with a standard single valve hydraulic system.
Two dual remote hydraulic outlets (SCV) are required for machines equipped with the optional dual valve hydraulic system.
TRACTOR PREPARATION AND HOOKUP
1.
Adjust tractor drawbar 13 to 17 inches (33 to 43 cm) above
ground. Adjust drawbar so hitch pin hole is directly below center
line of PTO shaft. Make sure drawbar is in a stationary position.
2.
Back tractor to planter and connect with a minimum ¾" (19 mm)
diameter hitch pin. Secure with a locking or cotter pin.
NOTE: DO NOT install safety chain using clevis mounting
hardware. Safety chain MUST be installed separately.
3. Provided transport safety chain must be used to keep planter
and tractor connected in case of a hitch pin/drawbar failure.
Attach safety chain at an unused clevis mounting hole on the
planter hitch. Torque hardware to 840 ft-lb (1138.8 N-m).

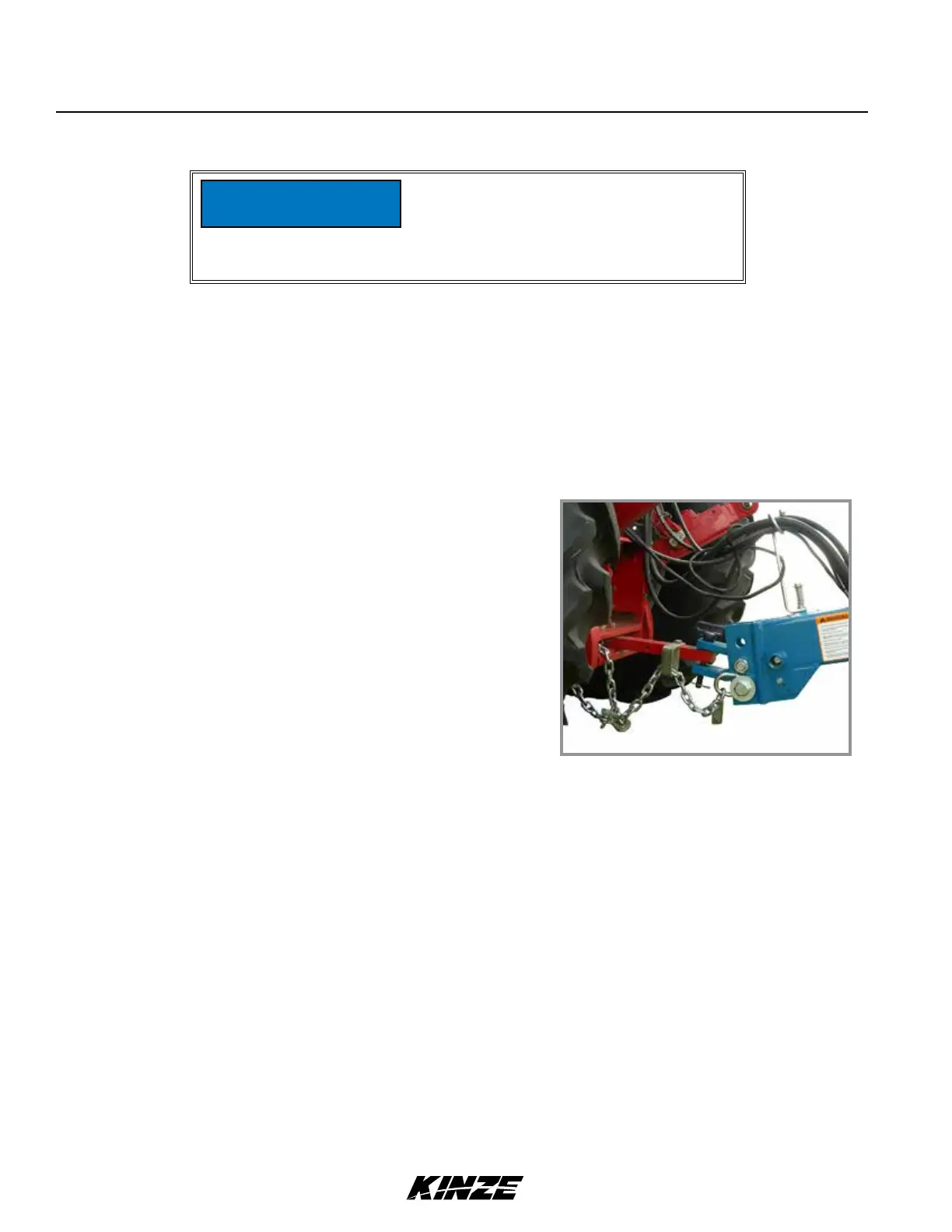

Drawbar and safety chain connection
All Hydraulic Requirements: Minimum
Pressure 2350 PSI (16202.6 kPa);
Maximum Pressure 3000 PSI (20684.2 kPa).
Check tractor hydraulics to ensure that
maximum pressure cannot be exceeded.
