Row markers have a safety lockup pin and hairpin clip located behind each arm. Keep pin in place whenever row
markers are not used.
Model 3000 planters are equipped with a single or optional dual valve hydraulic system to control row markers.
A single valve system lifts a row marker when the planter is raised. Row markers lower on alternate sides each time
planter is lowered. If a planter is raised to cross a waterway, the row marker on opposite side of the one just raised
lowers when planter is lowered back to ground. Stop, raise, and lower planter again to lower marker on side raised
when crossing waterway.
NOTE: Install safety lockup pins If row markers are not used during planting to prevent markers from
lowering.
HYDRAULIC ROW MARKER OPERATION

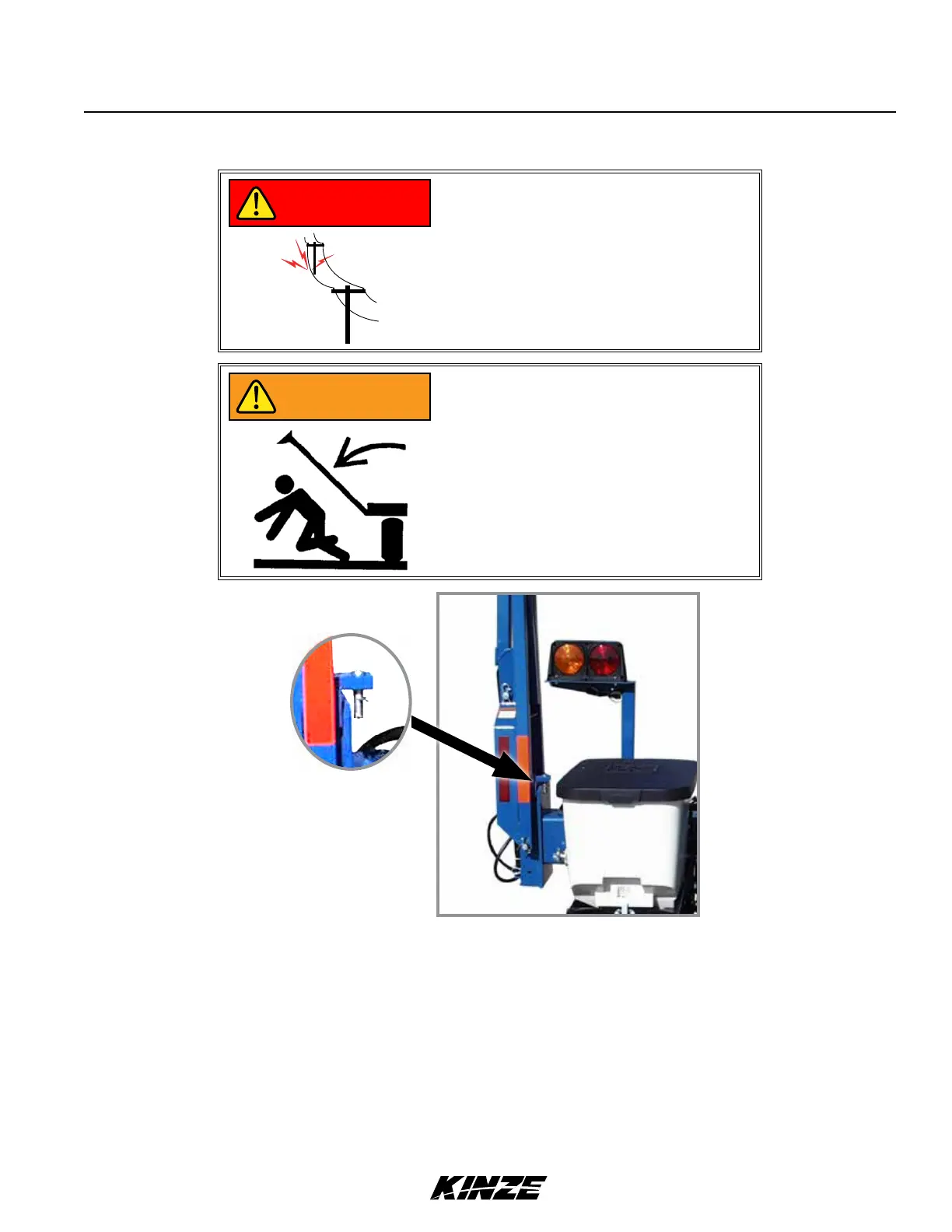

Marker arm safety lockup pin location
Contacting or coming close to power
lines or other high energy sources will
cause death or serious injury.
Keep away from power lines or high
energy sources at all times.
DANGER
Row marker can lower at any time and
could cause death or serious injury. Stay
away from row markers! Install safety
lockup device when not in use.
WARNING
