TM
Model 3000M0188-01
Rev. 1/14 3-3
Row Unit Operation
Eccentric bushings in the wheel arm stop allow for lateral adjustment of covering discs/single press wheel assembly.
Use a ¾" wrench to loosen hardware attaching closing wheel arm to wheel arm stop. Use another ¾" wrench to turn
eccentric bushings until covering discs/single press wheel assembly is aligned with seed trench. Tighten hardware.
Two sets of holes in mounting arm locate covering discs for staggered or side-by-side operation.
Five sets of holes in each disc bracket allow ½" (1 cm) incremental blade depth adjustment.
Slotted holes in disc mount and bracket allow for 0° - 15° blade angle adjustment.
Adjust covering discs on all row units to similar settings.
Check operation of covering discs/single press wheels after adjusting planting depth. Initial press wheel down force
spring setting is 2½" (6 cm) between mounting arm tab and locking nut.
1. Loosen ½" locking nut and turn adjusting bolt in to increase down force or out to decrease down force.
2. Tighten locking nut against spring plug. Adjust all row units to a similar setting.

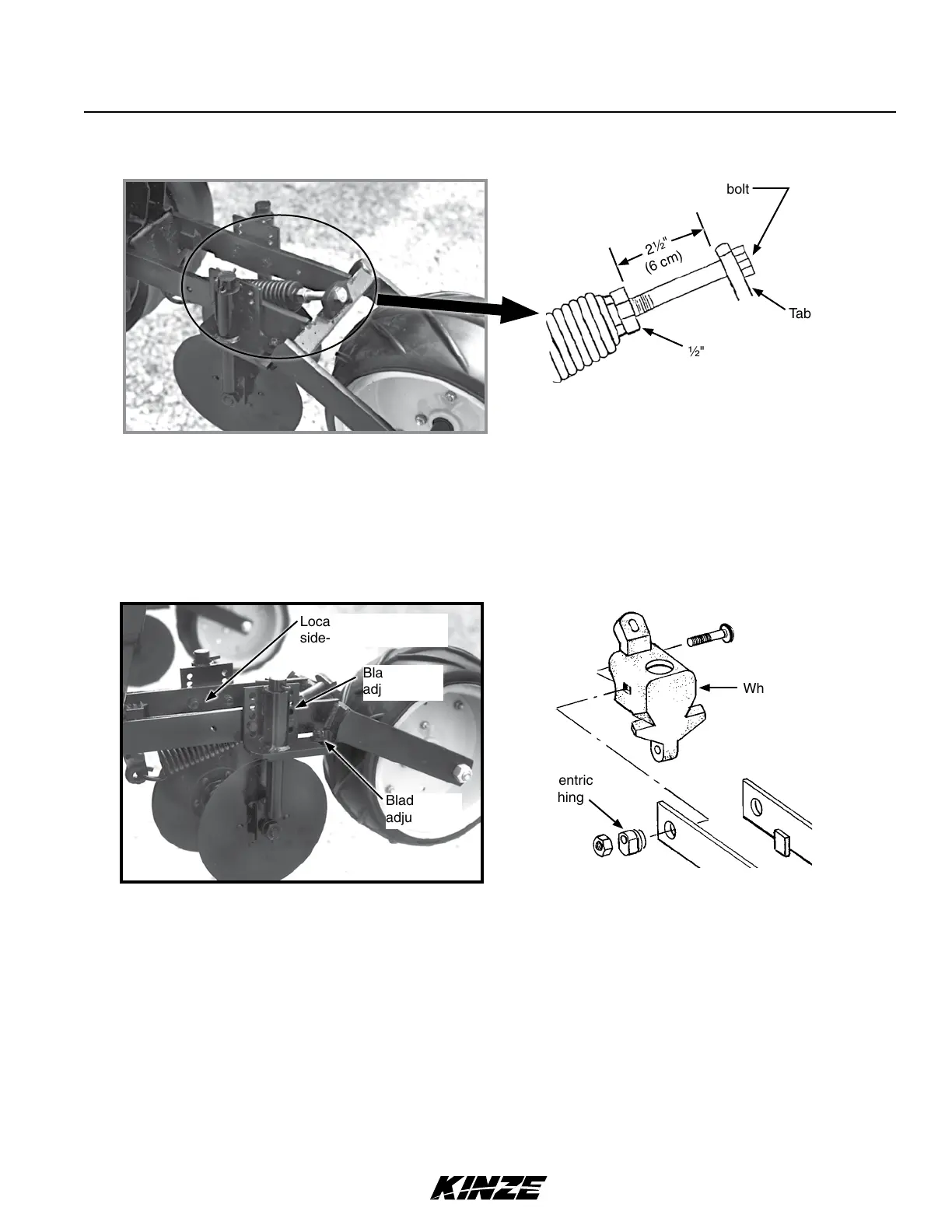

COVERING DISCS/SINGLE PRESS WHEEL ADJUSTMENT
Wheel arm stop
Eccentric
bushing
Press wheel down force adjustment
Locate for staggered or
side-by-side operation
Blade depth
adjustment
Blade angle
adjustment
Covering disc adjustments
½" Locking nut
2½"
(6 cm)
Adjusting bolt
Tab
