Kinze 3000 - Hydraulic System Schematic (with Interplant Self-Leveling Hitch)

TM
Model 3000M0188-01
Rev. 6/11 7-35
Lubrication and Maintenance

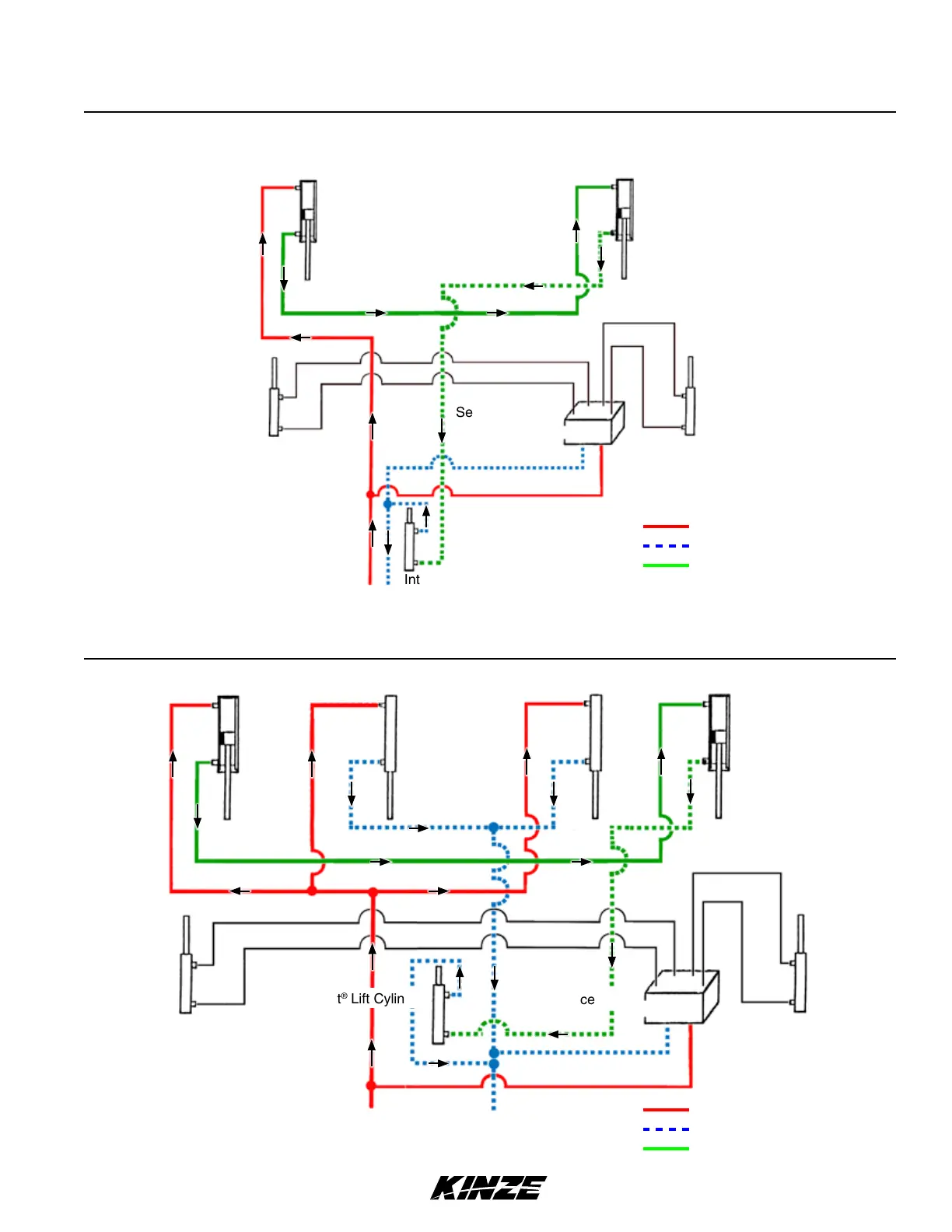

HYDRAULIC SYSTEM SCHEMATIC (WITH INTERPLANT SELF-LEVELING HITCH)
Master Cylinder
Assist Cylinder Assist Cylinder Slave Cylinder
R.H. Marker Cylinder
L.H. Marker Cylinder
Interplant
®
Lift Cylinder
Sequence Valve
6/8 Row - Planter Raising
Master Cylinder
Slave Cylinder
R.H. Marker Cylinder
Sequence Valve
L.H. Marker Cylinder
Interplant
®
Lift Cylinder
4 Row - Planter Raising
Red - Pressure
Blue - Return
Green - Master to Slave Pressure
Red - Pressure
Blue - Return
Green - Master to Slave Pressure
