Lubrication and Maintenance

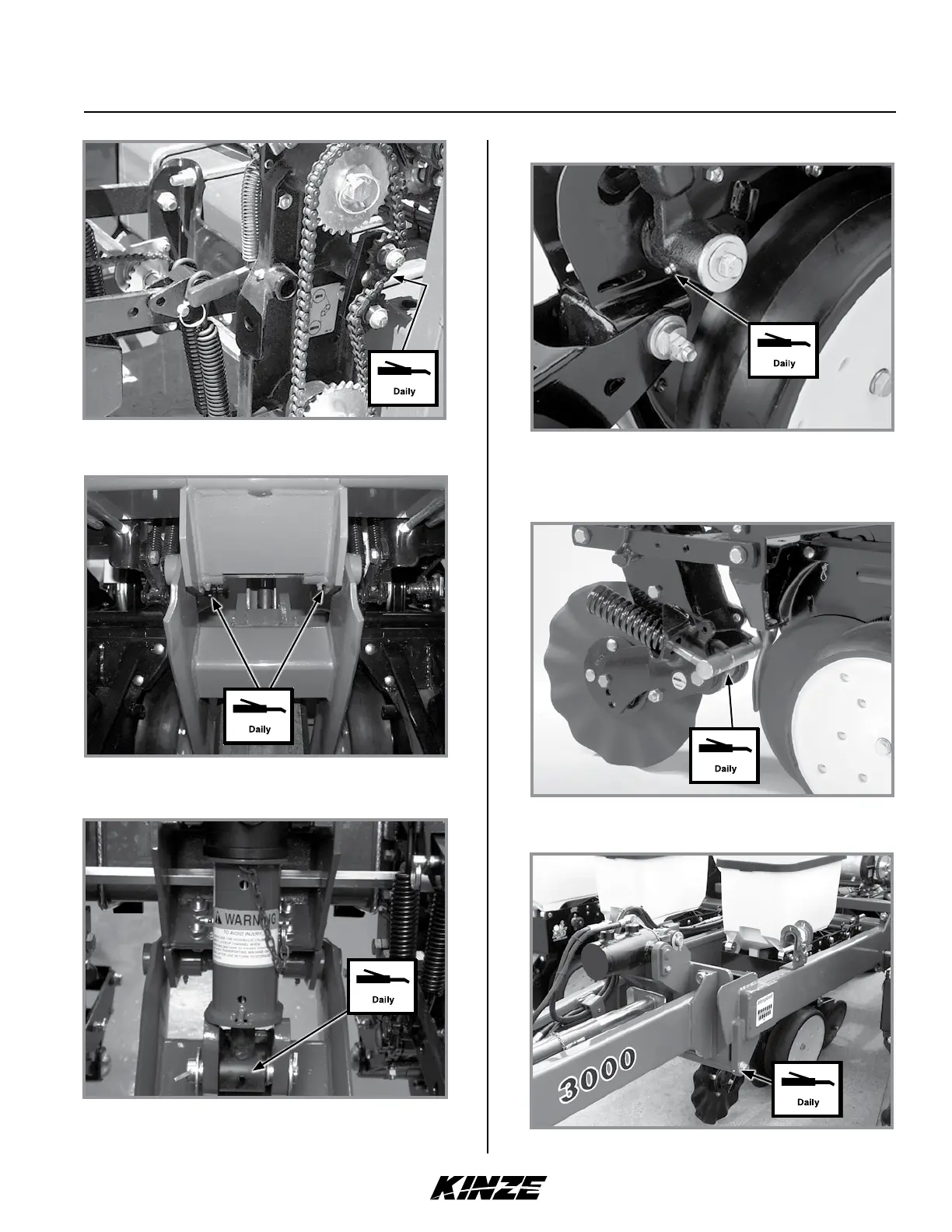

4. Wheel Module Assembly - 2 Per Module
5. Lift Cylinders (Master, Slave And Assist) -
1 Per Cylinder.
Row Unit
Gauge Wheel Arms - 1 Per Arm
(Seals installed with lip facing out to allow grease
to purge dirt from seal. Pump grease into arm until
fresh grease appears between washers and arm.)
Interplant Self-Leveling Hitch Extension - 2
Interplant Attachment
3. Seed Rate Transmission Assembly - 1 (Idler)
Frame Mounted Coulter - 1 Per Arm
To Next Page
