Fertilizer
OPTIONAL SQUEEZE PUMP
Squeeze pump rate of liquid fertilizer application is determined by combination of sprockets on squeeze pump drive
and driven shafts. Make sure sprockets are in alignment, sprocket retaining collars are tight, and chain is properly
tensioned is when changing sprocket combinations. Close all shut-off valves when planter sits overnight or for
extended periods of time. It is also important to close tank valves when servicing on pump or hoses.
NOTE: Delivery rate chart in Rate Chart section of this manual provides approximate application rate only.
Delivery varies with temperature and fertilizer.
Discharge manifold must be repositioned rearward when not in use to prevent hose distortion and prolong hose life.
Discharge manifold must be forward when pump is in operation. Loosen wing nuts and slide manifold forward and
sideways or rearward as required and retighten wing nuts.

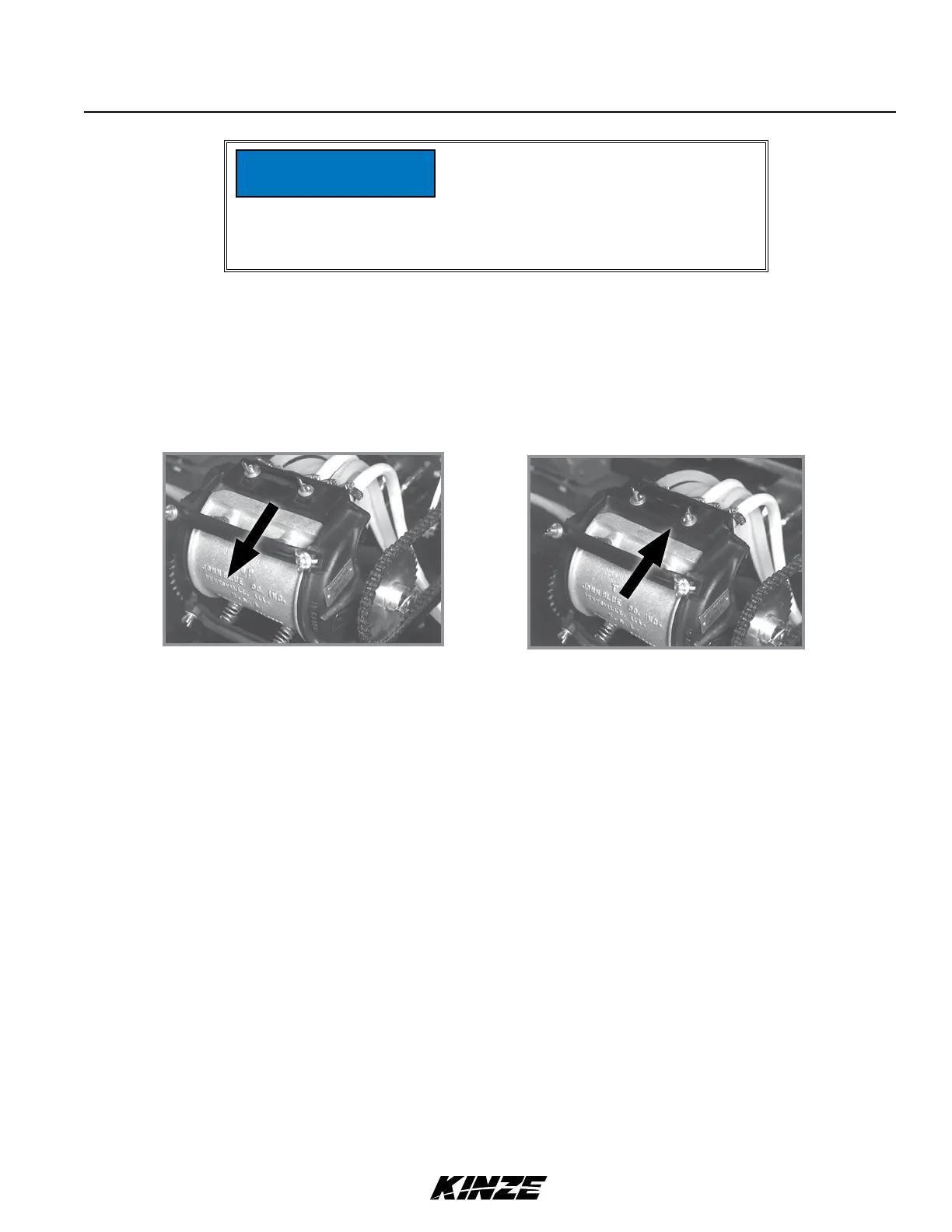

Discharge manifold forward
Discharge manifold rearward
Placing fertilizer too close to seeds
or in excessive amounts can cause
germination or seedling damage.
Check with your fertilizer dealer or
manufacturer for correct amount and
placement.
