M0258-01Model 3500
4-10
Rev. 9/17
TM
Fertilizer
OPTIONAL SQUEEZE PUMP
Squeeze pump rate of liquid fertilizer application is determined by combination of sprockets on squeeze pump drive
and driven shafts. Make sure sprockets are in alignment, sprocket retaining collars are tight, and chain is properly
tensioned is when changing sprocket combinations. Close all shut-off valves when planter sits overnight or for
extended periods of time. It is also important to close tank valves when servicing on pump or hoses.
NOTE: Delivery rate chart in Rate Chart section of this manual provides approximate application rate only.
Delivery varies with temperature and fertilizer.

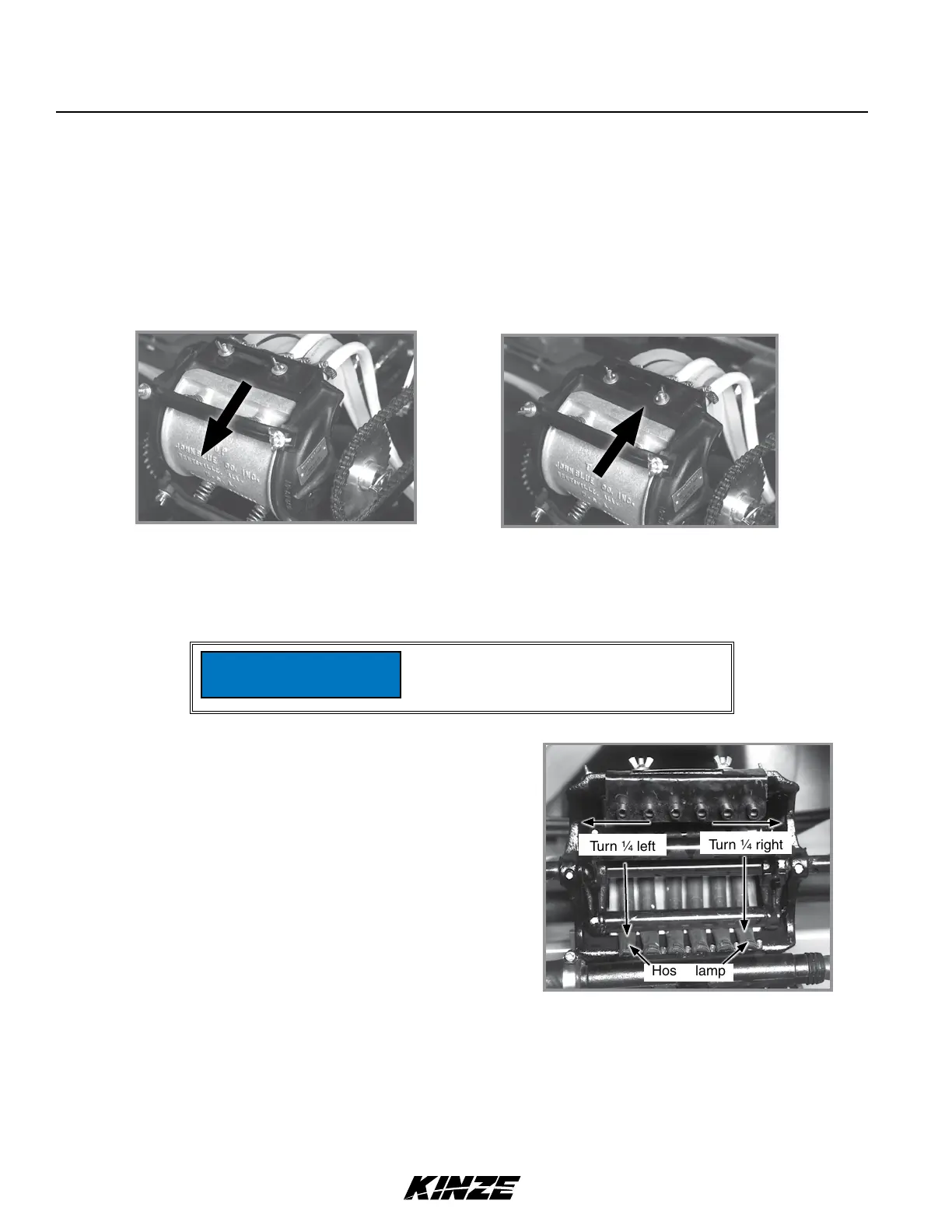

Discharge manifold must be repositioned rearward when not in use to prevent hose distortion and prolong hose life.
Discharge manifold must be forward when pump is in operation. Loosen wing nuts and slide manifold forward and
sideways or rearward as required and retighten wing nuts.
Discharge manifold forward
Discharge manifold rearward
If either end pump hoses run off back plate, loosen hose clamps
on intake manifold and rotate hose as follows:
1. For right hand hose (facing pump from front of planter as
shown) twist hose ¼ turn to right.
2. For left hand hose (facing front of pump) twist hose ¼ turn
to left.
3. Retighten hose clamps.
Turn ¼ right
Hose clamp
Turn ¼ left
Adjusting squeeze pump end hoses
Avoid excessive pressure using quick fill
attachment or rubber plugs installed in
manifold may be forced out.
NOTICE
