83

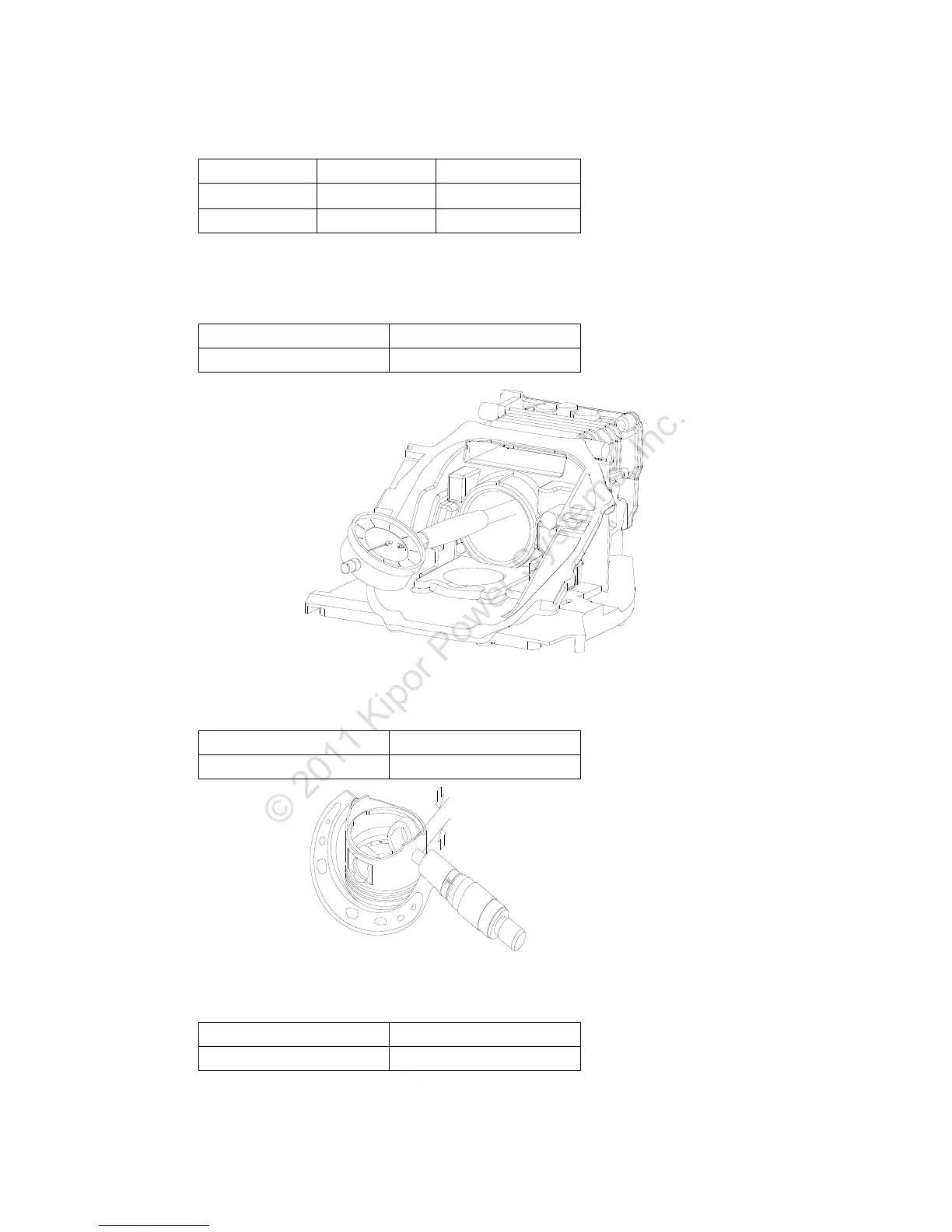

● Clearance between valve rod and valve guide pipe
Standard(mm) Service limit(mm)
Inlet valve 0.020-0.065 0.10
Exhaust valve 0.030-0.075 0.12
● Cylinder inner diameter
Standard(mm) Service limit(mm)
58.000-58.020 58.105
● Piston skirt outer diameter
Standard(mm) Service limit(mm)
57.960-57.980 57.850
10mm
● Clearance between piston and cylinder
Standard(mm) Service limit(mm)
0.020-0.042 0.120
