2-6
3. To convert the broil burner for use with
L.P. gas:
a)Pull the range out of its mounting loca-
tion so that you can access the rear of
the unit.
b)Remove the three screws from the rear
panel and remove the panel.
4. To convert the bake burner for use with
L.P. gas:
a)Remove the storage drawer.
b)Use a 1/2″ open-end wrench and turn
the bake burner orifice hood down snug
onto the pin (approximately 2-1/2 turns).
DO NOT OVERTIGHTEN THE ORI-
FICE. The burner flame cannot be prop-
erly adjusted if this conversion is not
made.
Rear Panel
2 Screws
Screw

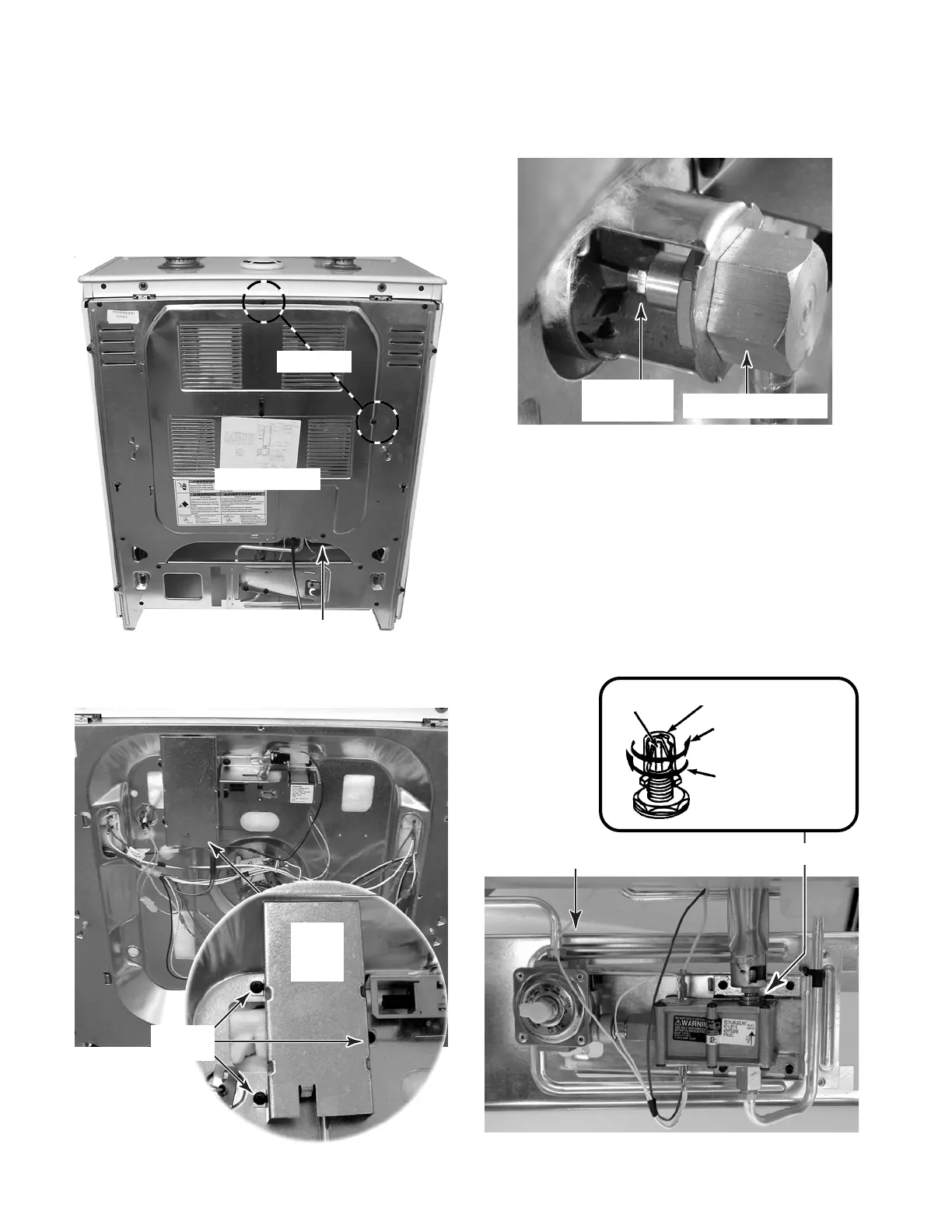

c) Remove the three screws from the broil
tube cover and remove the cover.
Screws
d)Remove the orifice spud #54 from the
broil burner gas line connector, and re-
place it with L.P. orifice spud #65.
Gas Line Connector
Broil Orifice
Spud
Broil
Tube
Cover
Pin
Orifice
Natural Gas:
Increases Flame
L.P. Gas:
Increases Flame
Bake Burner Orifice Hood
Back Of Storage
Drawer Area
To Next Page
