4-8

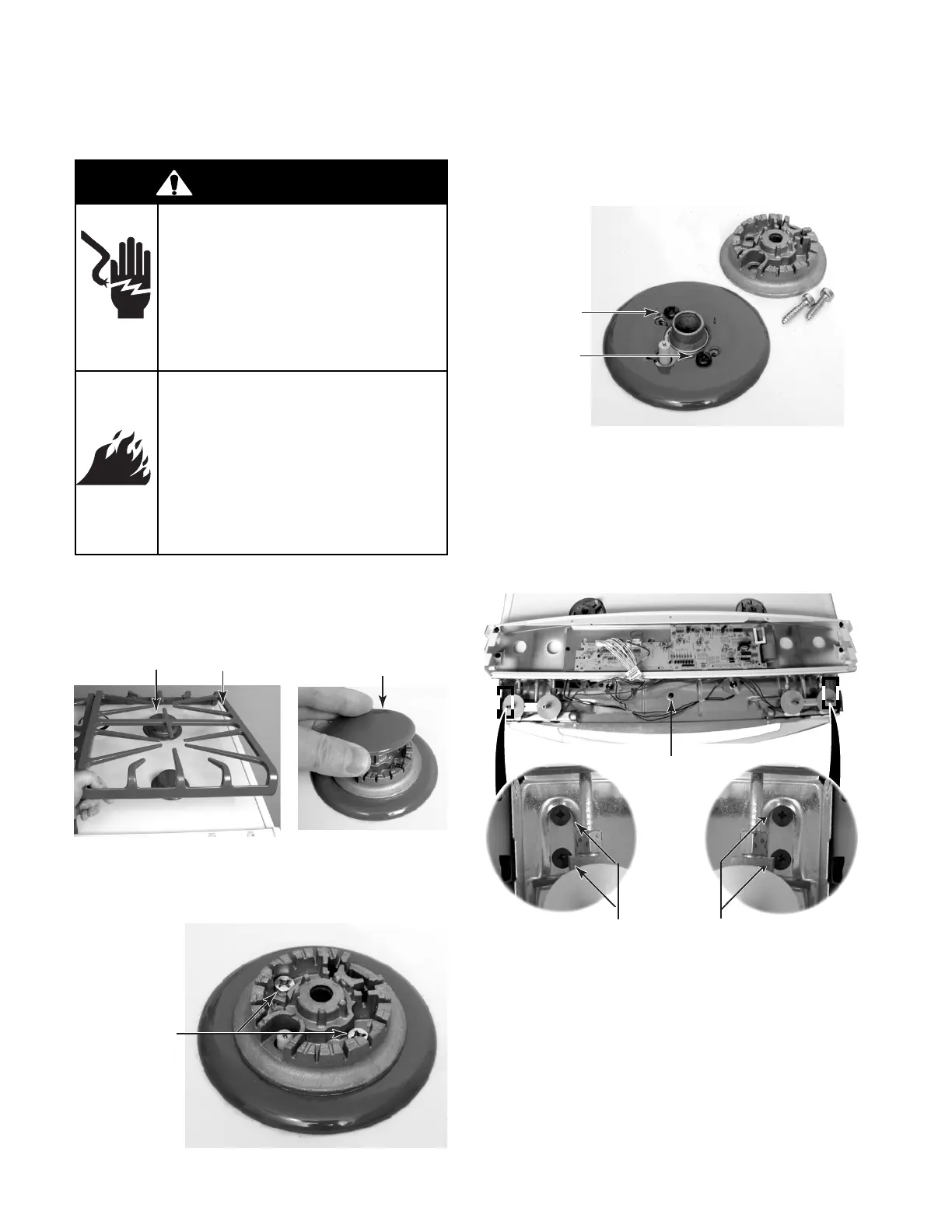

REMOVING THE COOKTOP BIMETAL
& A SURFACE BURNER / IGNITOR
1. Turn off gas supply and disconnect power
to the range.
2. Remove the grates and burner caps.
Grate
Burner Cap
3. Remove the two screws from each of the
burner heads and lift the heads off the
cooktop.
Burner Head
& 2 Screws
Decorative
Cover &
Screws
4. Remove the screws from the decorative
cover and remove the cover.
5. Remove the control panel from its sub-
chassis, (see page 4-2 for the proce-
dure), and rotate it forward onto the cooktop
glass.
6. Remove the five screws and the flat washer
from the control panel subchassis.
Surface Burner
Screw & Flatwasher
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connec-
tions and replace all parts
and panels before operating.
Failure to do so can result in
explosion, fire or other injury.
Left & Right Subchassis Screws
To Next Page
