4-18

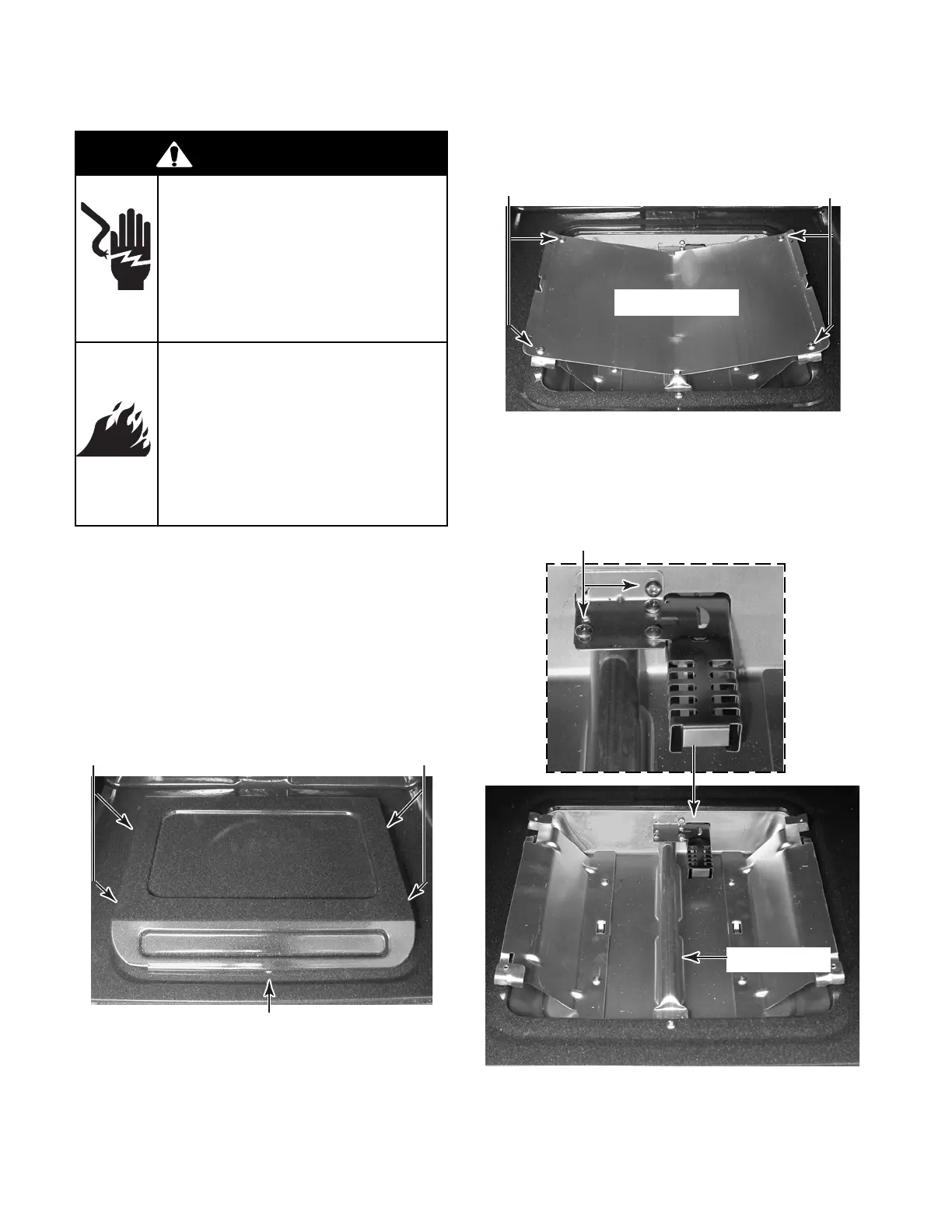

REMOVING THE BAKE BURNER & IGNITOR
1. Turn off gas supply and disconnect power
to the range.
2. Remove the storage drawer from the unit.
3. Open the oven door and remove the racks
from inside the oven.
4. Remove the four screws from the bake
burner cover and lift the cover off the flame
spreader.
5. Remove the four screws from the flame
spreader and remove the spreader.
Bake Burner Cover
2 Screws
2 Screws
6. To remove the bake burner:
a) Remove the two screws from the bake
burner ignitor bracket, and remove the
bracket and ignitor from the burner.
2 Screws
2 Screws
Flame Spreader
Bake Burner
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connec-
tions and replace all parts
and panels before operating.
Failure to do so can result in
explosion, fire or other injury.
Bake Burner Ignitor Bracket Screws
To Next Page
