4-1

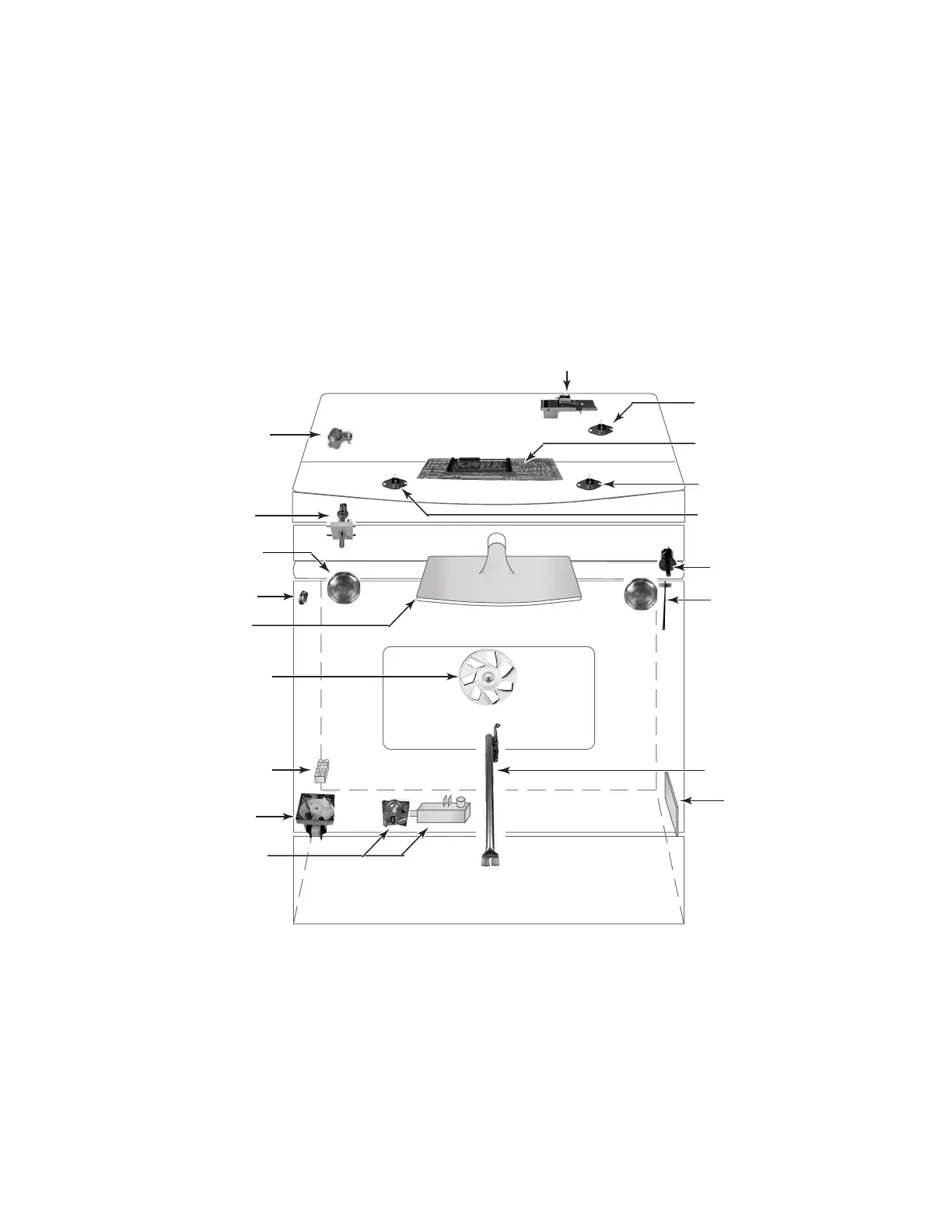

COMPONENT LOCATIONS
This section instructs you on how to service each component inside the gas range. The gas range
components and their locations are shown below.
COMPONENT ACCESS
Door Switch
Oven Light
Electronic Oven Control
Surface Burner /
Ignitor
Door Latch Assembly
Oven Temperature
Sensor
Meat Probe Jack
Ambient Bimetal
Switch
Gas Valve /
Ignition Switch
Spark Module
Convection
Fan Motor
Power Supply
Board
Gas Distribution Valve
& Safety Valve
Cooling Fan Motor
Cooling Fan
Bimetal Switch
Broil Burner
& Ignitor
Bake Burner
& Ignitor
Cooktop Bimetal
