5-6
Refer to pages 4-16 and 4-18 for the proce-
dures for servicing the broil and bake ignitors.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect one of the broil or bake ignitor
wires from the wire harness.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
ignitor terminals. The meter should indi-
cate between 85 and 95 Ω.

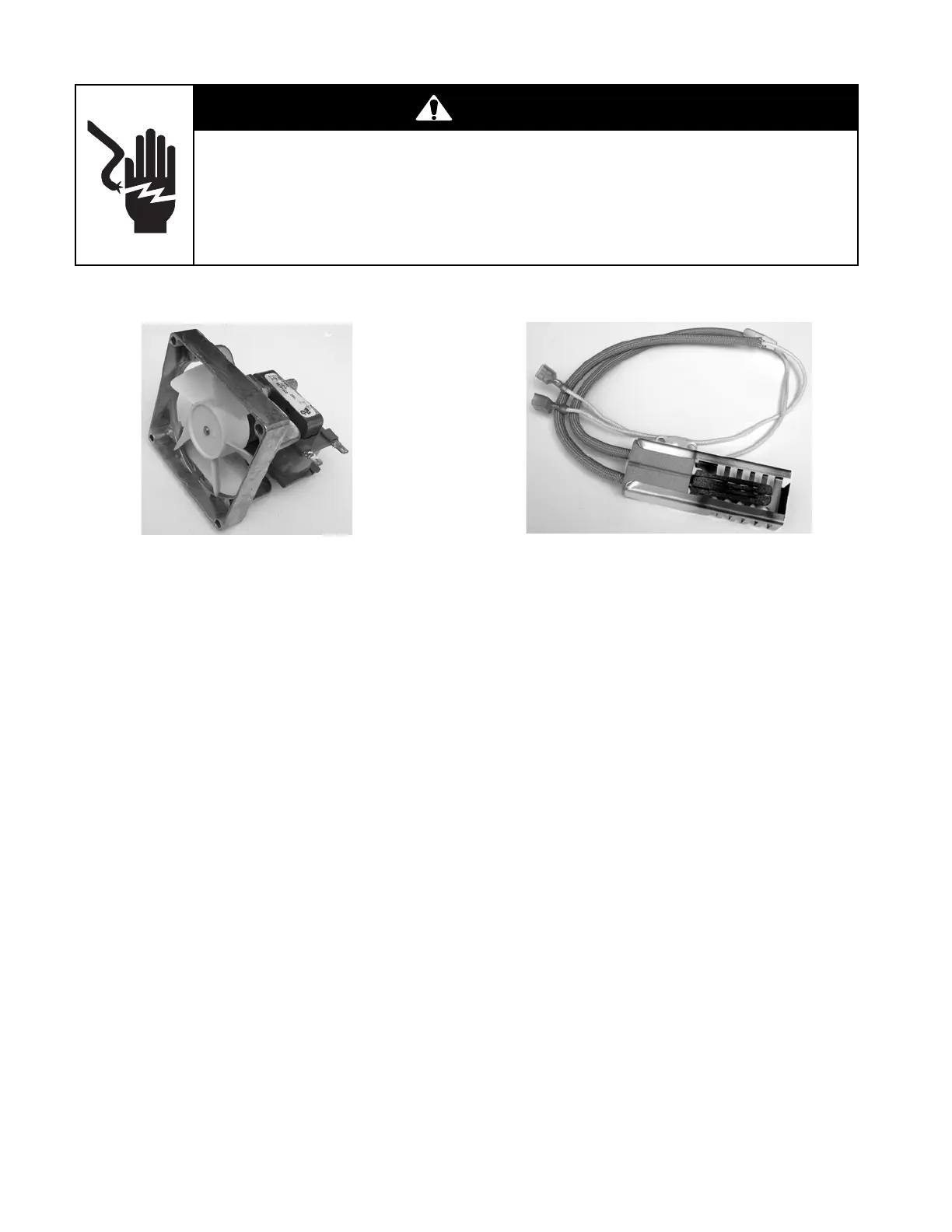

BROIL & BAKE IGNITORS
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
COOLING FAN MOTOR
Refer to page 4-24 for the procedure for servic-
ing the cooling fan motor.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect one of the wires from the cool-
ing fan motor.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
cooling fan motor terminals. The meter
should indicate between 55 and 75 Ω.
